Rear bumper lamp bulb holder failure

REAR BUMPER LAMP BULB HOLDER FAILURE

Model

Discovery

Affected vehicles

081991 to 117884

Date

1995-08-09

Reference

09/08/95

Bulletin text

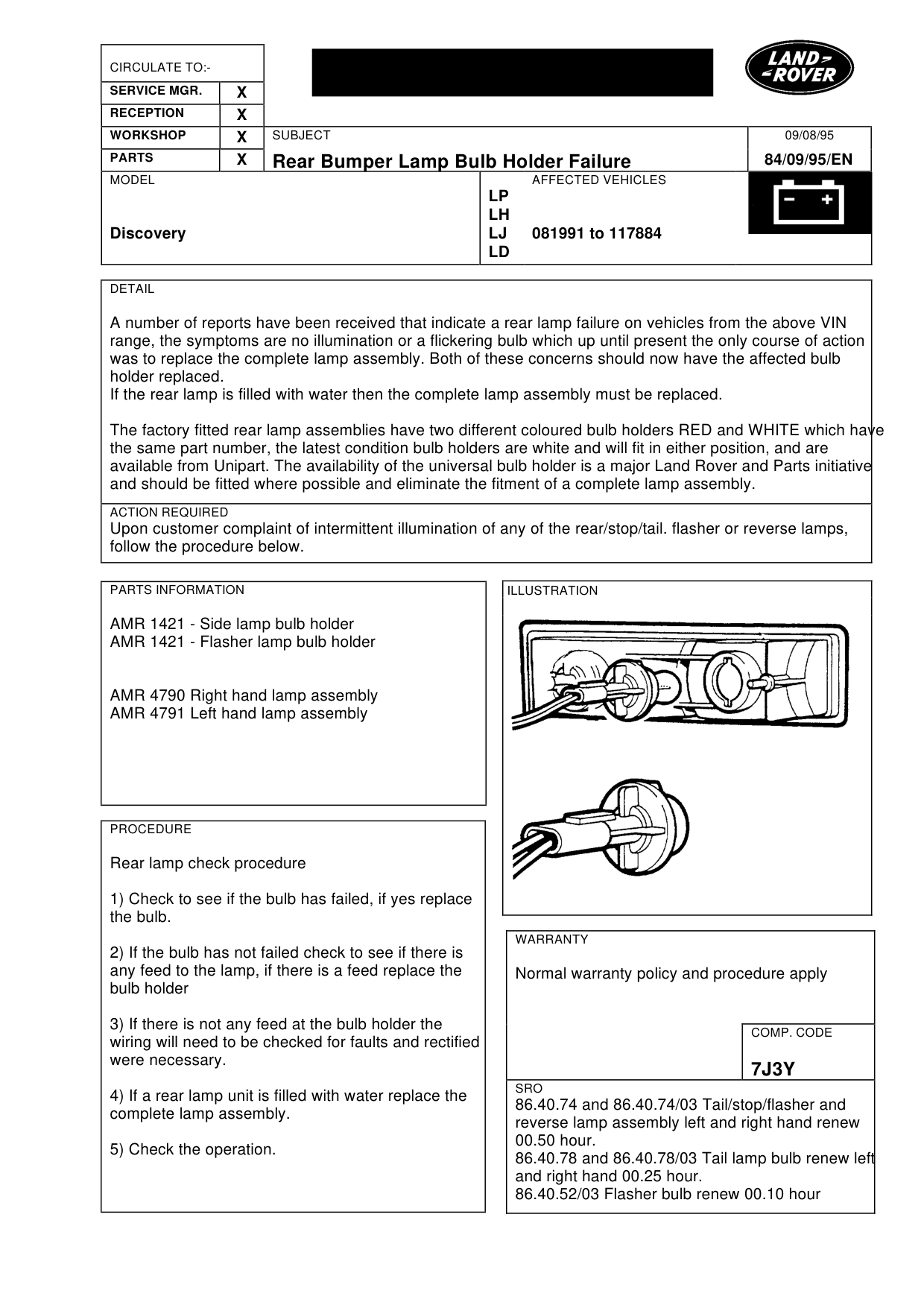

Rear Bumper Lamp Bulb Holder Failure

MODEL

Discovery

DETAIL

A number of reports have been received that indicate a rear lamp failure on vehicles from the above VIN range, the symptoms are no illumination or a flickering bulb which up until present the only course of action was to replace the complete lamp assembly. Both of these concerns should now have the affected bulb holder replaced. If the rear lamp is filled with water then the complete lamp assembly must be replaced.

The factory fitted rear lamp assemblies have two different coloured bulb holders RED and WHITE which have the same part number, the latest condition bulb holders are white and will fit in either position, and are available from Unipart. The availability of the universal bulb holder is a major Land Rover and Parts initiative and should be fitted where possible and eliminate the fitment of a complete lamp assembly.

ACTION REQUIRED

Upon customer complaint of intermittent illumination of any of the rear/stop/tail. flasher or reverse lamps, follow the procedure below.

PARTS INFORMATION

AMR 1421 - Side lamp bulb holder AMR 1421 - Flasher lamp bulb holder

AMR 4790 Right hand lamp assembly AMR 4791 Left hand lamp assembly

PROCEDURE

Rear lamp check procedure

1) Check to see if the bulb has failed, if yes replace the bulb.

2) If the bulb has not failed check to see if there is any feed to the lamp, if there is a feed replace the bulb holder

3) If there is not any feed at the bulb holder the wiring will need to be checked for faults and rectified were necessary.

4) If a rear lamp unit is filled with water replace the complete lamp assembly.

5) Check the operation.

09/08/95

84/09/95/EN

AFFECTED VEHICLES

LP LH LJ 081991 to 117884 LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

7J3Y

SRO

86.40.74 and 86.40.74/03 Tail/stop/flasher and reverse lamp assembly left and right hand renew 00.50 hour. 86.40.78 and 86.40.78/03 Tail lamp bulb renew left and right hand 00.25 hour. 86.40.52/03 Flasher bulb renew 00.10 hour
