SRS air bag harness-sensors

SRS AIR BAG HARNESS-SENSORS

Model

Range Rover Discovery

Affected vehicles

All Range Rover derivatives fitted with SRS from LH 647645 All Discovery derivatives fitted with SRS from LJ 081991

Date

1994-03-30

Reference

30/03/94

Bulletin text

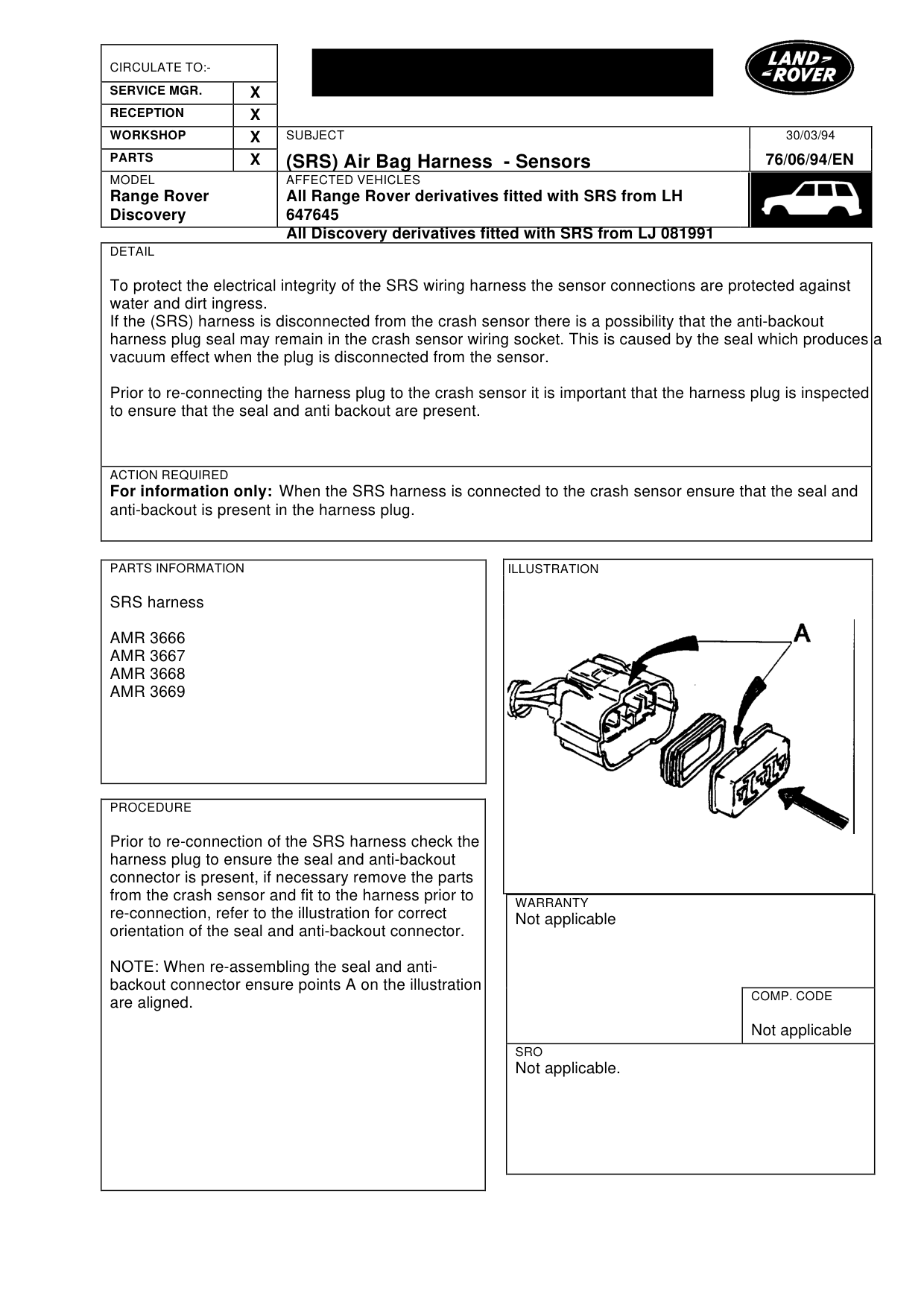

(SRS) Air Bag Harness - Sensors

MODEL AFFECTED VEHICLES

Range Rover All Range Rover derivatives fitted with SRS from LH Discovery 647645 All Discovery derivatives fitted with SRS from LJ 081991

DETAIL

To protect the electrical integrity of the SRS wiring harness the sensor connections are protected against water and dirt ingress. If the (SRS) harness is disconnected from the crash sensor there is a possibility that the anti-backout harness plug seal may remain in the crash sensor wiring socket. This is caused by the seal which produces a vacuum effect when the plug is disconnected from the sensor.

Prior to re-connecting the harness plug to the crash sensor it is important that the harness plug is inspected to ensure that the seal and anti backout are present.

ACTION REQUIRED

For information only: When the SRS harness is connected to the crash sensor ensure that the seal and anti-backout is present in the harness plug.

PARTS INFORMATION

SRS harness

AMR 3666 AMR 3667 AMR 3668 AMR 3669

PROCEDURE

Prior to re-connection of the SRS harness check the harness plug to ensure the seal and anti-backout connector is present, if necessary remove the parts from the crash sensor and fit to the harness prior to re-connection, refer to the illustration for correct orientation of the seal and anti-backout connector.

NOTE: When re-assembling the seal and antibackout connector ensure points A on the illustration are aligned.

30/03/94

76/06/94/EN

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable.
