SRS warning lamp illuminated

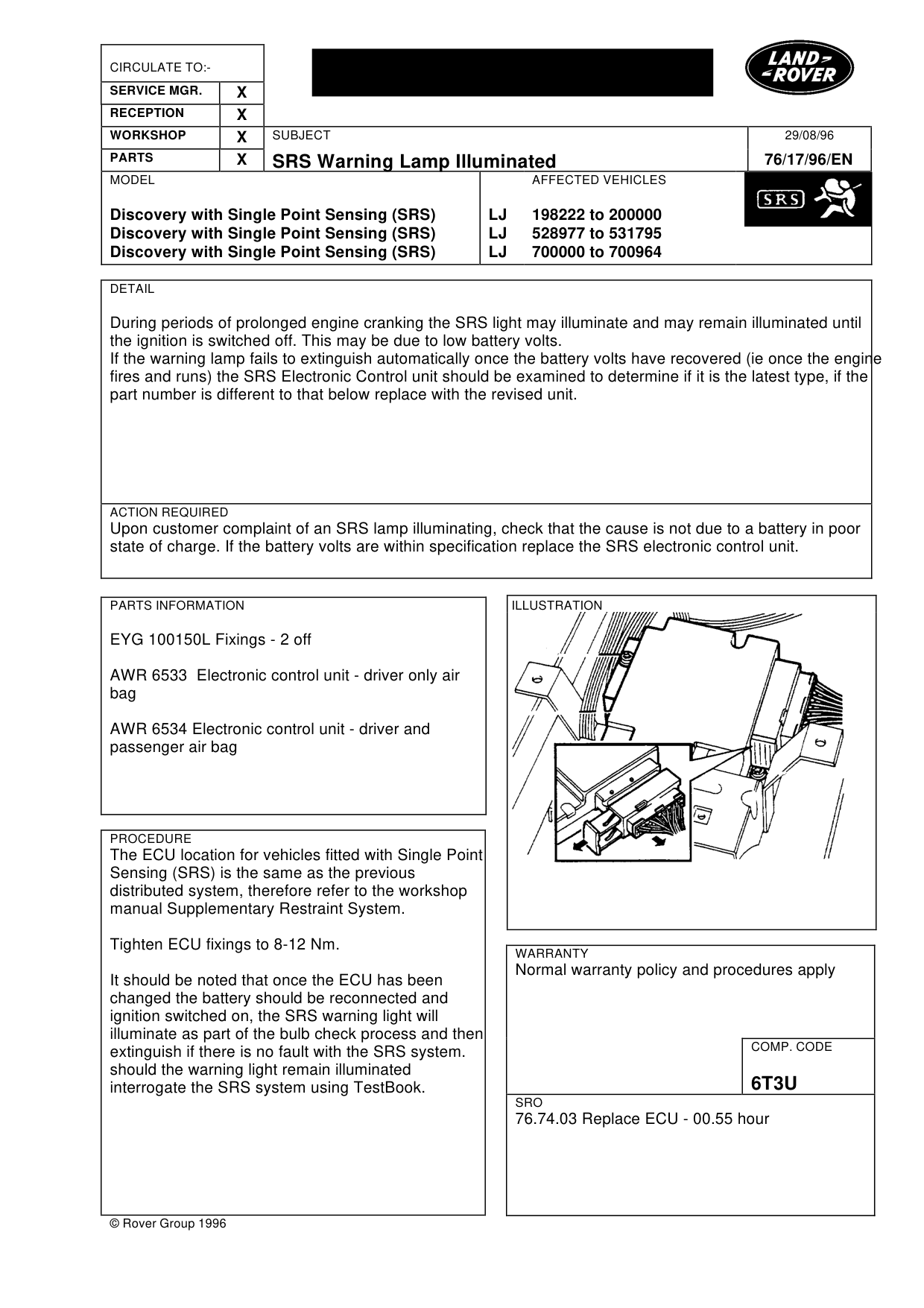

SRS WARNING LAMP ILLUMINATED

Model

Discovery with Single Point Sensing (SRS) Discovery with Single Point Sensing (SRS) Discovery with Single Point Sensing (SRS) LJ LJ LJ

Affected vehicles

198222 to 200000 528977 to 531795 700000 to 700964

Date

1996-08-29

Reference

29/08/96

Bulletin text

SRS Warning Lamp Illuminated

MODEL

Discovery with Single Point Sensing (SRS) Discovery with Single Point Sensing (SRS) Discovery with Single Point Sensing (SRS)

DETAIL

During periods of prolonged engine cranking the SRS light may illuminate and may remain illuminated until the ignition is switched off. This may be due to low battery volts. If the warning lamp fails to extinguish automatically once the battery volts have recovered (ie once the engine fires and runs) the SRS Electronic Control unit should be examined to determine if it is the latest type, if the part number is different to that below replace with the revised unit.

ACTION REQUIRED

Upon customer complaint of an SRS lamp illuminating, check that the cause is not due to a battery in poor state of charge. If the battery volts are within specification replace the SRS electronic control unit.

PARTS INFORMATION

EYG 100150L Fixings - 2 off

AWR 6533 Electronic control unit - driver only air bag

AWR 6534 Electronic control unit - driver and passenger air bag

PROCEDURE

The ECU location for vehicles fitted with Single Point Sensing (SRS) is the same as the previous distributed system, therefore refer to the workshop manual Supplementary Restraint System.

Tighten ECU fixings to 8-12 Nm.

It should be noted that once the ECU has been changed the battery should be reconnected and ignition switched on, the SRS warning light will illuminate as part of the bulb check process and then extinguish if there is no fault with the SRS system. should the warning light remain illuminated interrogate the SRS system using TestBook.

© Rover Group 1996

29/08/96

76/17/96/EN

AFFECTED VEHICLES

LJ 198222 to 200000 LJ 528977 to 531795 LJ 700000 to 700964

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

6T3U

SRO

76.74.03 Replace ECU - 00.55 hour
