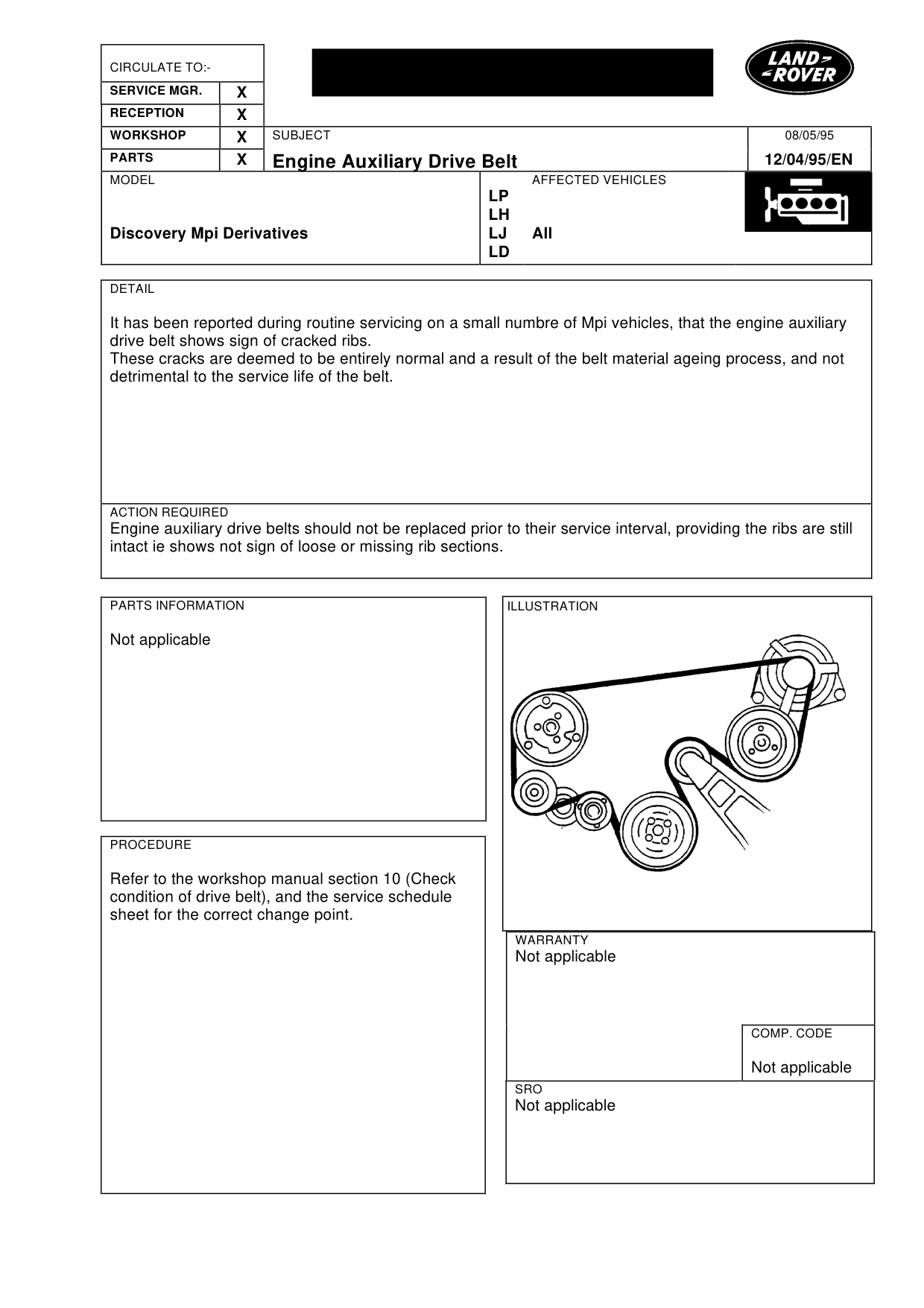

Engine auxiliary drive belt

ENGINE AUXILIARY DRIVE BELT

Model

Discovery Mpi Derivatives

Affected vehicles

All

Date

1995-05-08

Reference

08/05/95

Bulletin text

Engine Auxiliary Drive Belt

MODEL

Discovery Mpi Derivatives

DETAIL

It has been reported during routine servicing on a small numbre of Mpi vehicles, that the engine auxiliary drive belt shows sign of cracked ribs. These cracks are deemed to be entirely normal and a result of the belt material ageing process, and not detrimental to the service life of the belt.

ACTION REQUIRED

Engine auxiliary drive belts should not be replaced prior to their service interval, providing the ribs are still intact ie shows not sign of loose or missing rib sections.

PARTS INFORMATION

Not applicable

PROCEDURE

Refer to the workshop manual section 10 (Check condition of drive belt), and the service schedule sheet for the correct change point.

08/05/95

12/04/95/EN

AFFECTED VEHICLES

LP LH LJ All LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
