Engine noise/vibration - engine mounting degradation

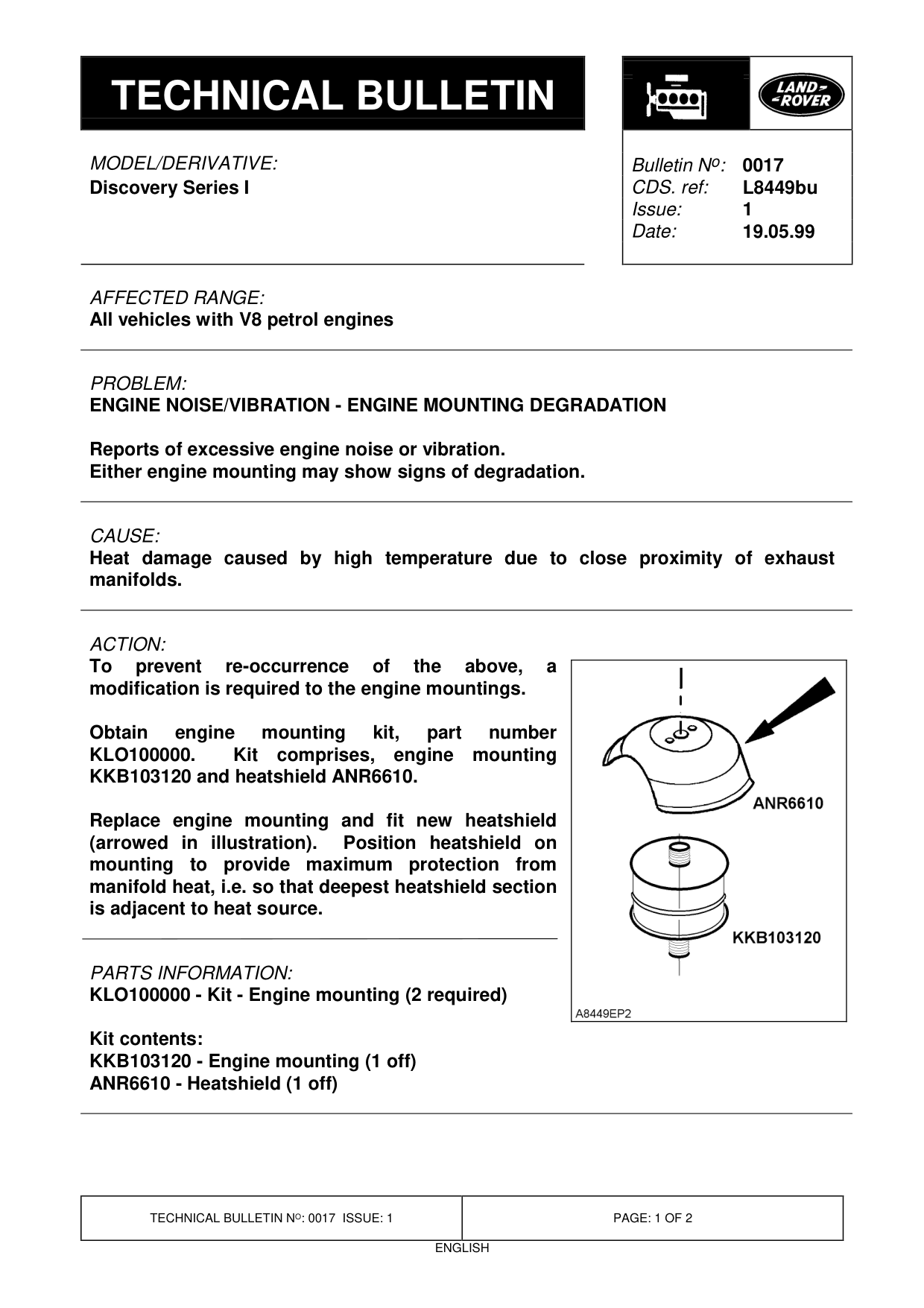

ENGINE NOISE/VIBRATION - ENGINE MOUNTING DEGRADATION

Model

Discovery Series I

Affected vehicles

All vehicles with V8 petrol engines

Date

1999-05-19

Reference

Bulletin 0017, CDS ref L8449bu

Bulletin text

Discovery Series I

AFFECTED RANGE:

All vehicles with V8 petrol engines

PROBLEM:

ENGINE NOISE/VIBRATION - ENGINE MOUNTING DEGRADATION

Reports of excessive engine noise or vibration. Either engine mounting may show signs of degradation.

CAUSE:

Heat damage caused by high temperature due to close proximity of exhaust manifolds.

ACTION:

To prevent re-occurrence of the modification is required to the engine mountings.

Obtain engine mounting kit, KLO100000. Kit comprises, engine mounting KKB103120 and heatshield ANR6610.

Replace engine mounting and fit new heatshield (arrowed in illustration). Position heatshield on mounting to provide maximum protection manifold heat, i.e. so that deepest heatshield section is adjacent to heat source.

PARTS INFORMATION:

KLO100000 - Kit - Engine mounting (2 required)

Kit contents: KKB103120 - Engine mounting (1 off) ANR6610 - Heatshield (1 off)

Bulletin N o : 0017 L8449bu 1 19.05.99

above, a

part number

from

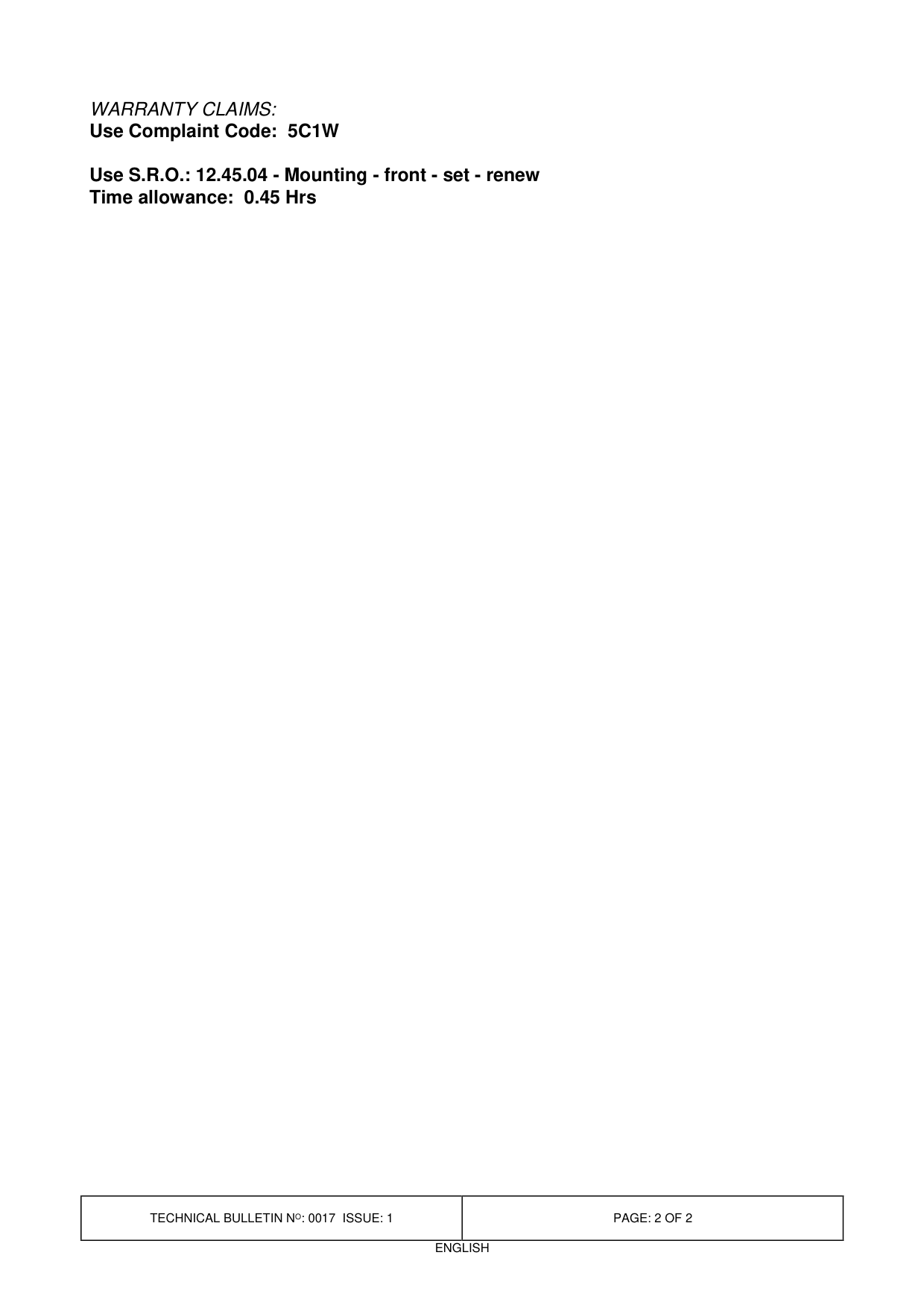

WARRANTY CLAIMS: Use Complaint Code: 5C1W

Use S.R.O.: 12.45.04 - Mounting - front - set - renew Time allowance: 0.45 Hrs
