Front cover input shaft oil seal - oil leaks

FRONT COVER INPUT SHAFT OIL SEAL - OIL LEAKS

Model

New Range Rover R380 Manual Gearbox Range Rover Classic R380 manual Gearbox Discovery R380 Manual Gearbox Defender R380 Manual Gearbox

Affected vehicles

All All All All

Date

1996-12-09

Reference

09/12/96

Bulletin text

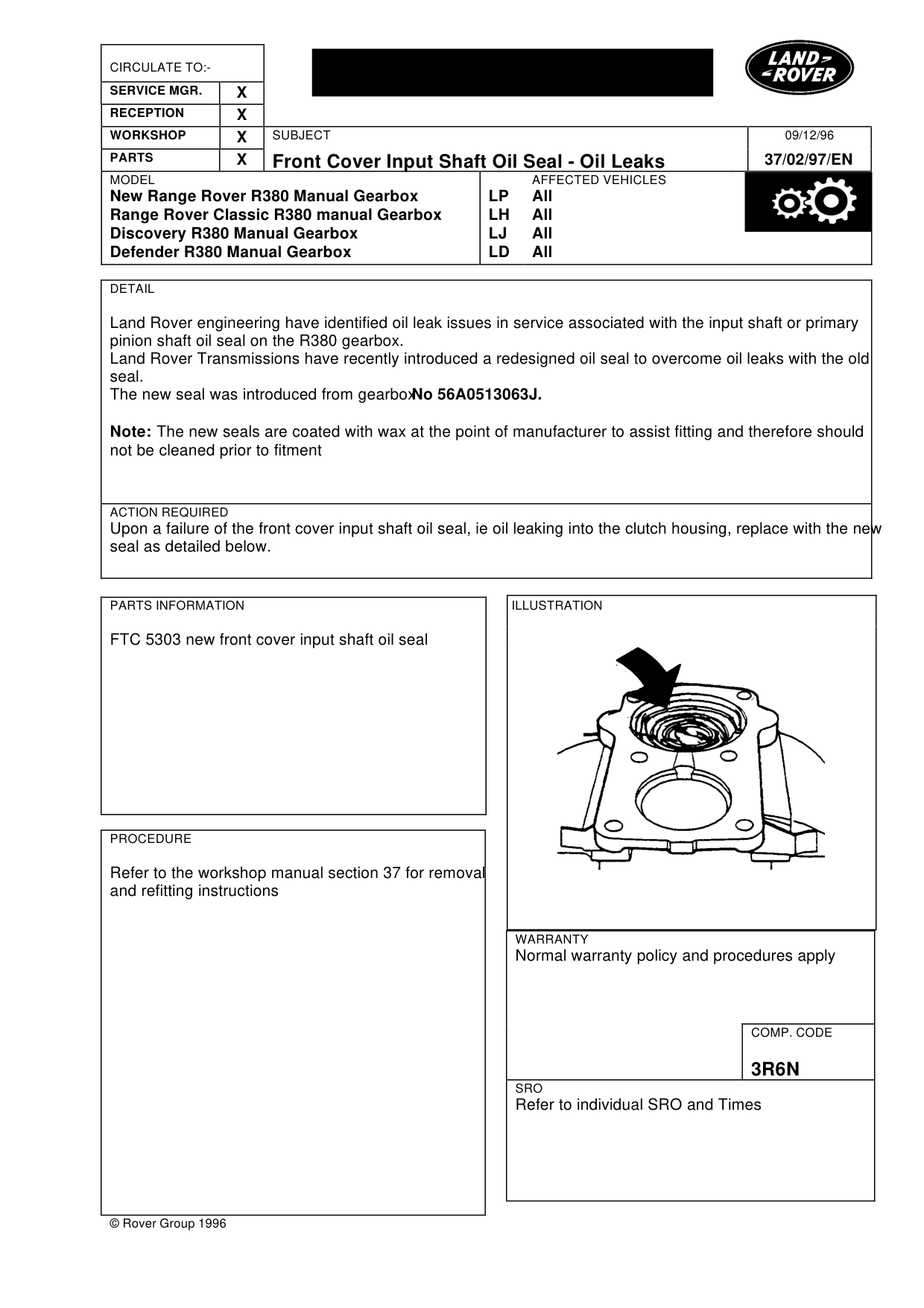

Front Cover Input Shaft Oil Seal - Oil Leaks

MODEL

New Range Rover R380 Manual Gearbox Range Rover Classic R380 manual Gearbox Discovery R380 Manual Gearbox Defender R380 Manual Gearbox

DETAIL

Land Rover engineering have identified oil leak issues in service associated with the input shaft or primary pinion shaft oil seal on the R380 gearbox. Land Rover Transmissions have recently introduced a redesigned oil seal to overcome oil leaks with the old seal. The new seal was introduced from gearbox No 56A0513063J.

Note: The new seals are coated with wax at the point of manufacturer to assist fitting and therefore should not be cleaned prior to fitment

ACTION REQUIRED

Upon a failure of the front cover input shaft oil seal, ie oil leaking into the clutch housing, replace with the new seal as detailed below.

PARTS INFORMATION

FTC 5303 new front cover input shaft oil seal

PROCEDURE

Refer to the workshop manual section 37 for removal and refitting instructions

© Rover Group 1996

09/12/96

37/02/97/EN

AFFECTED VEHICLES

LP All LH All LJ All LD All

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

3R6N

SRO

Refer to individual SRO and Times
