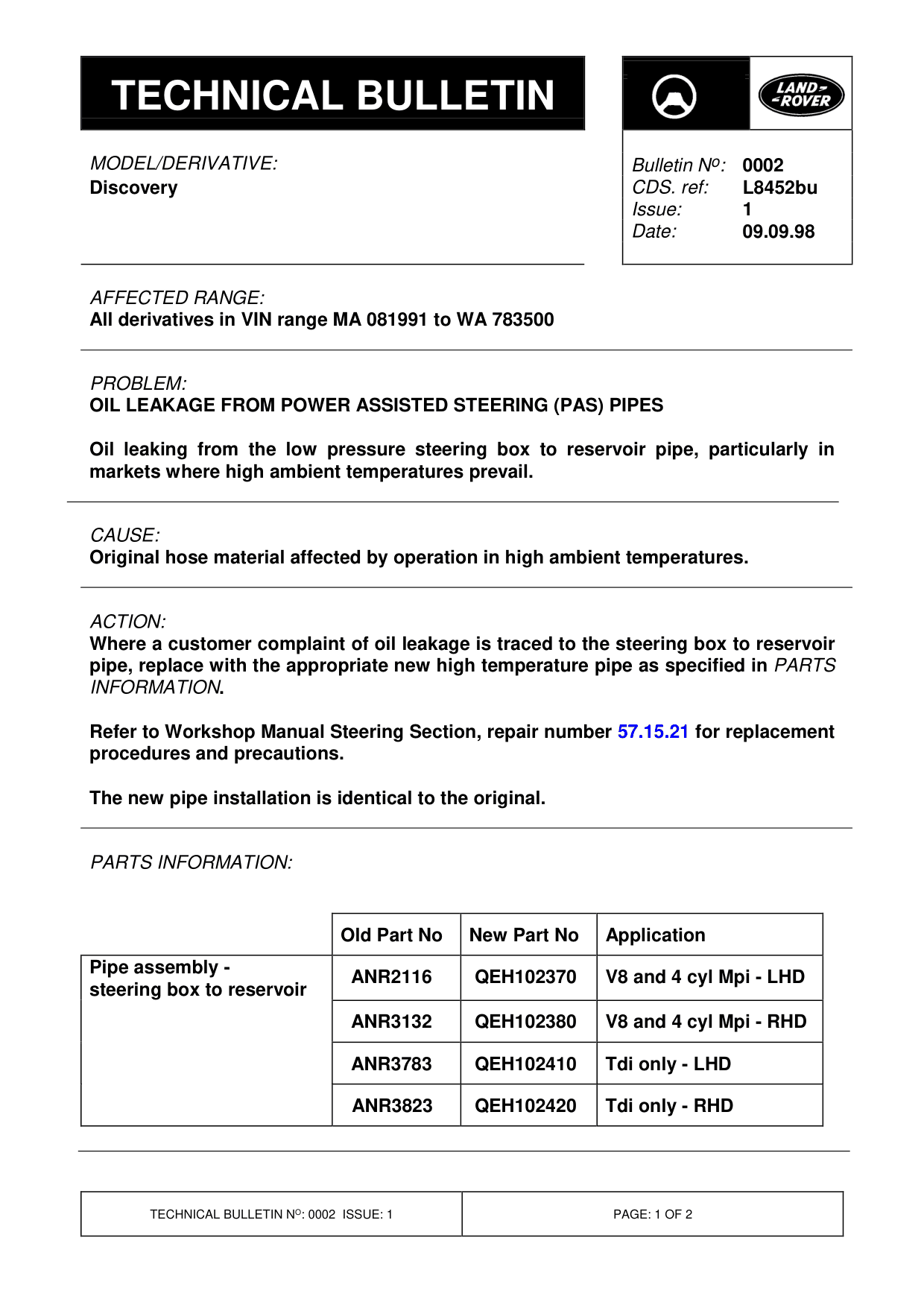

OIL LEAKAGE FROM POWER ASSISTED STEERING (PAS) PIPES

Model

Discovery

Affected vehicles

All derivatives in VIN range MA 081991 to WA 783500

Date

1998-09-09

Reference

Bulletin 0002, CDS ref L8452bu

Bulletin text

Discovery

AFFECTED RANGE:

All derivatives in VIN range MA 081991 to WA 783500

PROBLEM:

OIL LEAKAGE FROM POWER ASSISTED STEERING (PAS) PIPES

Oil leaking from the low pressure steering box to reservoir pipe, particularly in markets where high ambient temperatures prevail.

CAUSE:

Original hose material affected by operation in high ambient temperatures.

ACTION:

Where a customer complaint of oil leakage is traced to the steering box to reservoir pipe, replace with the appropriate new high temperature pipe as specified in PARTS INFORMATION .

Refer to Workshop Manual Steering Section, repair number 57.15.21 for replacement procedures and precautions.

The new pipe installation is identical to the original.

PARTS INFORMATION:

Old Part No Pipe assembly - ANR2116 steering box to reservoir ANR3132

ANR3783

ANR3823

Bulletin N o : 0002 L8452bu 1 09.09.98

New Part No Application

QEH102370 V8 and 4 cyl Mpi - LHD

QEH102380 V8 and 4 cyl Mpi - RHD

QEH102410 Tdi only - LHD

QEH102420 Tdi only - RHD

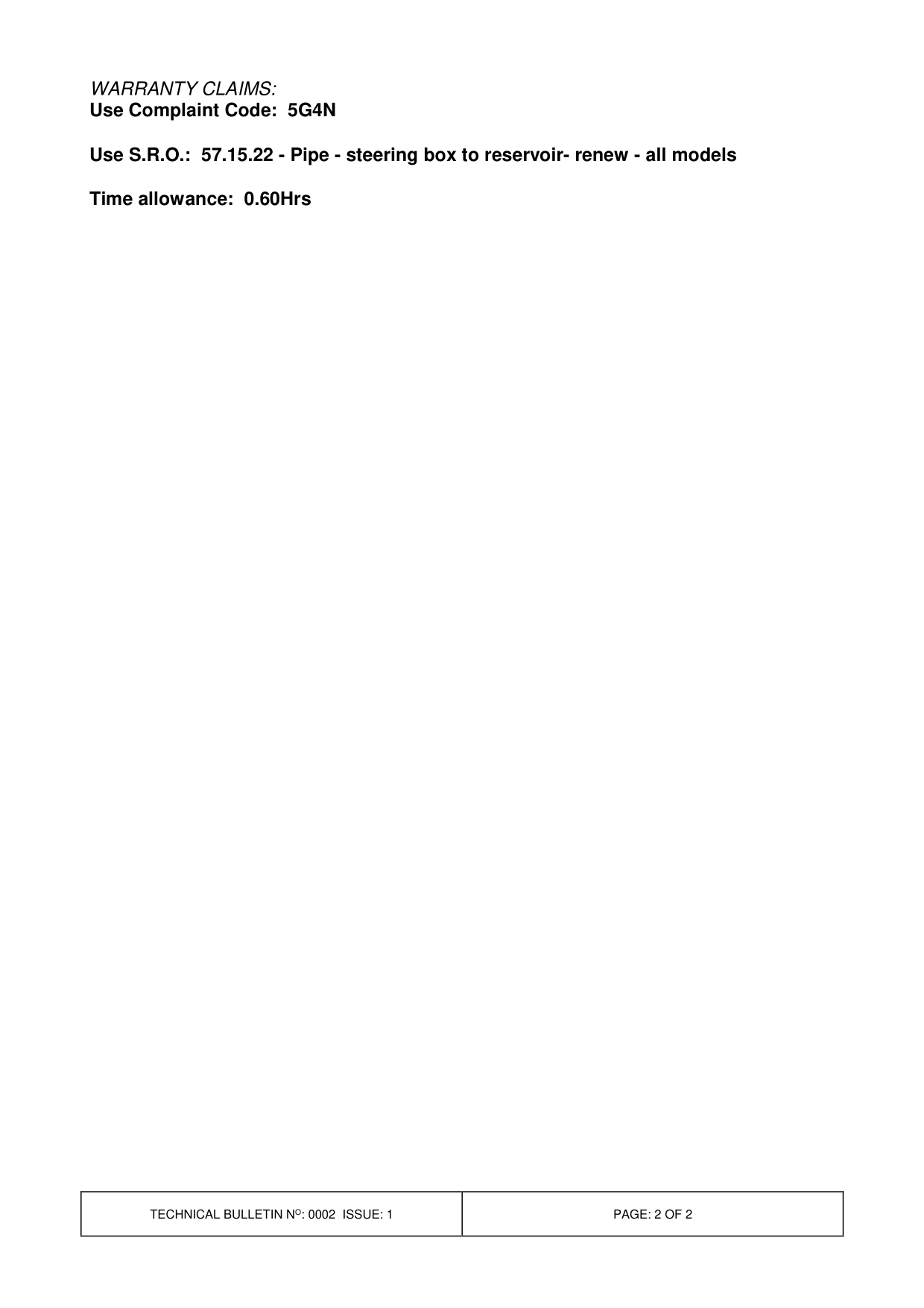

WARRANTY CLAIMS: Use Complaint Code: 5G4N

Use S.R.O.: 57.15.22 - Pipe - steering box to reservoir- renew - all models

Time allowance: 0.60Hrs
