Oil leakage from sump bolts

OIL LEAKAGE FROM SUMP BOLTS

Model

Range Rover Discovery

Affected vehicles

All V8 derivatives prior to VINs: Range Rover VA 374947 Discovery VA 738466

Date

1998-03-18

Reference

L8419bu

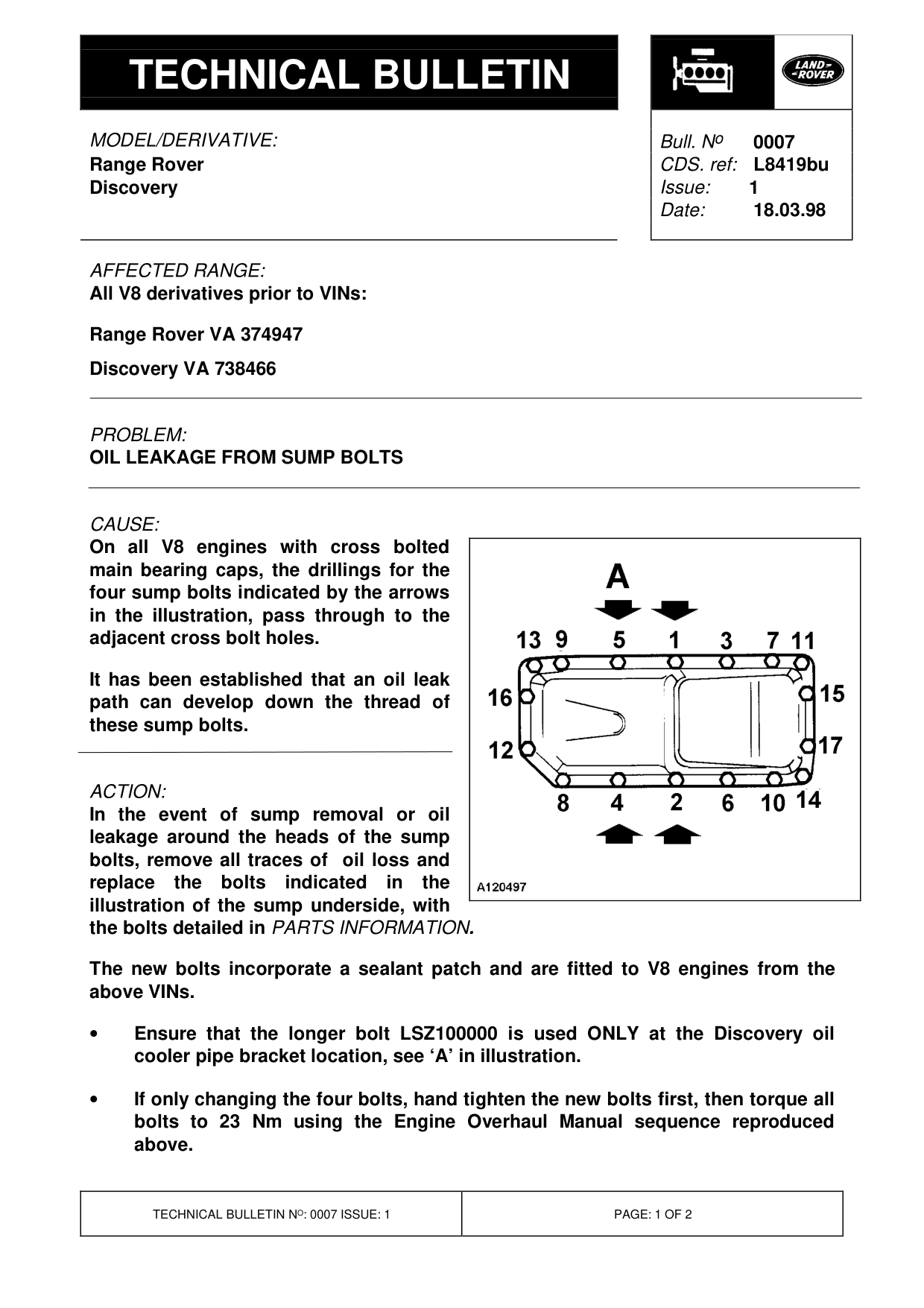

Bulletin text

Range Rover Discovery

AFFECTED RANGE:

All V8 derivatives prior to VINs:

Range Rover VA 374947 Discovery VA 738466

PROBLEM:

OIL LEAKAGE FROM SUMP BOLTS

CAUSE:

On all V8 engines with cross bolted main bearing caps, the drillings for the four sump bolts indicated by the arrows in the illustration, pass through to the adjacent cross bolt holes.

It has been established that an oil leak path can develop down the thread of these sump bolts.

ACTION:

In the event of sump removal or oil leakage around the heads of the sump bolts, remove all traces of oil loss and replace the bolts indicated in the illustration of the sump underside, with the bolts detailed in PARTS INFORMATION .

The new bolts incorporate a sealant patch and are fitted to V8 engines from the above VINs.

Ensure that the longer bolt LSZ100000 is used ONLY at the Discovery oil • cooler pipe bracket location, see ‘A’ in illustration.

If only changing the four bolts, hand tighten the new bolts first, then torque all • bolts to 23 Nm using the Engine Overhaul Manual sequence reproduced above.

Bull. N o 0007

1 18.03.98

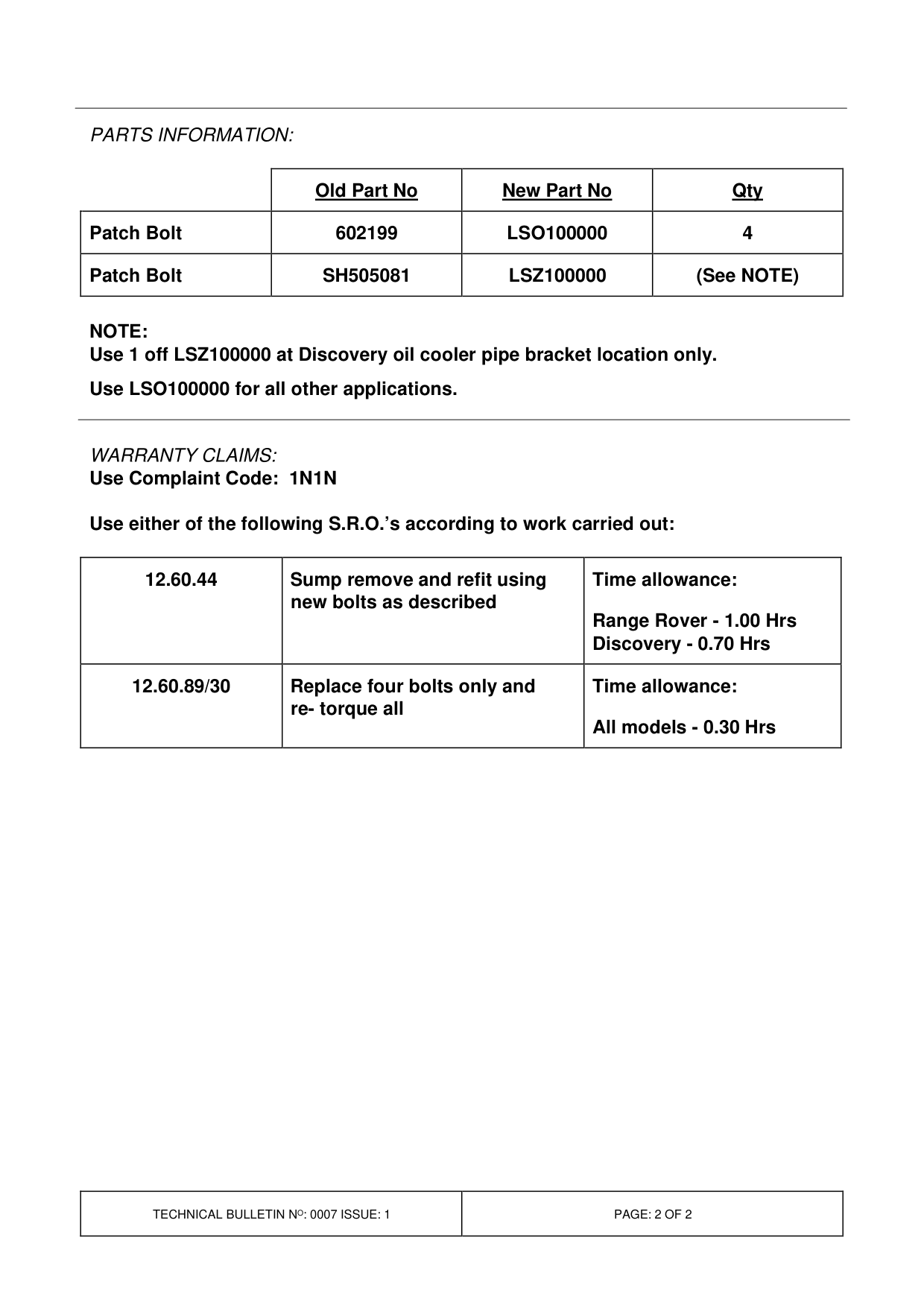

PARTS INFORMATION:

Old Part No

Patch Bolt 602199

Patch Bolt SH505081

NOTE:

Use 1 off LSZ100000 at Discovery oil cooler pipe bracket location only. Use LSO100000 for all other applications.

WARRANTY CLAIMS: Use Complaint Code: 1N1N

Use either of the following S.R.O.’s according to work carried out:

12.60.44 Sump remove and refit using new bolts as described

12.60.89/30 Replace four bolts only and re- torque all

New Part No Qty

LSO100000 4

LSZ100000 (See NOTE)

Time allowance:

Range Rover - 1.00 Hrs Discovery - 0.70 Hrs

Time allowance:

All models - 0.30 Hrs
