Serpentine drive belt

SERPENTINE DRIVE BELT

Model

Range Rover Discovery

Affected vehicles

All Range Rover and Discovery V8 petrol derivatives from VIN LH 647645 and LJ 081991

Date

1994-03-11

Reference

11/03/94

Bulletin text

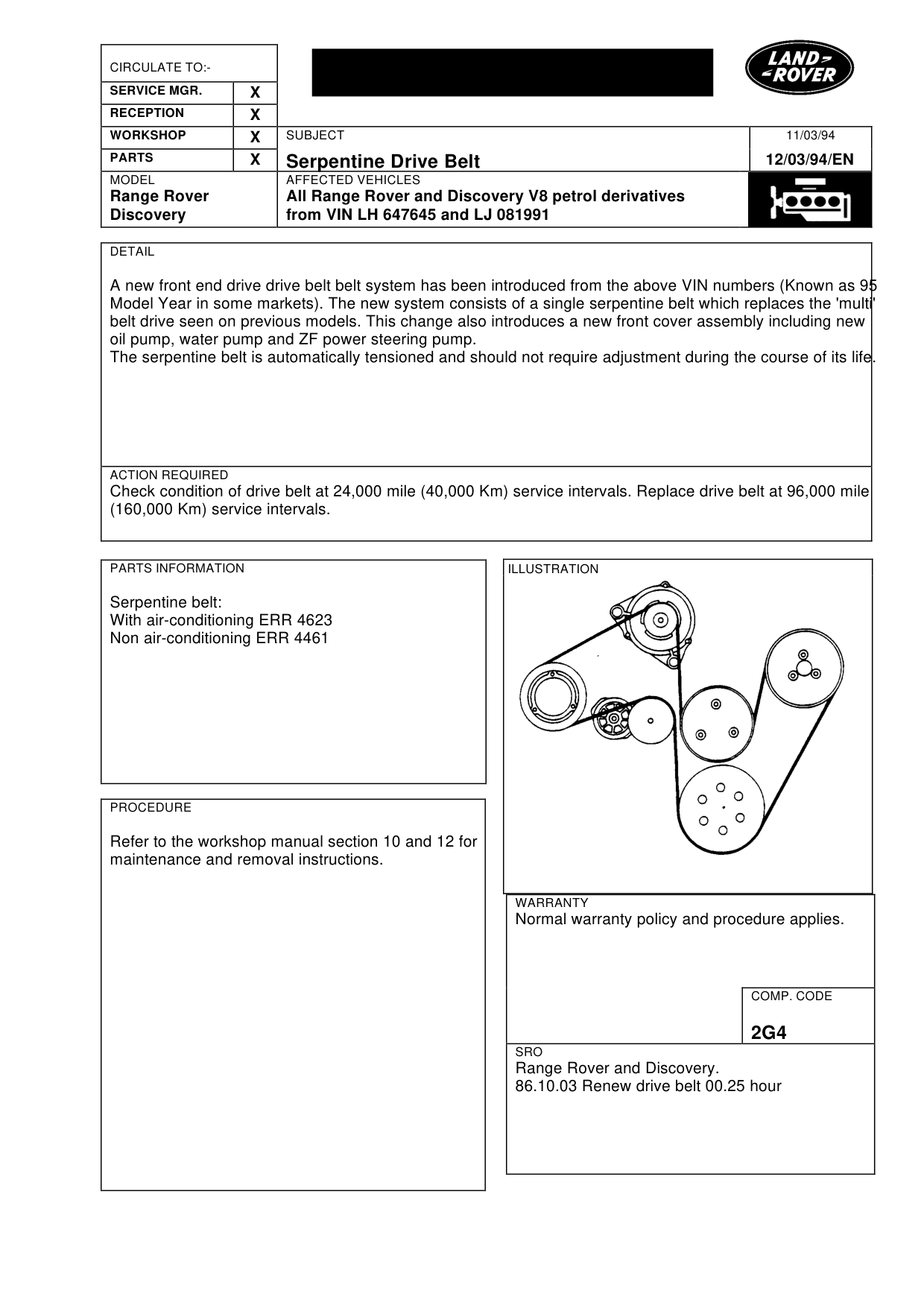

Serpentine Drive Belt

MODEL AFFECTED VEHICLES

Range Rover All Range Rover and Discovery V8 petrol derivatives Discovery from VIN LH 647645 and LJ 081991

DETAIL

A new front end drive drive belt belt system has been introduced from the above VIN numbers (Known as 95 Model Year in some markets). The new system consists of a single serpentine belt which replaces the 'multi' belt drive seen on previous models. This change also introduces a new front cover assembly including new oil pump, water pump and ZF power steering pump. The serpentine belt is automatically tensioned and should not require adjustment during the course of its life.

ACTION REQUIRED

Check condition of drive belt at 24,000 mile (40,000 Km) service intervals. Replace drive belt at 96,000 mile (160,000 Km) service intervals.

PARTS INFORMATION

Serpentine belt: With air-conditioning ERR 4623 Non air-conditioning ERR 4461

PROCEDURE

Refer to the workshop manual section 10 and 12 for maintenance and removal instructions.

11/03/94

12/03/94/EN

WARRANTY

Normal warranty policy and procedure applies.

COMP. CODE

2G4

SRO

Range Rover and Discovery. 86.10.03 Renew drive belt 00.25 hour
