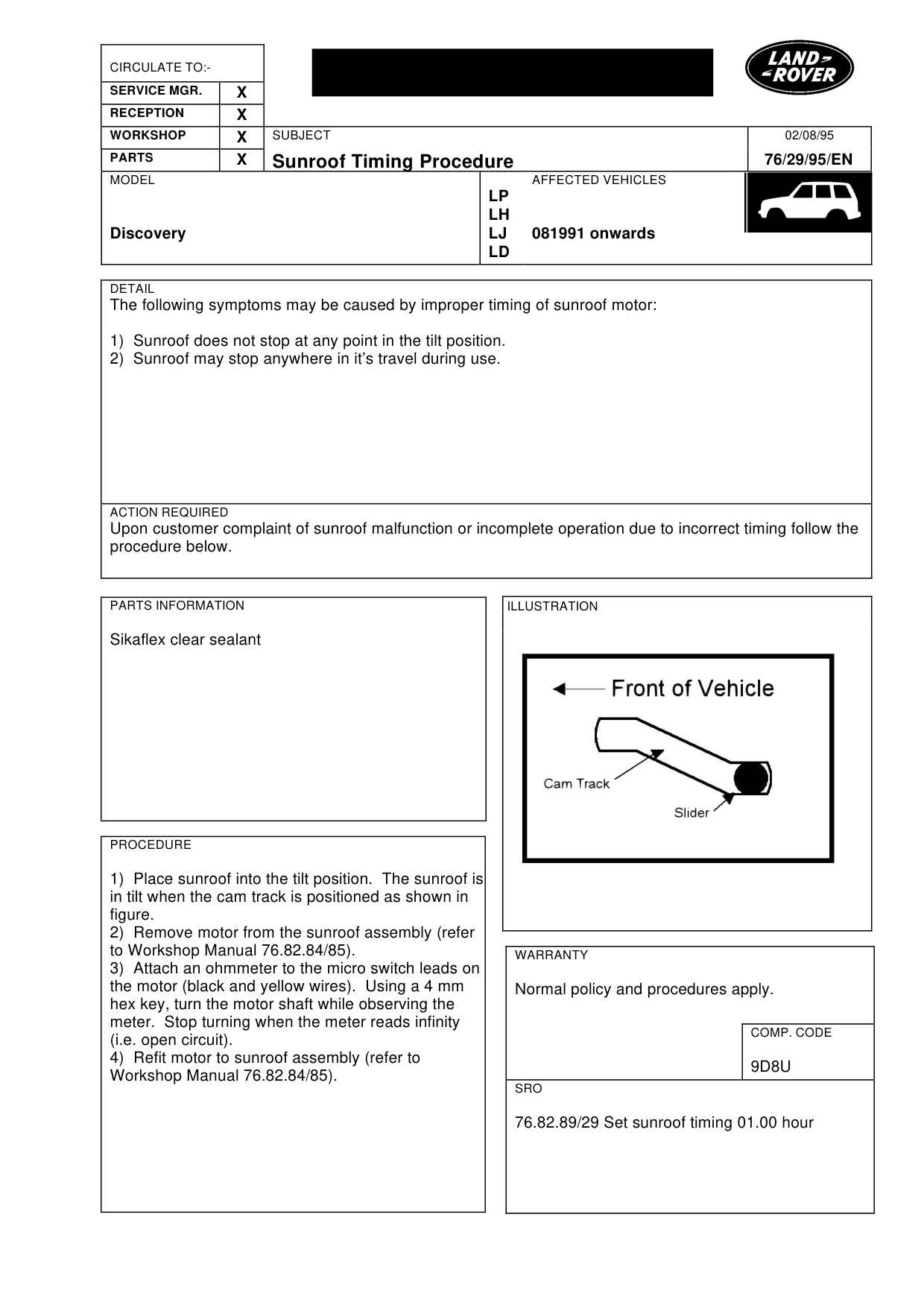

Sunroof timing procedure

SUNROOF TIMING PROCEDURE

Model

Discovery

Affected vehicles

081991 onwards

Date

1995-08-02

Reference

02/08/95

Bulletin text

Sunroof Timing Procedure

MODEL

Discovery

DETAIL

The following symptoms may be caused by improper timing of sunroof motor:

1) Sunroof does not stop at any point in the tilt position. 2) Sunroof may stop anywhere in it’s travel during use.

ACTION REQUIRED

Upon customer complaint of sunroof malfunction or incomplete operation due to incorrect timing follow the procedure below.

PARTS INFORMATION

Sikaflex clear sealant

PROCEDURE

1) Place sunroof into the tilt position. The sunroof is in tilt when the cam track is positioned as shown in figure. 2) Remove motor from the sunroof assembly (refer to Workshop Manual 76.82.84/85). 3) Attach an ohmmeter to the micro switch leads on the motor (black and yellow wires). Using a 4 mm hex key, turn the motor shaft while observing the meter. Stop turning when the meter reads infinity (i.e. open circuit). 4) Refit motor to sunroof assembly (refer to Workshop Manual 76.82.84/85).

02/08/95

76/29/95/EN

AFFECTED VEHICLES

LP LH LJ 081991 onwards LD

WARRANTY

Normal policy and procedures apply.

COMP. CODE

9D8U

SRO

76.82.89/29 Set sunroof timing 01.00 hour
