Fuel lift pump - failure

FUEL LIFT PUMP - FAILURE

Model

Discovery 300 Tdi Derivatives Discovery 300 Tdi Derivatives Defender 300 Tdi Derivatives

Affected vehicles

554794 Onwards 721321 Onwards 111838 Onwards

Date

1997-04-09

Reference

09/04/97

Bulletin text

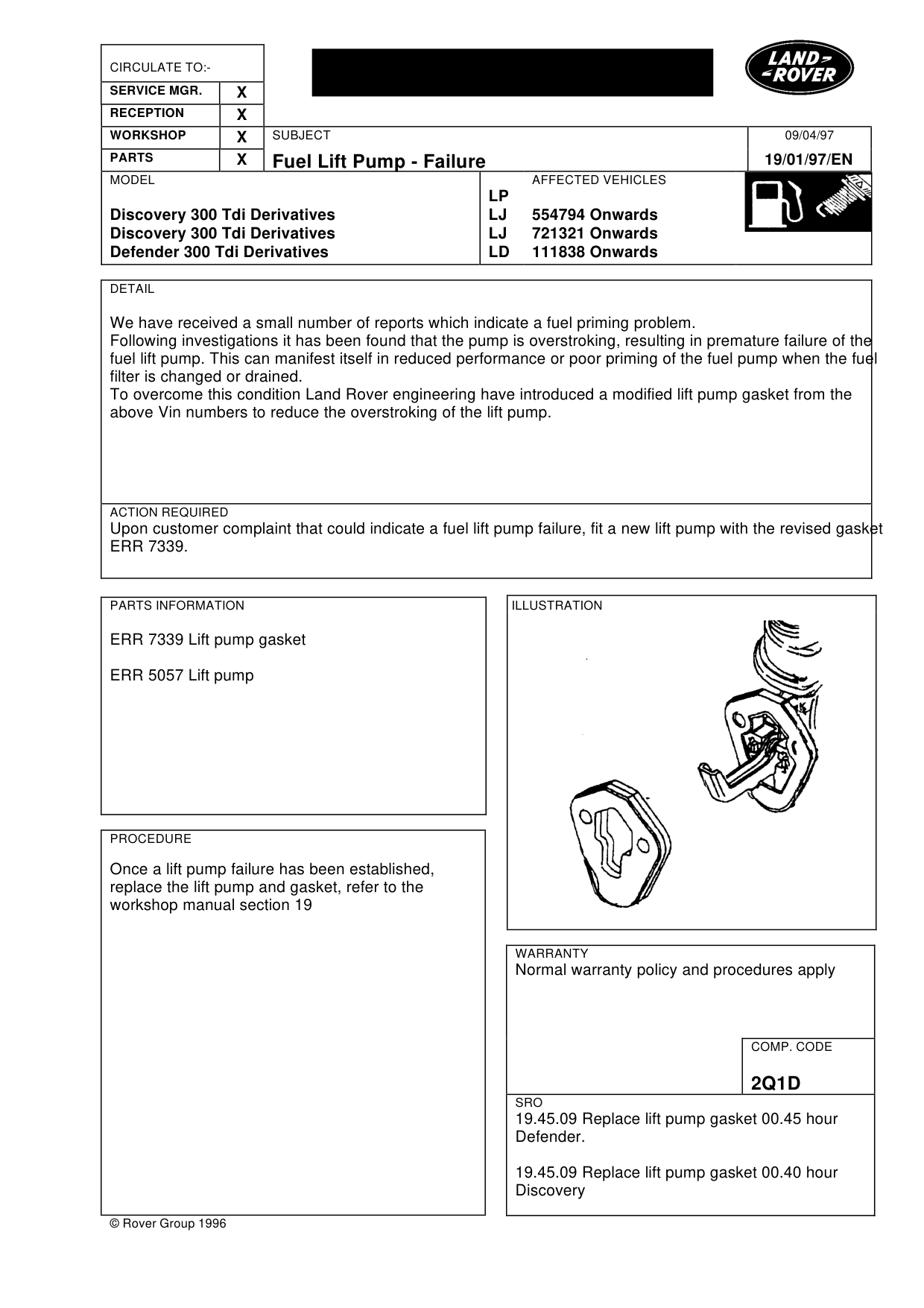

Fuel Lift Pump - Failure

MODEL

Discovery 300 Tdi Derivatives Discovery 300 Tdi Derivatives Defender 300 Tdi Derivatives

DETAIL

We have received a small number of reports which indicate a fuel priming problem. Following investigations it has been found that the pump is overstroking, resulting in premature failure of the fuel lift pump. This can manifest itself in reduced performance or poor priming of the fuel pump when the fuel filter is changed or drained. To overcome this condition Land Rover engineering have introduced a modified lift pump gasket from the above Vin numbers to reduce the overstroking of the lift pump.

ACTION REQUIRED

Upon customer complaint that could indicate a fuel lift pump failure, fit a new lift pump with the revised gasket ERR 7339.

PARTS INFORMATION

ERR 7339 Lift pump gasket

ERR 5057 Lift pump

PROCEDURE

Once a lift pump failure has been established, replace the lift pump and gasket, refer to the workshop manual section 19

© Rover Group 1996

09/04/97

19/01/97/EN

AFFECTED VEHICLES

LP LJ 554794 Onwards LJ 721321 Onwards LD 111838 Onwards

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

2Q1D

SRO

19.45.09 Replace lift pump gasket 00.45 hour Defender.

19.45.09 Replace lift pump gasket 00.40 hour Discovery
