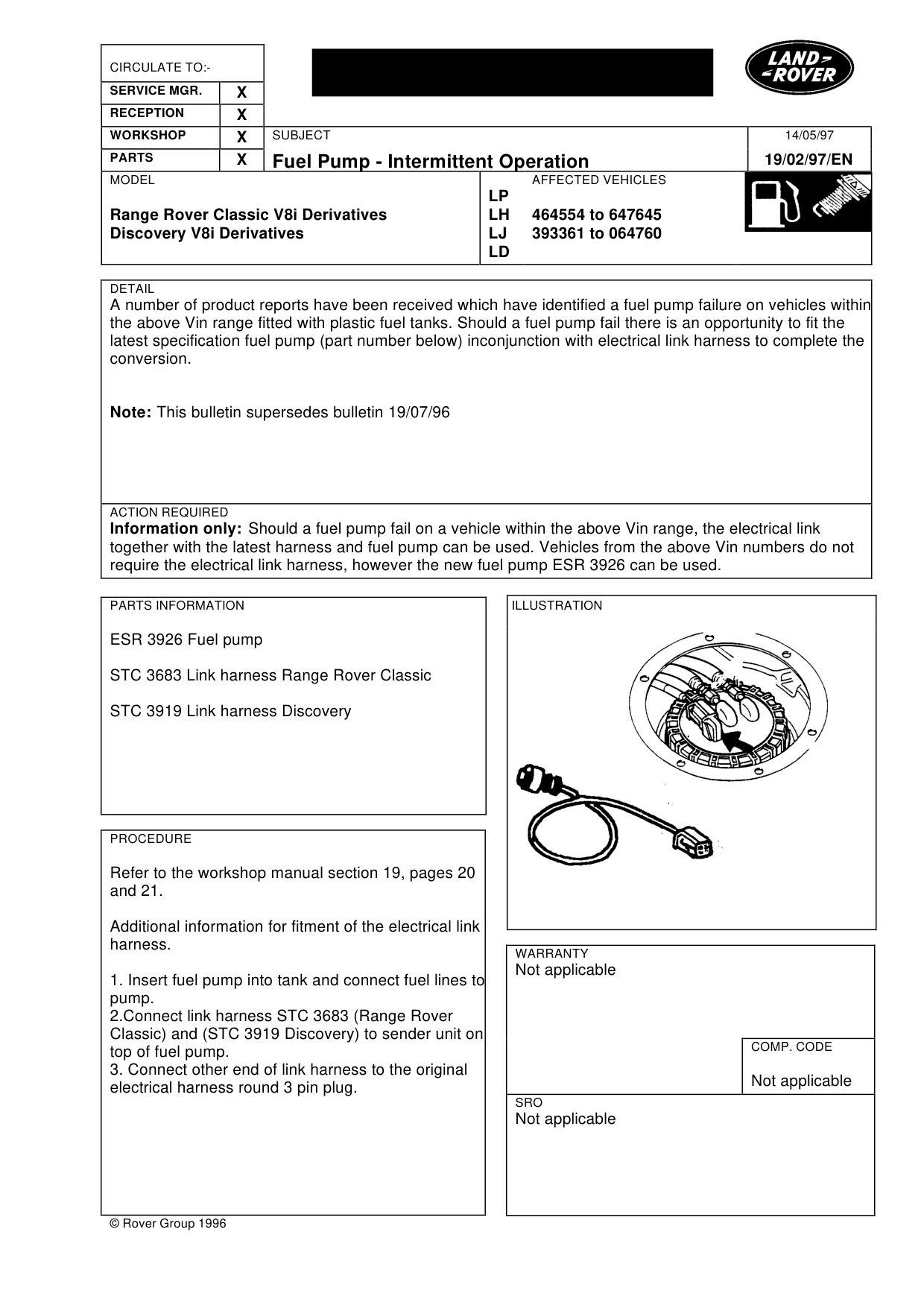

Fuel pump intermittent operation

FUEL PUMP INTERMITTENT OPERATION

Model

Range Rover Classic V8i Derivatives Discovery V8i Derivatives

Affected vehicles

464554 to 647645 393361 to 064760

Date

1997-05-14

Reference

14/05/97

Bulletin text

Fuel Pump - Intermittent Operation

MODEL

Range Rover Classic V8i Derivatives Discovery V8i Derivatives

DETAIL

A number of product reports have been received which have identified a fuel pump failure on vehicles within the above Vin range fitted with plastic fuel tanks. Should a fuel pump fail there is an opportunity to fit the latest specification fuel pump (part number below) inconjunction with electrical link harness to complete the conversion.

Note: This bulletin supersedes bulletin 19/07/96

ACTION REQUIRED

Information only: Should a fuel pump fail on a vehicle within the above Vin range, the electrical link together with the latest harness and fuel pump can be used. Vehicles from the above Vin numbers do not require the electrical link harness, however the new fuel pump ESR 3926 can be used.

PARTS INFORMATION

ESR 3926 Fuel pump

STC 3683 Link harness Range Rover Classic

STC 3919 Link harness Discovery

PROCEDURE

Refer to the workshop manual section 19, pages 20 and 21.

Additional information for fitment of the electrical link harness.

1. Insert fuel pump into tank and connect fuel lines to pump. 2.Connect link harness STC 3683 (Range Rover Classic) and (STC 3919 Discovery) to sender unit on top of fuel pump. 3. Connect other end of link harness to the original electrical harness round 3 pin plug.

© Rover Group 1996

14/05/97

19/02/97/EN

AFFECTED VEHICLES

LP LH 464554 to 647645 LJ 393361 to 064760 LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
