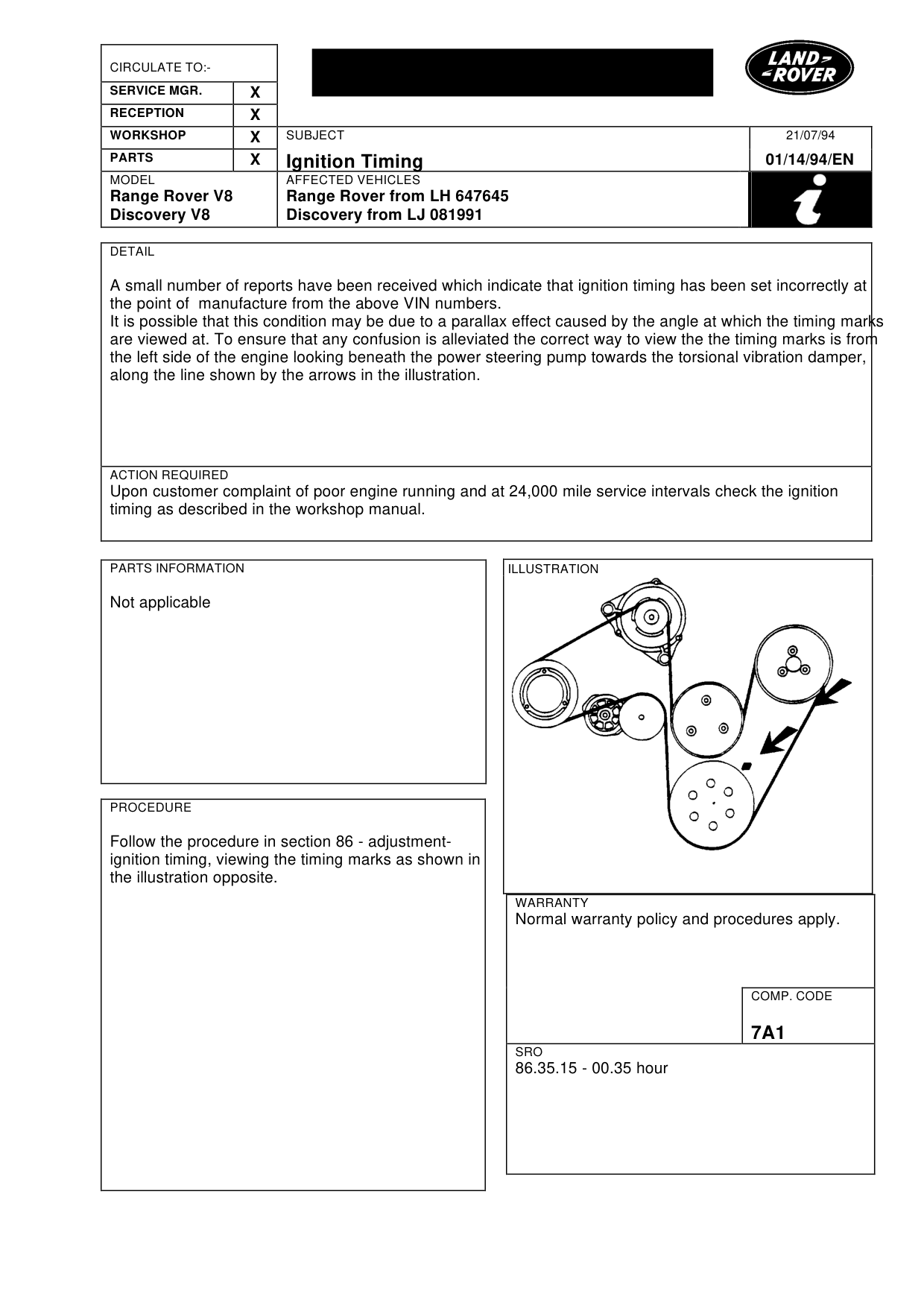

IGNITION TIMING V8

Model

Range Rover V8 Discovery V8

Affected vehicles

Range Rover from LH 647645 Discovery from LJ 081991

Date

1994-07-21

Reference

21/07/94

Bulletin text

Ignition Timing

MODEL AFFECTED VEHICLES

Range Rover V8 Range Rover from LH 647645 Discovery V8 Discovery from LJ 081991

DETAIL

A small number of reports have been received which indicate that ignition timing has been set incorrectly at the point of manufacture from the above VIN numbers. It is possible that this condition may be due to a parallax effect caused by the angle at which the timing marks are viewed at. To ensure that any confusion is alleviated the correct way to view the the timing marks is from the left side of the engine looking beneath the power steering pump towards the torsional vibration damper, along the line shown by the arrows in the illustration.

ACTION REQUIRED

Upon customer complaint of poor engine running and at 24,000 mile service intervals check the ignition timing as described in the workshop manual.

PARTS INFORMATION

Not applicable

PROCEDURE

Follow the procedure in section 86 - adjustmentignition timing, viewing the timing marks as shown in the illustration opposite.

21/07/94

01/14/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

7A1

SRO

86.35.15 - 00.35 hour
