Noise when turning steering wheel - PAS

NOISE WHEN TURNING STEERING WHEEL - PAS

Model

Discovery - Right Hand Drive ( RHD) Only

Affected vehicles

All RHD derivatives in 95MY to 98MY VIN ranges: MA 081991 to TA 200042 TA 700000 to WA 799999 WA 400000 to WA 400250 MA 500000 to WA 565685

Date

1998-12-16

Reference

Bulletin 0007, CDS ref L8453bu

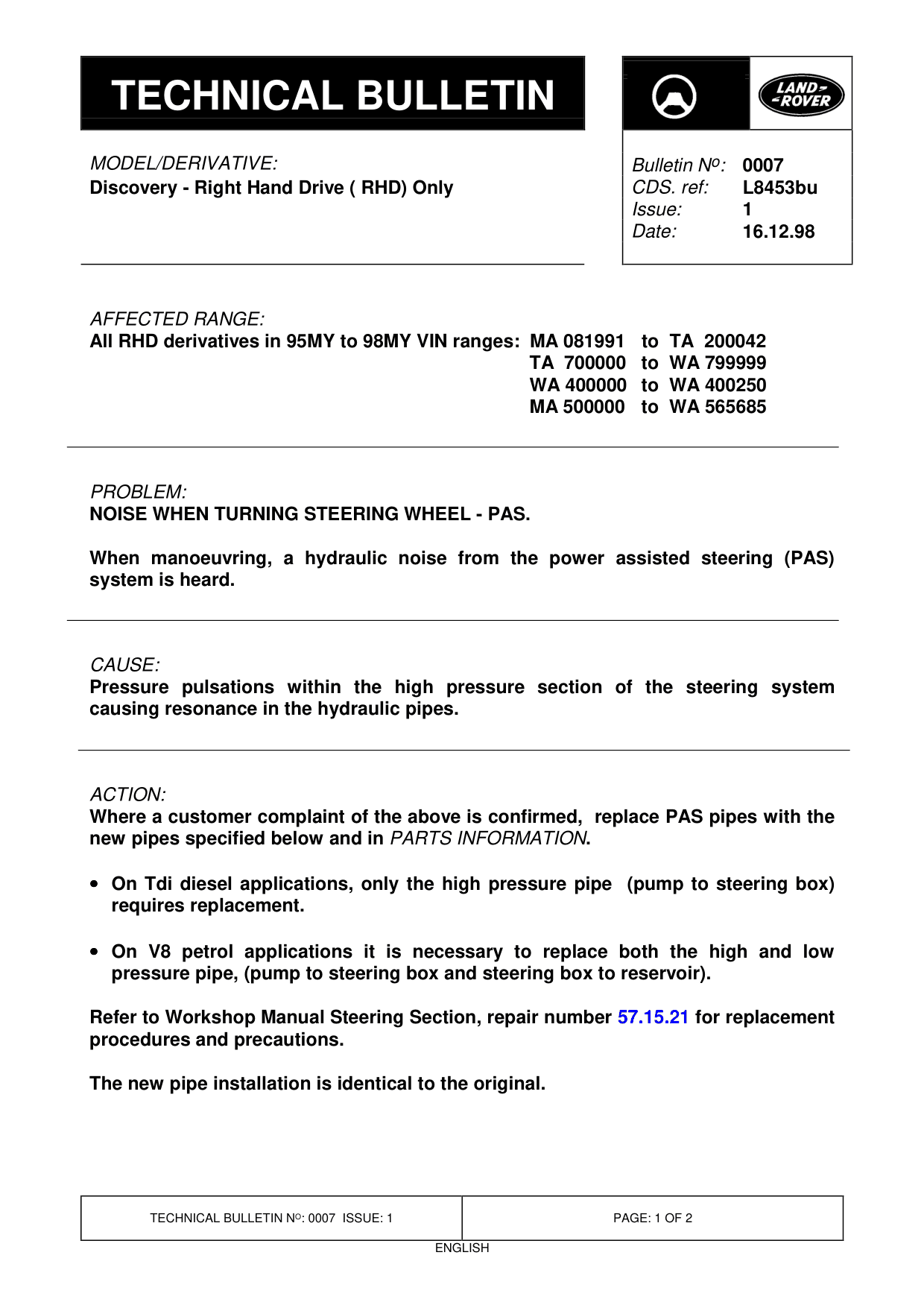

Bulletin text

Discovery - Right Hand Drive ( RHD) Only

AFFECTED RANGE:

All RHD derivatives in 95MY to 98MY VIN ranges: MA 081991

PROBLEM:

NOISE WHEN TURNING STEERING WHEEL - PAS.

When manoeuvring, a hydraulic noise from the power assisted steering (PAS) system is heard.

CAUSE:

Pressure pulsations within the high pressure section of the steering system causing resonance in the hydraulic pipes.

ACTION:

Where a customer complaint of the above is confirmed, replace PAS pipes with the new pipes specified below and in PARTS INFORMATION .

• = On Tdi diesel applications, only the high pressure pipe (pump to steering box) requires replacement. = • = On V8 petrol applications it is necessary to replace both the high and low pressure pipe, (pump to steering box and steering box to reservoir).

Refer to Workshop Manual Steering Section, repair number 57.15.21 for replacement procedures and precautions.

The new pipe installation is identical to the original.

Bulletin N o : 0007 L8453bu 1 16.12.98

to TA 200042 TA 700000 to WA 799999 WA 400000 to WA 400250 MA 500000 to WA 565685

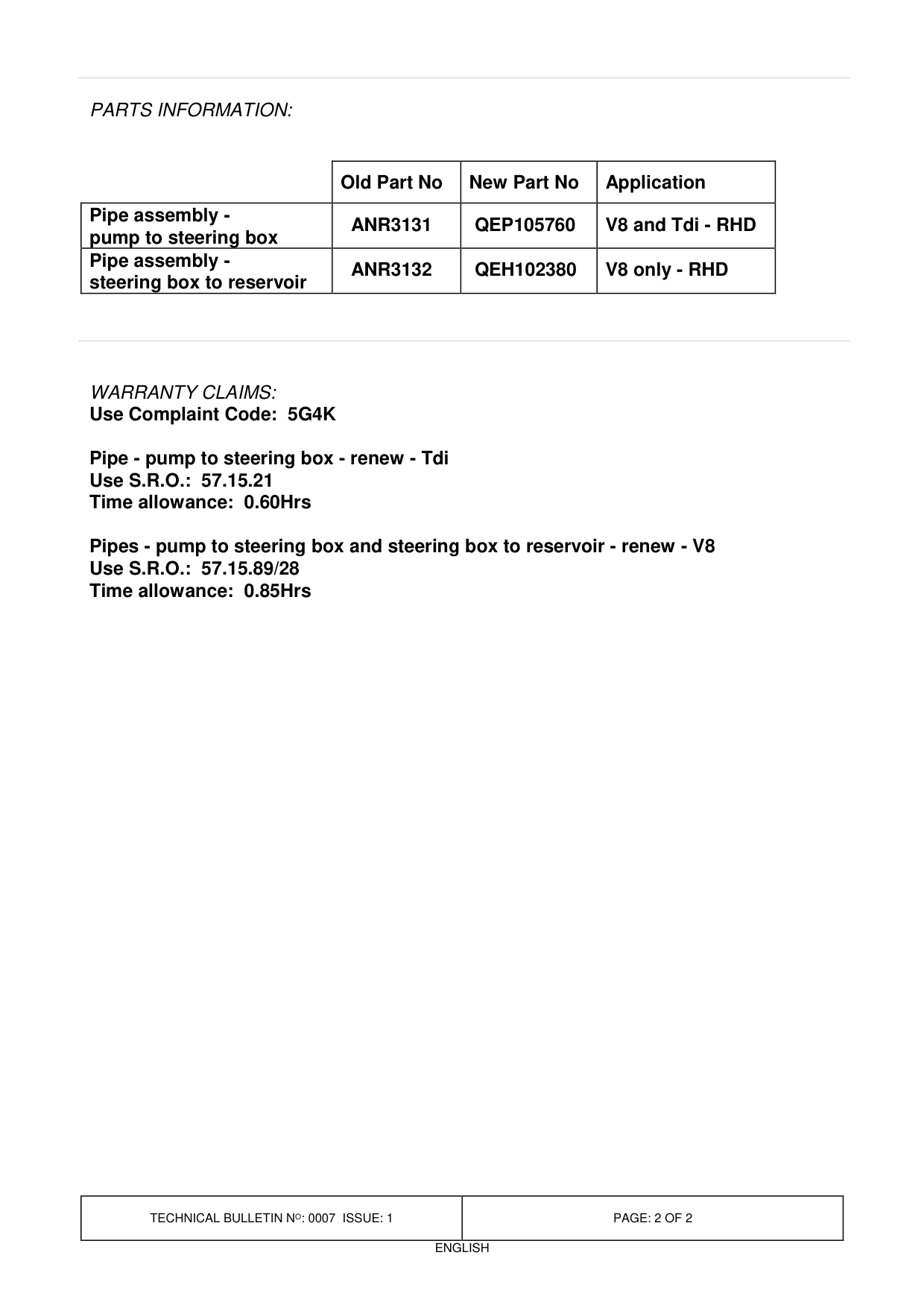

PARTS INFORMATION:

Old Part No Pipe assembly - ANR3131 pump to steering box Pipe assembly - ANR3132 steering box to reservoir

WARRANTY CLAIMS: Use Complaint Code: 5G4K

Pipe - pump to steering box - renew - Tdi Use S.R.O.: 57.15.21 Time allowance: 0.60Hrs

Pipes - pump to steering box and steering box to reservoir - renew - V8 Use S.R.O.: 57.15.89/28 Time allowance: 0.85Hrs

New Part No Application

QEP105760 V8 and Tdi - RHD

QEH102380 V8 only - RHD
