Ride quality - poor

RIDE QUALITY - POOR

Model

Discovery Discovery

Affected vehicles

Upto 537632 Upto 706870

Date

1997-02-07

Reference

07/02/97

Bulletin text

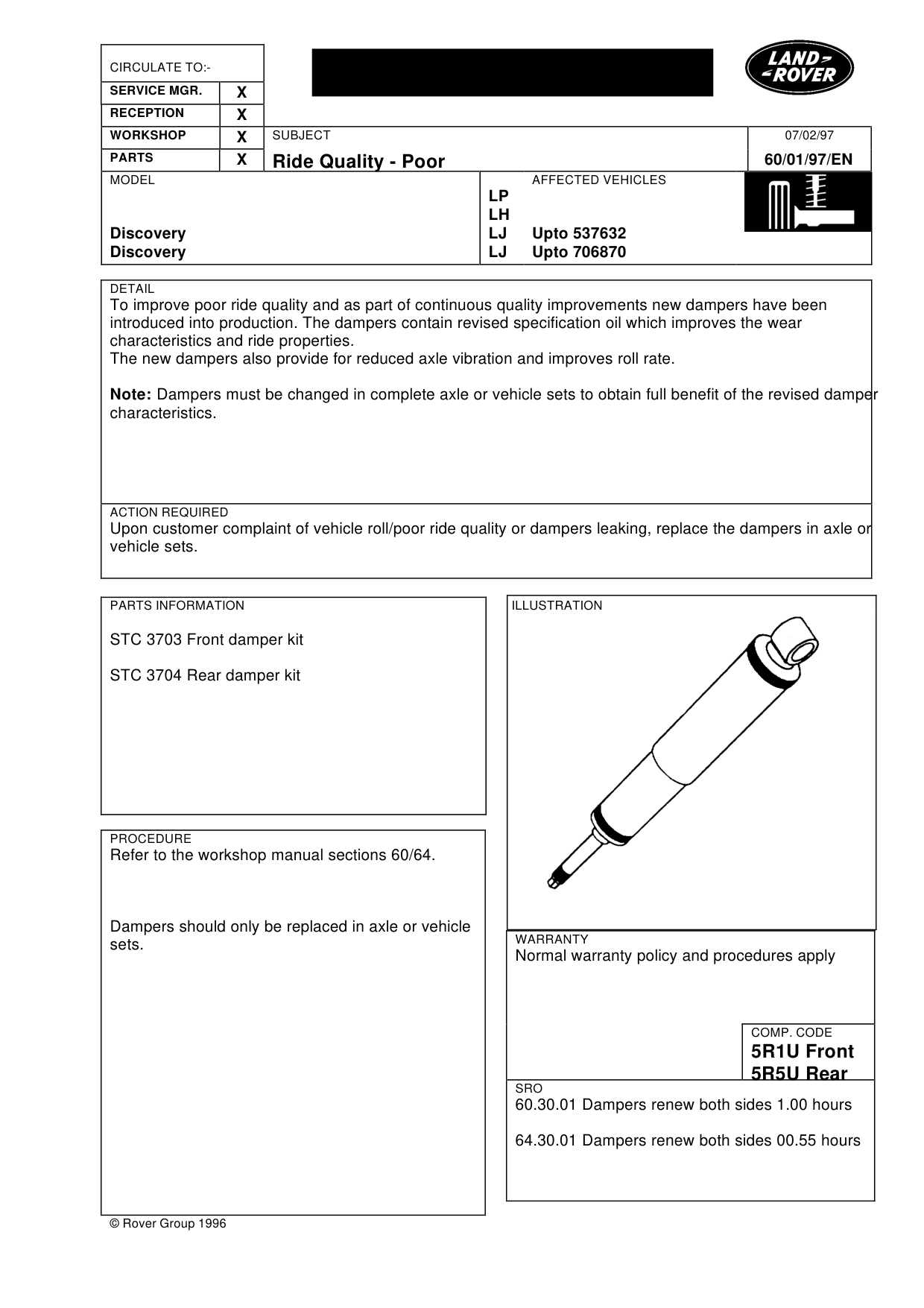

Ride Quality - Poor

MODEL

Discovery Discovery

DETAIL

To improve poor ride quality and as part of continuous quality improvements new dampers have been introduced into production. The dampers contain revised specification oil which improves the wear characteristics and ride properties. The new dampers also provide for reduced axle vibration and improves roll rate.

Note: Dampers must be changed in complete axle or vehicle sets to obtain full benefit of the revised damper characteristics.

ACTION REQUIRED

Upon customer complaint of vehicle roll/poor ride quality or dampers leaking, replace the dampers in axle or vehicle sets.

PARTS INFORMATION

STC 3703 Front damper kit

STC 3704 Rear damper kit

PROCEDURE

Refer to the workshop manual sections 60/64.

Dampers should only be replaced in axle or vehicle sets.

© Rover Group 1996

07/02/97

60/01/97/EN

AFFECTED VEHICLES

LP LH LJ Upto 537632 LJ Upto 706870

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

5R1U Front 5R5U Rear

SRO

60.30.01 Dampers renew both sides 1.00 hours

64.30.01 Dampers renew both sides 00.55 hours
