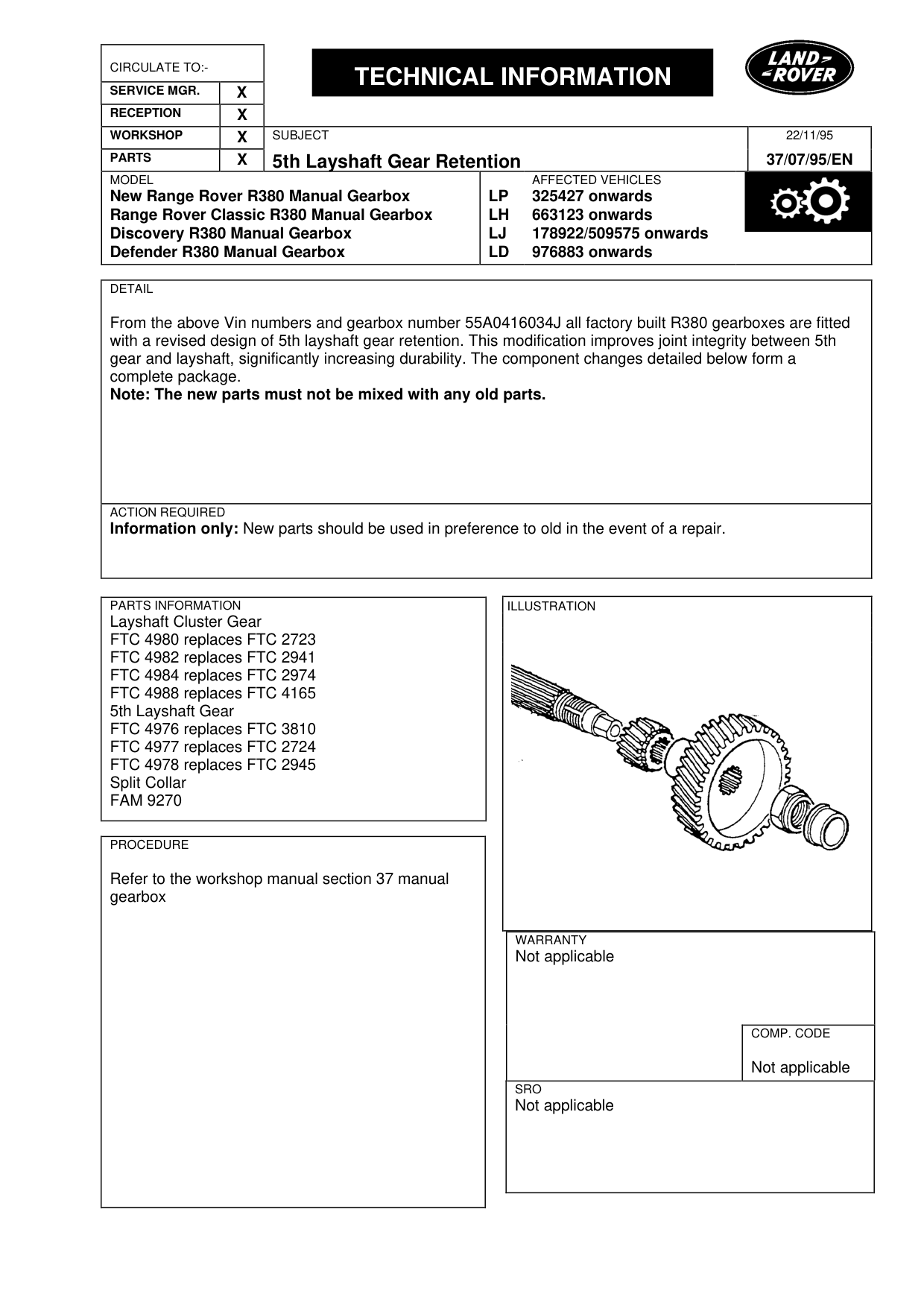

5Th layshaft gear retention

5TH LAYSHAFT GEAR RETENTION

Model

New Range Rover R380 Manual Gearbox Range Rover Classic R380 Manual Gearbox Discovery R380 Manual Gearbox Defender R380 Manual Gearbox

Affected vehicles

325427 onwards 663123 onwards 178922/509575 onwards 976883 onwards

Date

1995-11-22

Reference

22/11/95

Bulletin text

5th Layshaft Gear Retention

MODEL

New Range Rover R380 Manual Gearbox Range Rover Classic R380 Manual Gearbox Discovery R380 Manual Gearbox Defender R380 Manual Gearbox

DETAIL

From the above Vin numbers and gearbox number 55A0416034J all factory built R380 gearboxes are fitted with a revised design of 5th layshaft gear retention. This modification improves joint integrity between 5th gear and layshaft, significantly increasing durability. The component changes detailed below form a complete package. Note: The new parts must not be mixed with any old parts.

ACTION REQUIRED

Information only: New parts should be used in preference to old in the event of a repair.

PARTS INFORMATION

Layshaft Cluster Gear FTC 4980 replaces FTC 2723 FTC 4982 replaces FTC 2941 FTC 4984 replaces FTC 2974 FTC 4988 replaces FTC 4165 5th Layshaft Gear FTC 4976 replaces FTC 3810 FTC 4977 replaces FTC 2724 FTC 4978 replaces FTC 2945 Split Collar FAM 9270

PROCEDURE

Refer to the workshop manual section 37 manual gearbox

22/11/95 37/07/95/EN

AFFECTED VEHICLES

LP 325427 onwards LH 663123 onwards LJ 178922/509575 onwards LD 976883 onwards

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
