Transfer gearbox-oil specification

TRANSFER GEARBOX-OIL SPECIFICATION

Model

Discovery

Affected vehicles

All derivatives fitted with LT230T Transfer Gearbox

Date

1994-04-13

Reference

13/04/94

Bulletin text

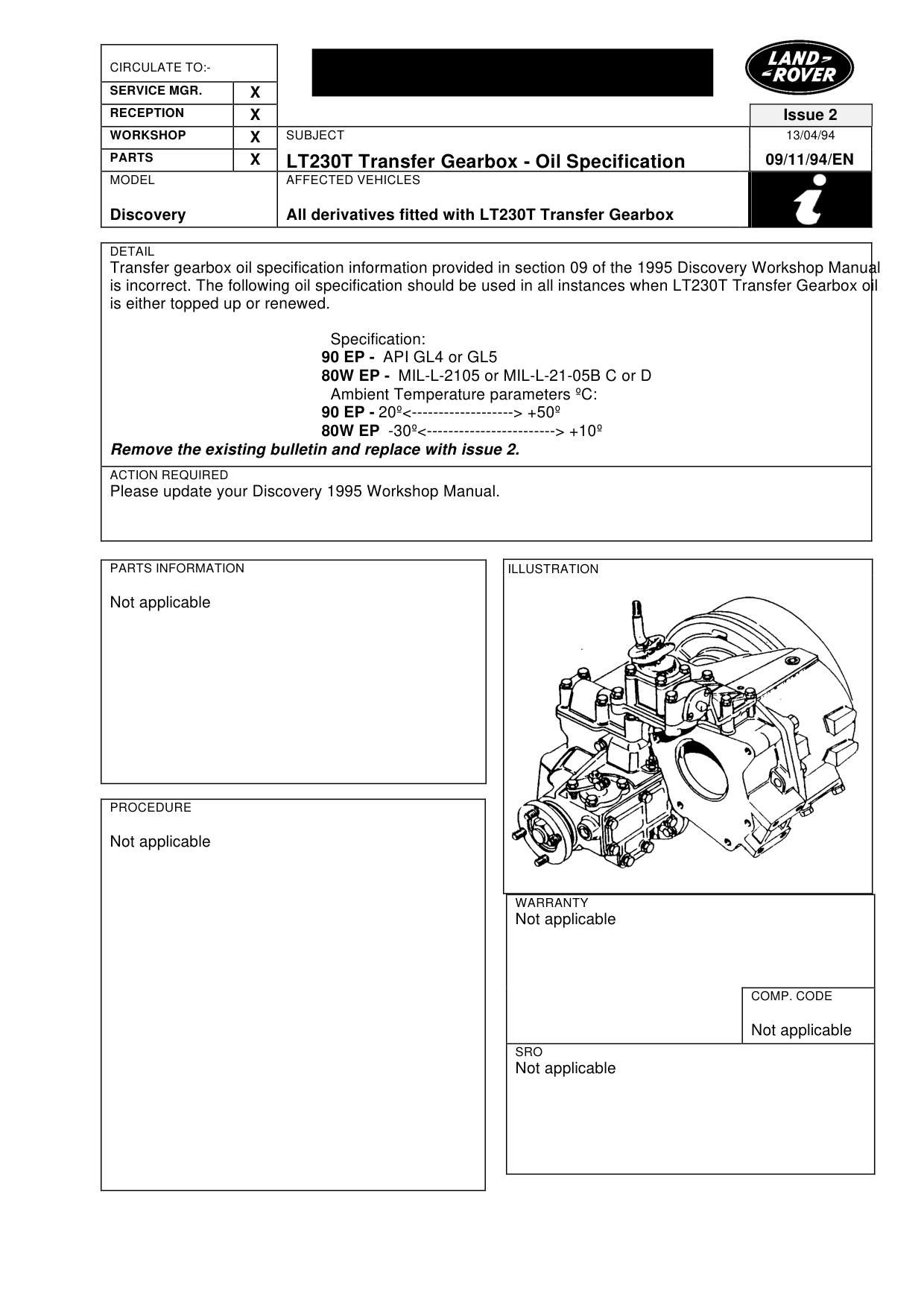

LT230T Transfer Gearbox - Oil Specification

MODEL AFFECTED VEHICLES

Discovery All derivatives fitted with LT230T Transfer Gearbox

DETAIL

Transfer gearbox oil specification information provided in section 09 of the 1995 Discovery Workshop Manual is incorrect. The following oil specification should be used in all instances when LT230T Transfer Gearbox oil is either topped up or renewed.

Specification: 90 EP - API GL4 or GL5 80W EP - MIL-L-2105 or MIL-L-21-05B C or D Ambient Temperature parameters ºC: 90 EP - 20º<-------------------> +50º 80W EP -30º<------------------------> +10º Remove the existing bulletin and replace with issue 2.

ACTION REQUIRED

Please update your Discovery 1995 Workshop Manual.

PARTS INFORMATION

Not applicable

PROCEDURE

Not applicable

Issue 2 13/04/94

09/11/94/EN

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
