V8 REAR TRANSMISSION MOUNT-VIBRATION

Model

Range Rover Classic V8-Automatic and Manual Discovery V8-Automatic and Manual

Affected vehicles

649378 - 658364 078010 - 127634

Date

1995-03-06

Reference

06/03/95

Bulletin text

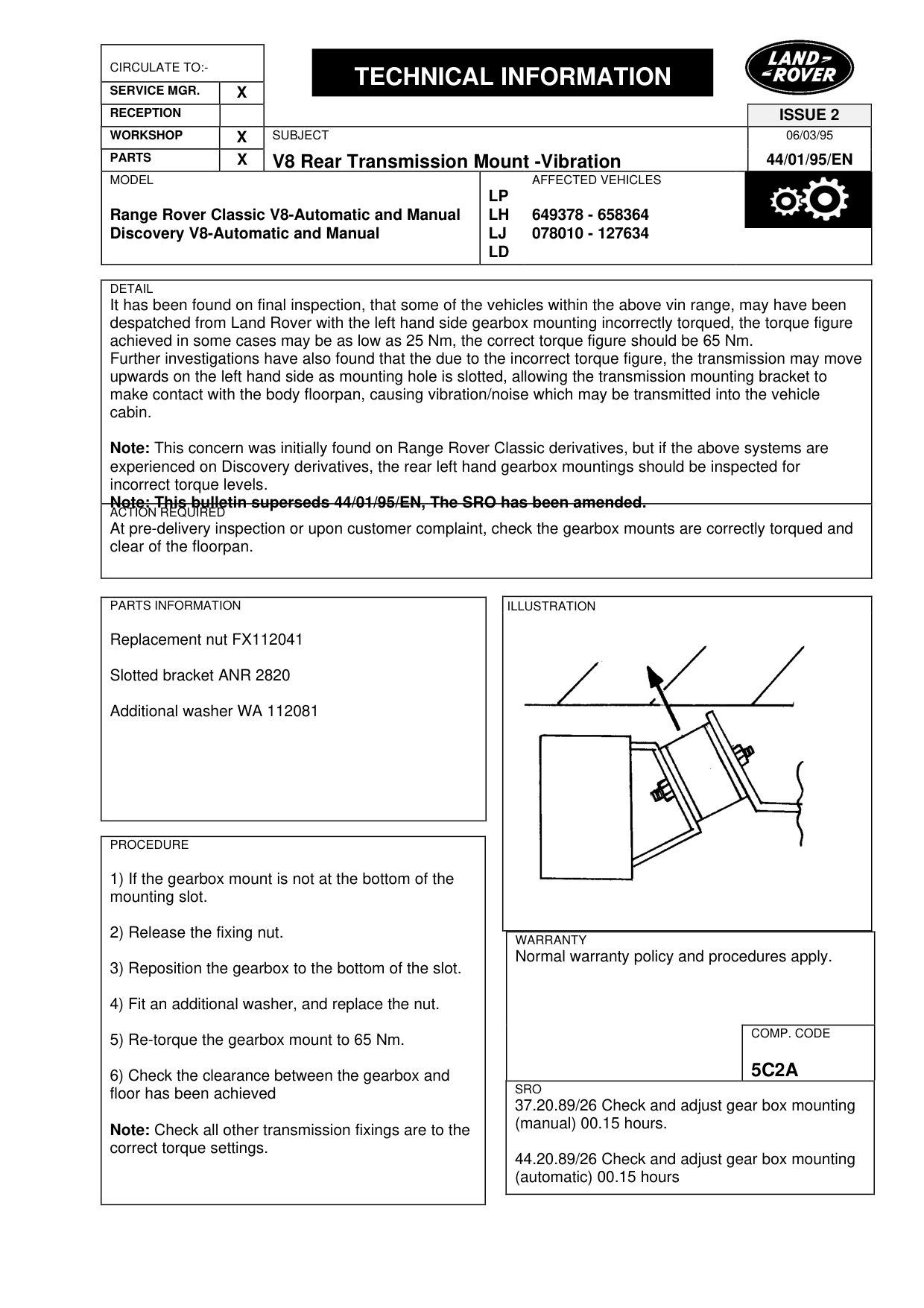

V8 Rear Transmission Mount -Vibration

MODEL

Range Rover Classic V8-Automatic and Manual Discovery V8-Automatic and Manual

DETAIL

It has been found on final inspection, that some of the vehicles within the above vin range, may have been despatched from Land Rover with the left hand side gearbox mounting incorrectly torqued, the torque figure achieved in some cases may be as low as 25 Nm, the correct torque figure should be 65 Nm. Further investigations have also found that the due to the incorrect torque figure, the transmission may move upwards on the left hand side as mounting hole is slotted, allowing the transmission mounting bracket to make contact with the body floorpan, causing vibration/noise which may be transmitted into the vehicle cabin.

Note: This concern was initially found on Range Rover Classic derivatives, but if the above systems are experienced on Discovery derivatives, the rear left hand gearbox mountings should be inspected for incorrect torque levels. Note: This bulletin superseds 44/01/95/EN, The SRO has been amended.

ACTION REQUIRED

At pre-delivery inspection or upon customer complaint, check the gearbox mounts are correctly torqued and clear of the floorpan.

PARTS INFORMATION

Replacement nut FX112041

Slotted bracket ANR 2820

Additional washer WA 112081

PROCEDURE

1) If the gearbox mount is not at the bottom of the mounting slot.

2) Release the fixing nut.

3) Reposition the gearbox to the bottom of the slot.

4) Fit an additional washer, and replace the nut.

5) Re-torque the gearbox mount to 65 Nm.

6) Check the clearance between the gearbox and floor has been achieved

Note: Check all other transmission fixings are to the correct torque settings.

ISSUE 2 06/03/95 44/01/95/EN

AFFECTED VEHICLES

LP LH 649378 - 658364 LJ 078010 - 127634 LD

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

5C2A

SRO

37.20.89/26 Check and adjust gear box mounting (manual) 00.15 hours.

44.20.89/26 Check and adjust gear box mounting (automatic) 00.15 hours
