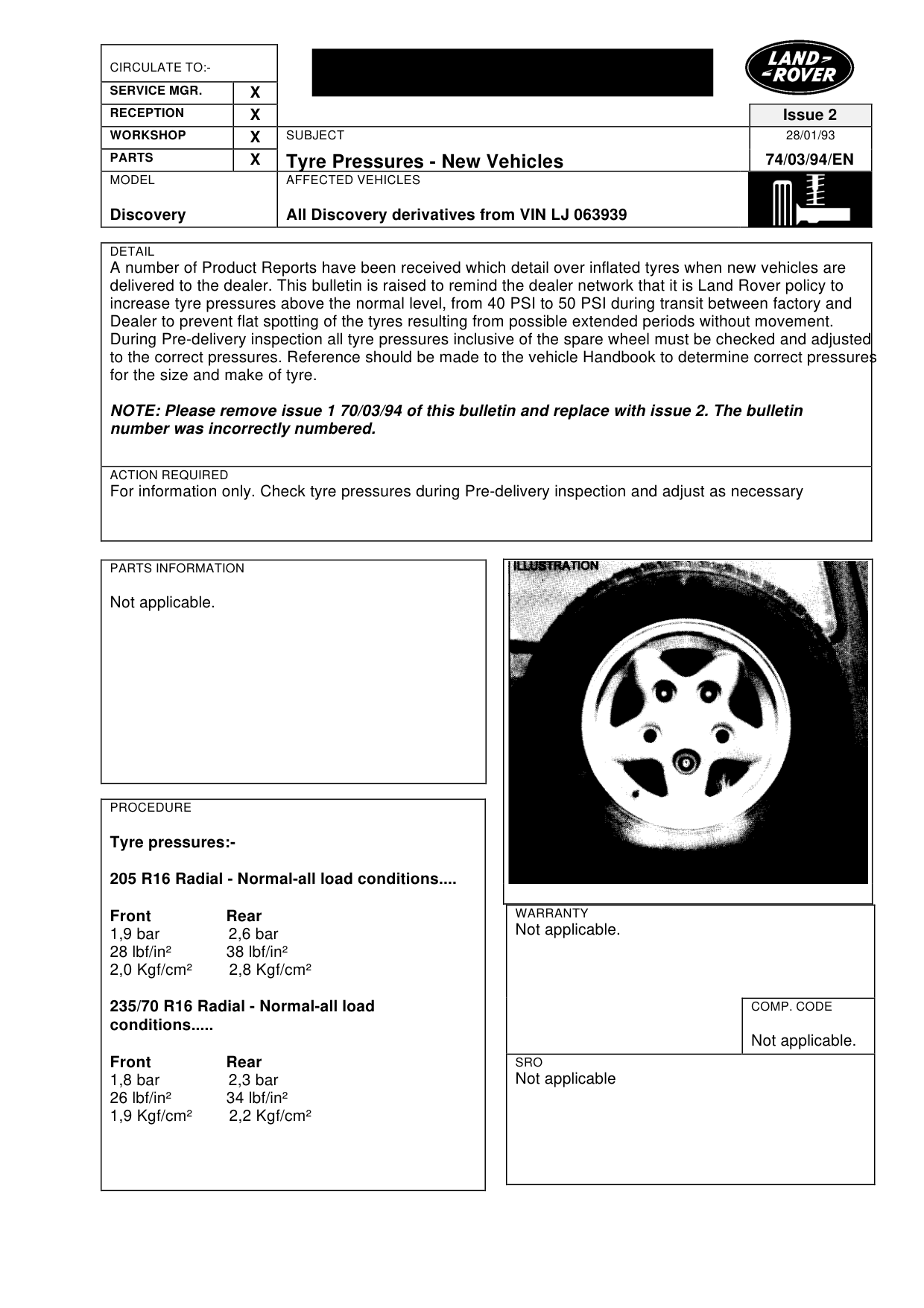

Tyre pressures - new vehicles

TYRE PRESSURES - NEW VEHICLES

Model

Discovery

Affected vehicles

All Discovery derivatives from VIN LJ 063939

Date

1993-01-28

Reference

28/01/93

Bulletin text

Tyre Pressures - New Vehicles

MODEL AFFECTED VEHICLES

Discovery All Discovery derivatives from VIN LJ 063939

DETAIL

A number of Product Reports have been received which detail over inflated tyres when new vehicles are delivered to the dealer. This bulletin is raised to remind the dealer network that it is Land Rover policy to increase tyre pressures above the normal level, from 40 PSI to 50 PSI during transit between factory and Dealer to prevent flat spotting of the tyres resulting from possible extended periods without movement. During Pre-delivery inspection all tyre pressures inclusive of the spare wheel must be checked and adjusted to the correct pressures. Reference should be made to the vehicle Handbook to determine correct pressures for the size and make of tyre.

NOTE: Please remove issue 1 70/03/94 of this bulletin and replace with issue 2. The bulletin number was incorrectly numbered.

ACTION REQUIRED

For information only. Check tyre pressures during Pre-delivery inspection and adjust as necessary

PARTS INFORMATION

Not applicable.

PROCEDURE

Tyre pressures:-

205 R16 Radial - Normal-all load conditions....

Front Rear 1,9 bar 2,6 bar 28 lbf/in² 38 lbf/in² 2,0 Kgf/cm² 2,8 Kgf/cm²

235/70 R16 Radial - Normal-all load conditions.....

Front Rear 1,8 bar 2,3 bar 26 lbf/in² 34 lbf/in² 1,9 Kgf/cm² 2,2 Kgf/cm²

Issue 2 28/01/93

74/03/94/EN

WARRANTY

Not applicable.

COMP. CODE

Not applicable.

SRO

Not applicable
