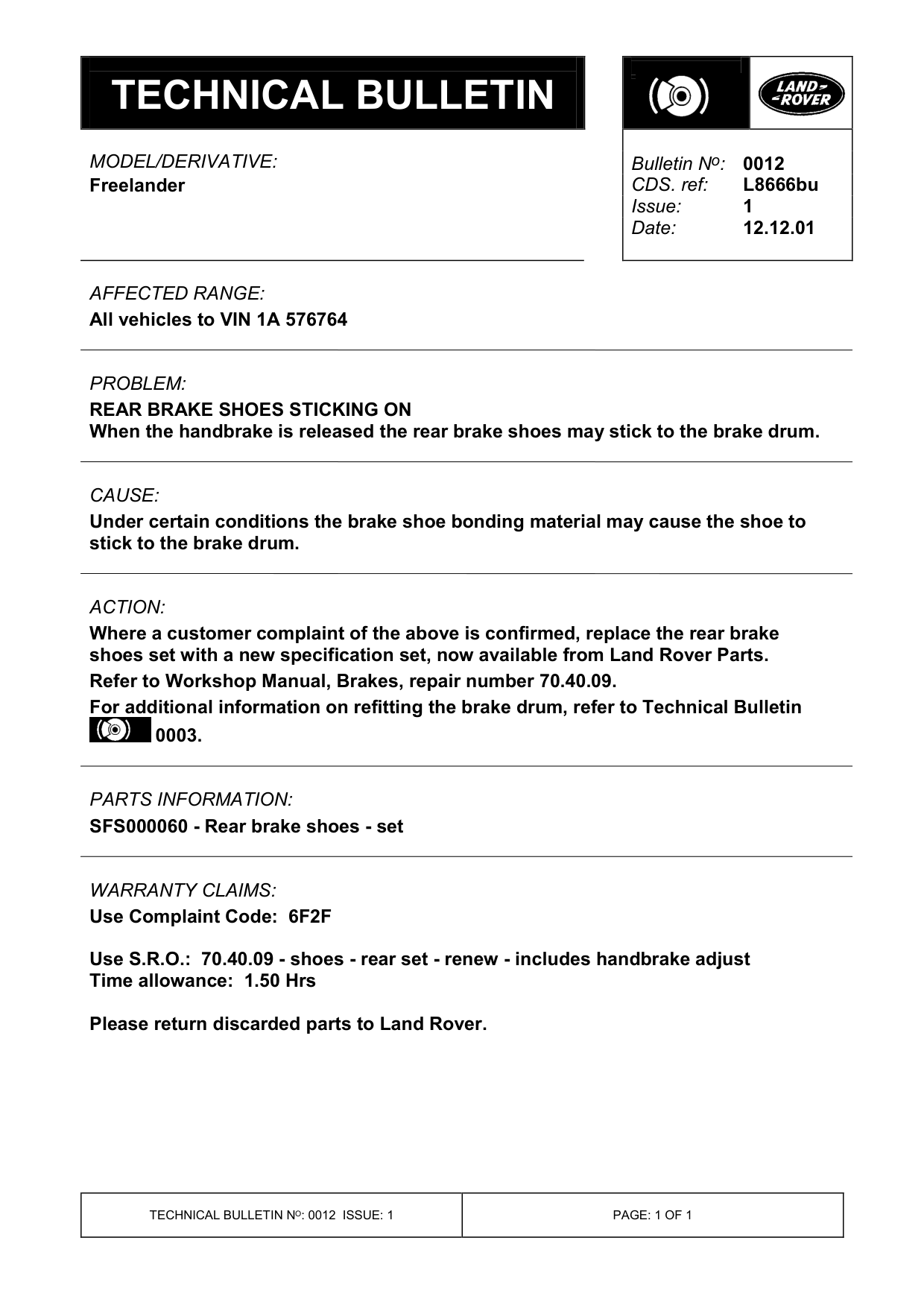

Rear brake shoes sticking on

REAR BRAKE SHOES STICKING ON

Model

Freelander

Affected vehicles

All vehicles to VIN 1A 576764

Date

2001-12-12

Reference

Bulletin 0012, CDS ref L8666bu

Bulletin text

Freelander

AFFECTED RANGE:

All vehicles to VIN 1A 576764

PROBLEM:

REAR BRAKE SHOES STICKING ON When the handbrake is released the rear brake shoes may stick to the brake drum.

CAUSE:

Under certain conditions the brake shoe bonding material may cause the shoe to stick to the brake drum.

ACTION:

Where a customer complaint of the above is confirmed, replace the rear brake shoes set with a new specification set, now available from Land Rover Parts. Refer to Workshop Manual, Brakes, repair number 70.40.09. For additional information on refitting the brake drum, refer to Technical Bulletin 0003.

PARTS INFORMATION:

SFS000060 - Rear brake shoes - set

WARRANTY CLAIMS: Use Complaint Code: 6F2F

Use S.R.O.: 70.40.09 - shoes - rear set - renew - includes handbrake adjust Time allowance: 1.50 Hrs

Please return discarded parts to Land Rover.

Bulletin N o : 0012
