Warning lights illuminate during long descents

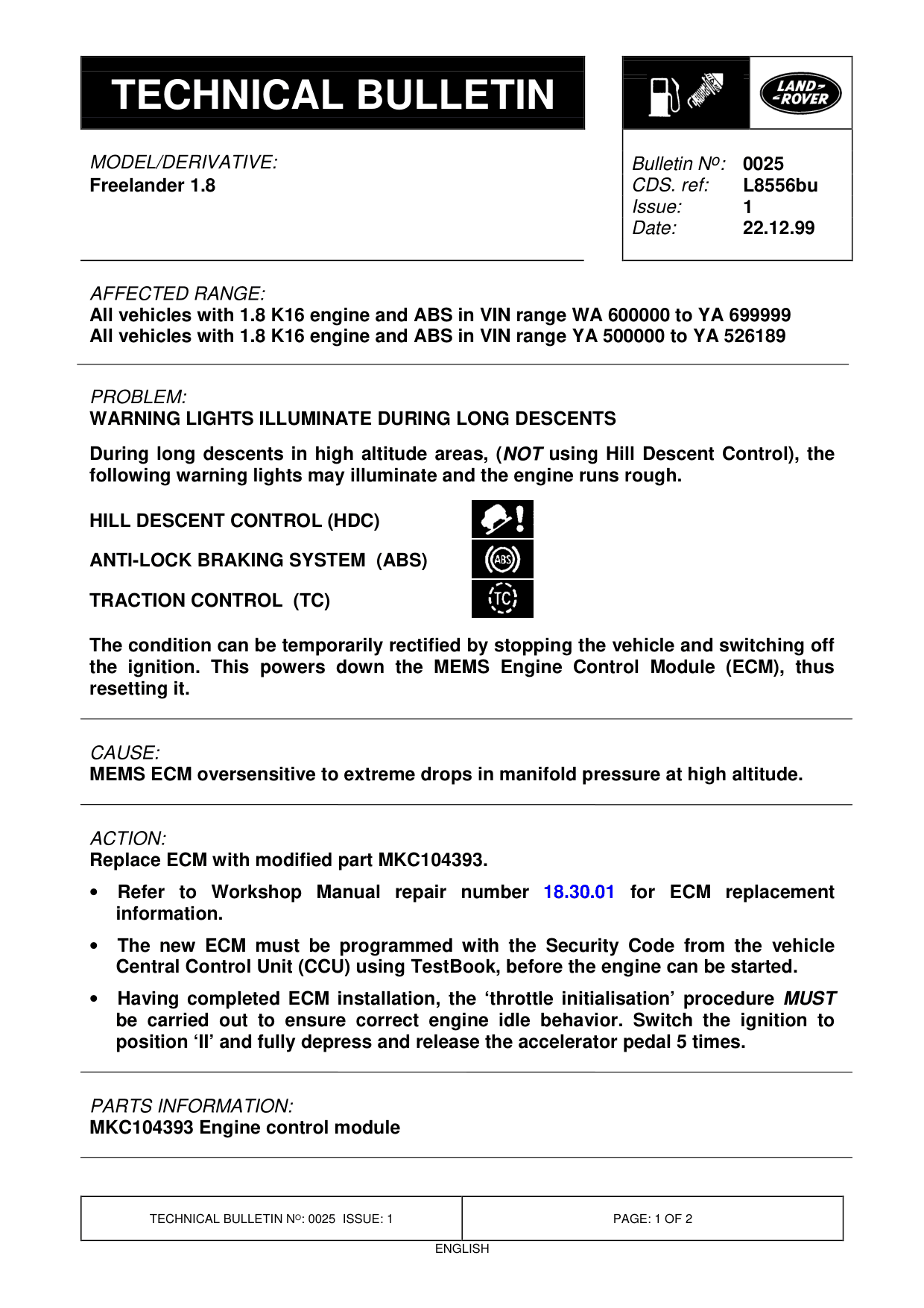

WARNING LIGHTS ILLUMINATE DURING LONG DESCENTS

Model

Freelander 1.8

Affected vehicles

All vehicles with 1.8 K16 engine and ABS in VIN range WA 600000 to YA 699999 All vehicles with 1.8 K16 engine and ABS in VIN range YA 500000 to YA 526189

Date

1999-12-22

Reference

Bulletin 0025, CDS ref L8556bu

Bulletin text

Freelander 1.8

AFFECTED RANGE:

All vehicles with 1.8 K16 engine and ABS in VIN range WA 600000 to YA 699999 All vehicles with 1.8 K16 engine and ABS in VIN range YA 500000 to YA 526189

PROBLEM:

WARNING LIGHTS ILLUMINATE DURING LONG DESCENTS During long descents in high altitude areas, (NOT using Hill Descent Control), the following warning lights may illuminate and the engine runs rough.

HILL DESCENT CONTROL (HDC)

ANTI-LOCK BRAKING SYSTEM (ABS)

TRACTION CONTROL (TC)

The condition can be temporarily rectified by stopping the vehicle and switching off the ignition. This powers down the MEMS Engine Control Module (ECM), thus resetting it.

CAUSE:

MEMS ECM oversensitive to extreme drops in manifold pressure at high altitude.

ACTION:

Replace ECM with modified part MKC104393. Refer to Workshop Manual repair number 18.30.01 for ECM replacement • information. The new ECM must be programmed with the Security Code from the vehicle • Central Control Unit (CCU) using TestBook, before the engine can be started. Having completed ECM installation, the ‘throttle initialisation’ procedure MUST • be carried out to ensure correct engine idle behavior. Switch the ignition to position ‘II’ and fully depress and release the accelerator pedal 5 times.

PARTS INFORMATION:

MKC104393 Engine control module

Bulletin N o : 0025 L8556bu 1 22.12.99

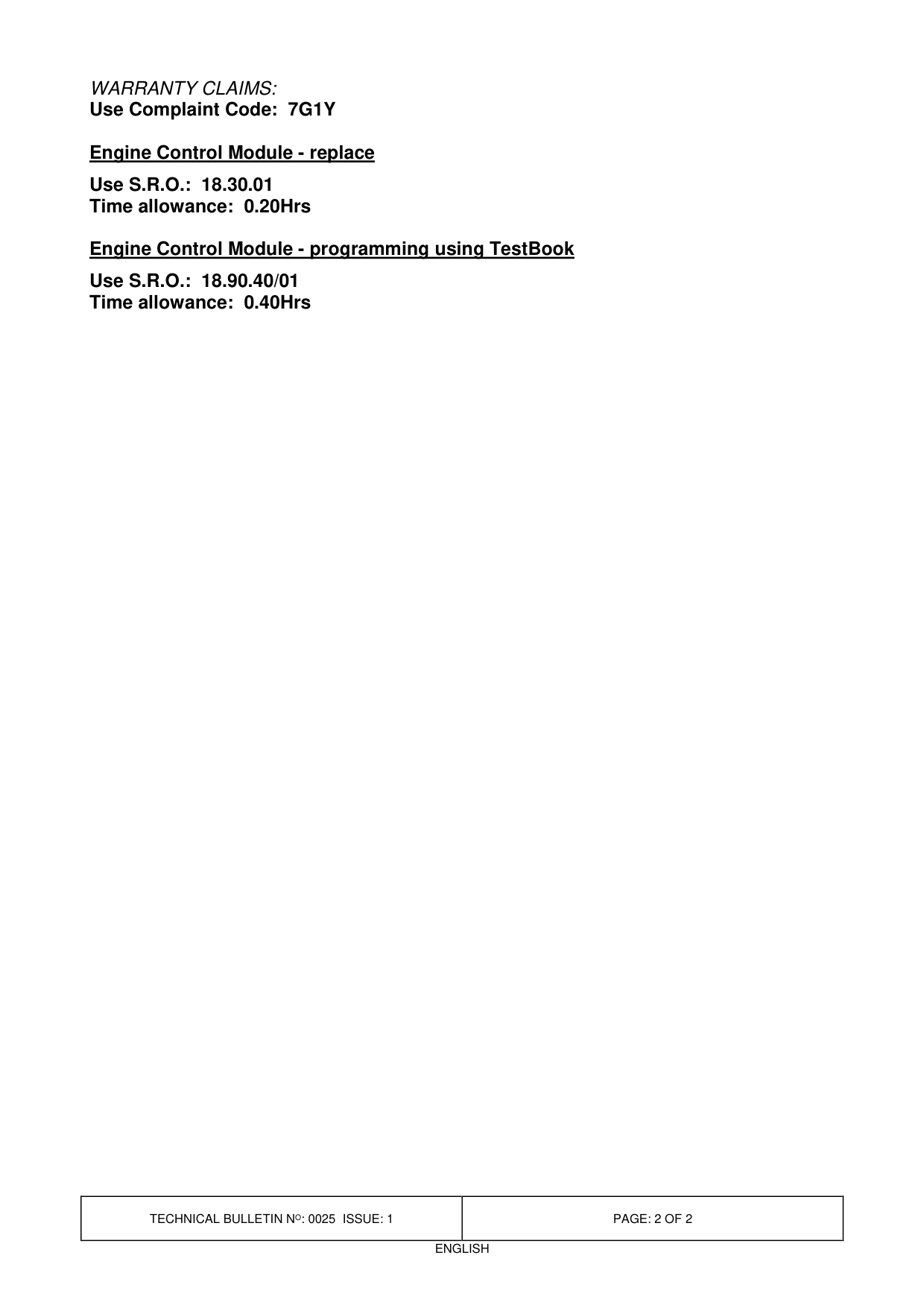

WARRANTY CLAIMS: Use Complaint Code: 7G1Y

Engine Control Module - replace Use S.R.O.: 18.30.01 Time allowance: 0.20Hrs

Engine Control Module - programming using TestBook Use S.R.O.: 18.90.40/01 Time allowance: 0.40Hrs
