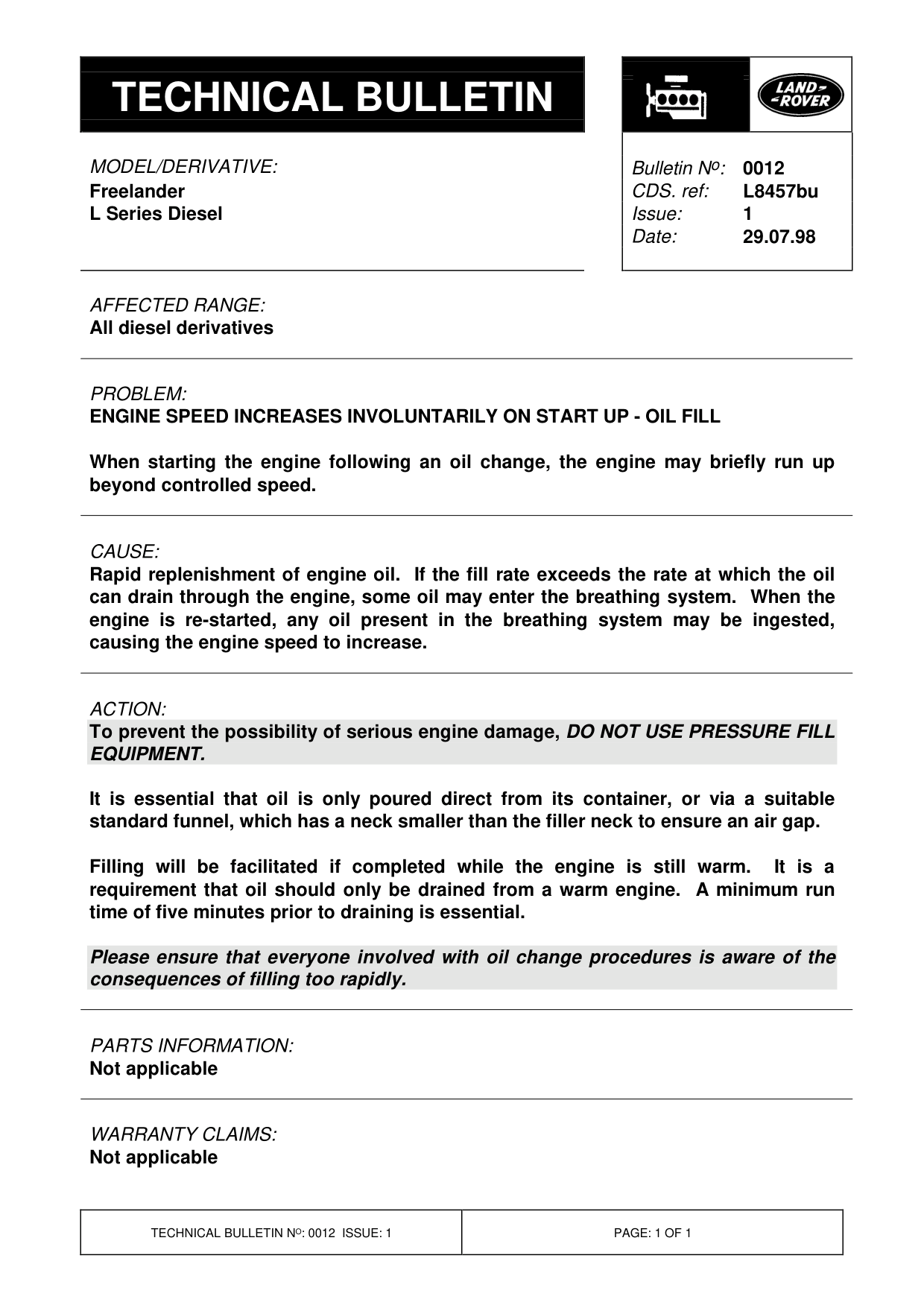

Engine speed increases involuntarily on start up - oil fill

ENGINE SPEED INCREASES INVOLUNTARILY ON START UP - OIL FILL

Model

Freelander L Series Diesel

Affected vehicles

All diesel derivatives

Date

1998-07-29

Reference

Bulletin 0012, CDS ref L8457bu

Bulletin text

Freelander L Series Diesel

AFFECTED RANGE:

All diesel derivatives

PROBLEM:

ENGINE SPEED INCREASES INVOLUNTARILY ON START UP - OIL FILL

When starting the engine following an oil change, the engine may briefly run up beyond controlled speed.

CAUSE:

Rapid replenishment of engine oil. If the fill rate exceeds the rate at which the oil can drain through the engine, some oil may enter the breathing system. When the engine is re-started, any oil present in the breathing system may be ingested, causing the engine speed to increase.

ACTION:

To prevent the possibility of serious engine damage, DO NOT USE PRESSURE FILL EQUIPMENT.

It is essential that oil is only poured direct from its container, or via a suitable standard funnel, which has a neck smaller than the filler neck to ensure an air gap.

Filling will be facilitated if completed while the engine is still warm. It is a requirement that oil should only be drained from a warm engine. A minimum run time of five minutes prior to draining is essential.

Please ensure that everyone involved with oil change procedures is aware of the consequences of filling too rapidly.

PARTS INFORMATION:

Not applicable

WARRANTY CLAIMS: Not applicable

Bulletin N o : 0012 L8457bu 1 29.07.98
