Noise from top end of engine - tappets

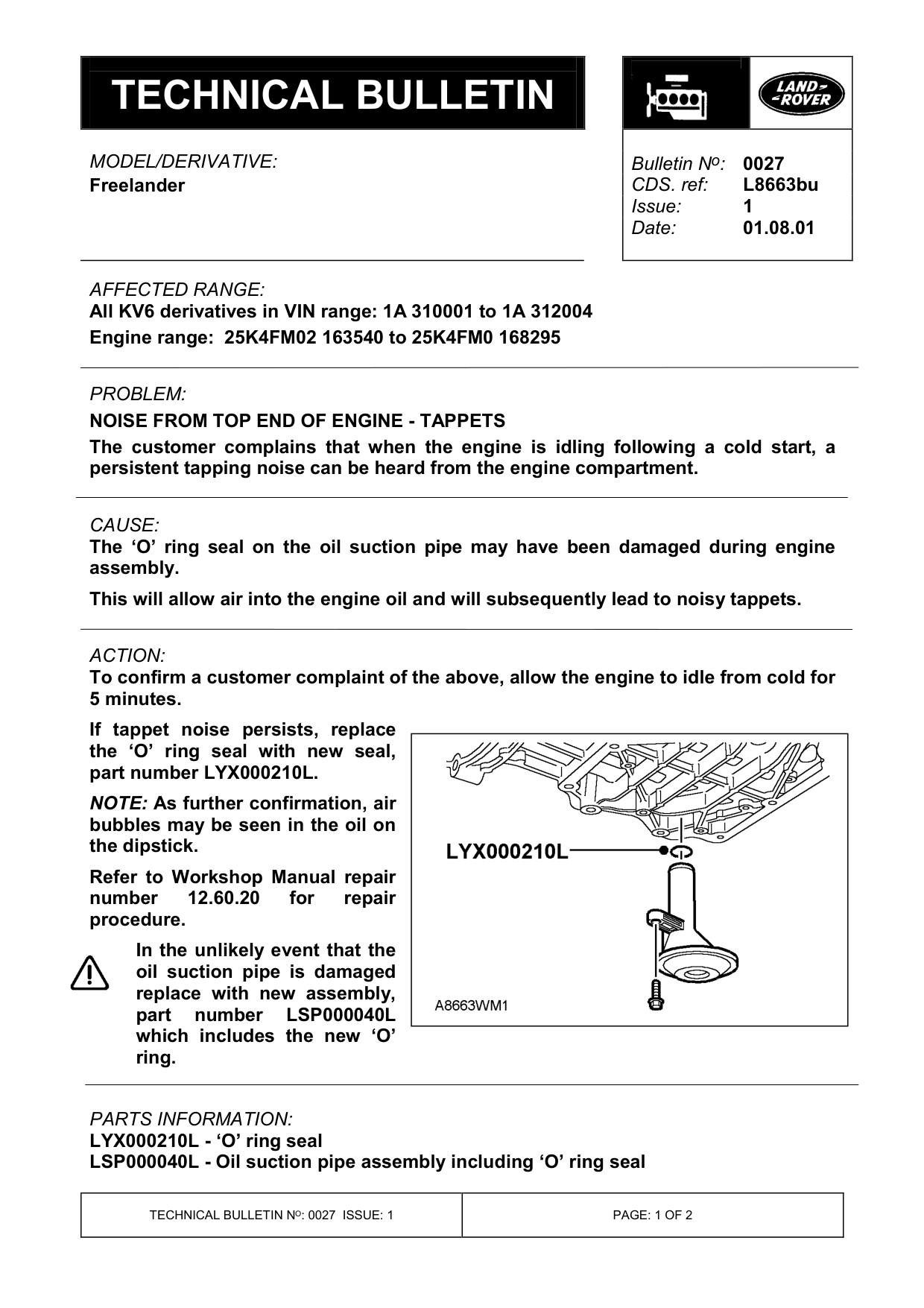

NOISE FROM TOP END OF ENGINE - TAPPETS

Model

Freelander

Affected vehicles

All KV6 derivatives in VIN range: 1A 310001 to 1A 312004 Engine range: 25K4FM02 163540 to 25K4FM0 168295

Date

2001-08-01

Reference

Bulletin 0027, CDS ref L8663bu

Bulletin text

Freelander

AFFECTED RANGE:

All KV6 derivatives in VIN range: 1A 310001 to 1A 312004 Engine range: 25K4FM02 163540 to 25K4FM0 168295

PROBLEM:

NOISE FROM TOP END OF ENGINE - TAPPETS The customer complains that when the engine is idling following a cold start, a persistent tapping noise can be heard from the engine compartment.

CAUSE:

The ‘O’ ring seal on the oil suction pipe may have been damaged during engine assembly. This will allow air into the engine oil and will subsequently lead to noisy tappets.

ACTION:

To confirm a customer complaint of the above, allow the engine to idle from cold for 5 minutes. If tappet noise persists, replace the ‘O’ ring seal with new seal, part number LYX000210L. NOTE: As further confirmation, air bubbles may be seen in the oil on the dipstick. Refer to Workshop Manual repair number 12.60.20 for repair procedure. In the unlikely event that the oil suction pipe is damaged replace with new assembly, part number LSP000040L which includes the new ‘O’ ring.

PARTS INFORMATION:

LYX000210L - ‘O’ ring seal LSP000040L - Oil suction pipe assembly including ‘O’ ring seal

Bulletin N o : 0027

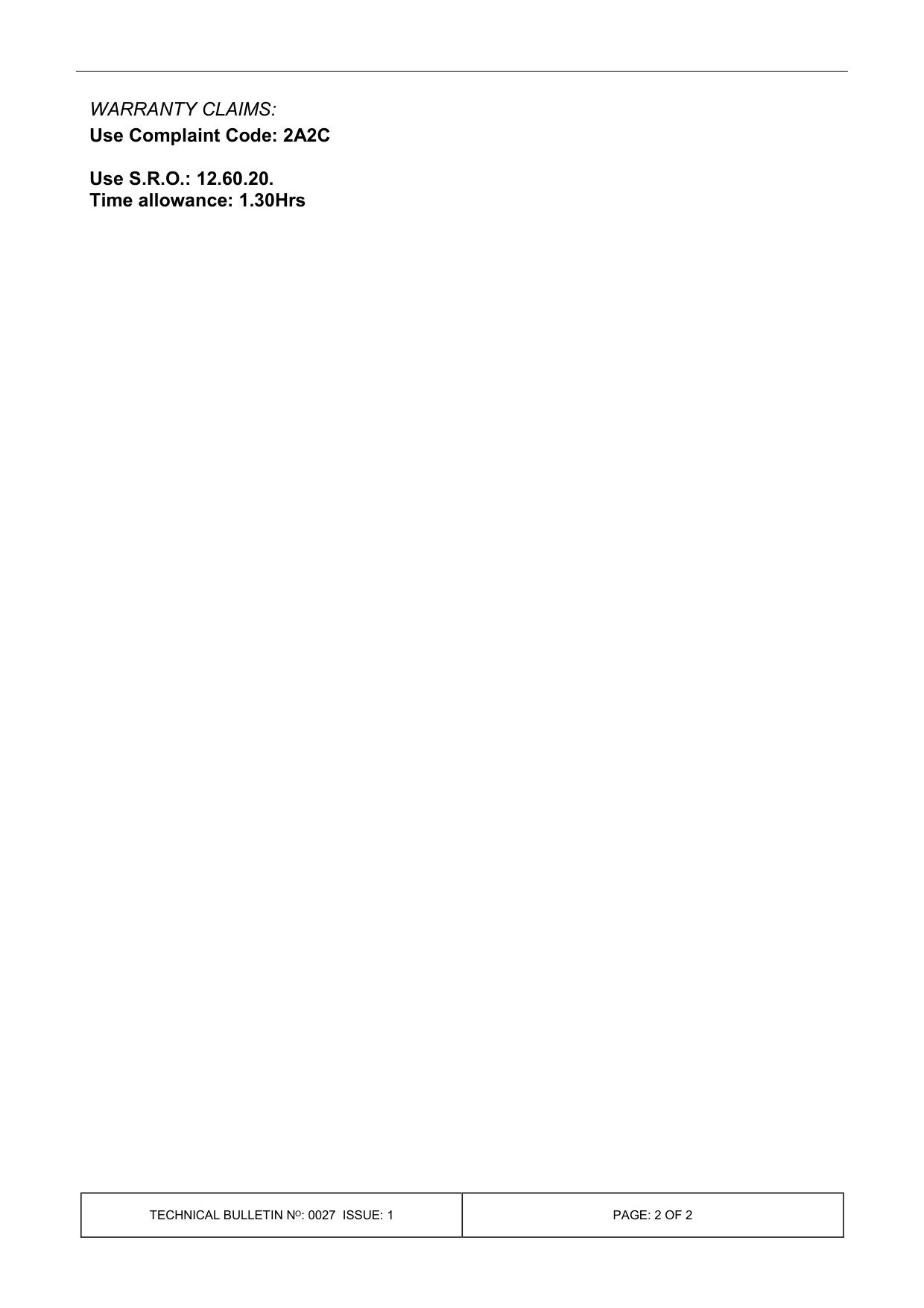

WARRANTY CLAIMS: Use Complaint Code: 2A2C

Use S.R.O.: 12.60.20. Time allowance: 1.30Hrs
