Oil leak from camshaft cover to camshaft carrier joint

OIL LEAK FROM CAMSHAFT COVER TO CAMSHAFT CARRIER JOINT

Model

Freelander 1.8

Affected vehicles

Vehicles with K16 1.8 engine up to VIN XA 677383 RE-ISSUE INFORMATION: Modified camshaft cover gasket details added and Complaint Code amended. Please destroy your existing copy and replace with this Issue 2.

Date

1999-12-01

Reference

Bulletin 0003, CDS ref L8375bu

Bulletin text

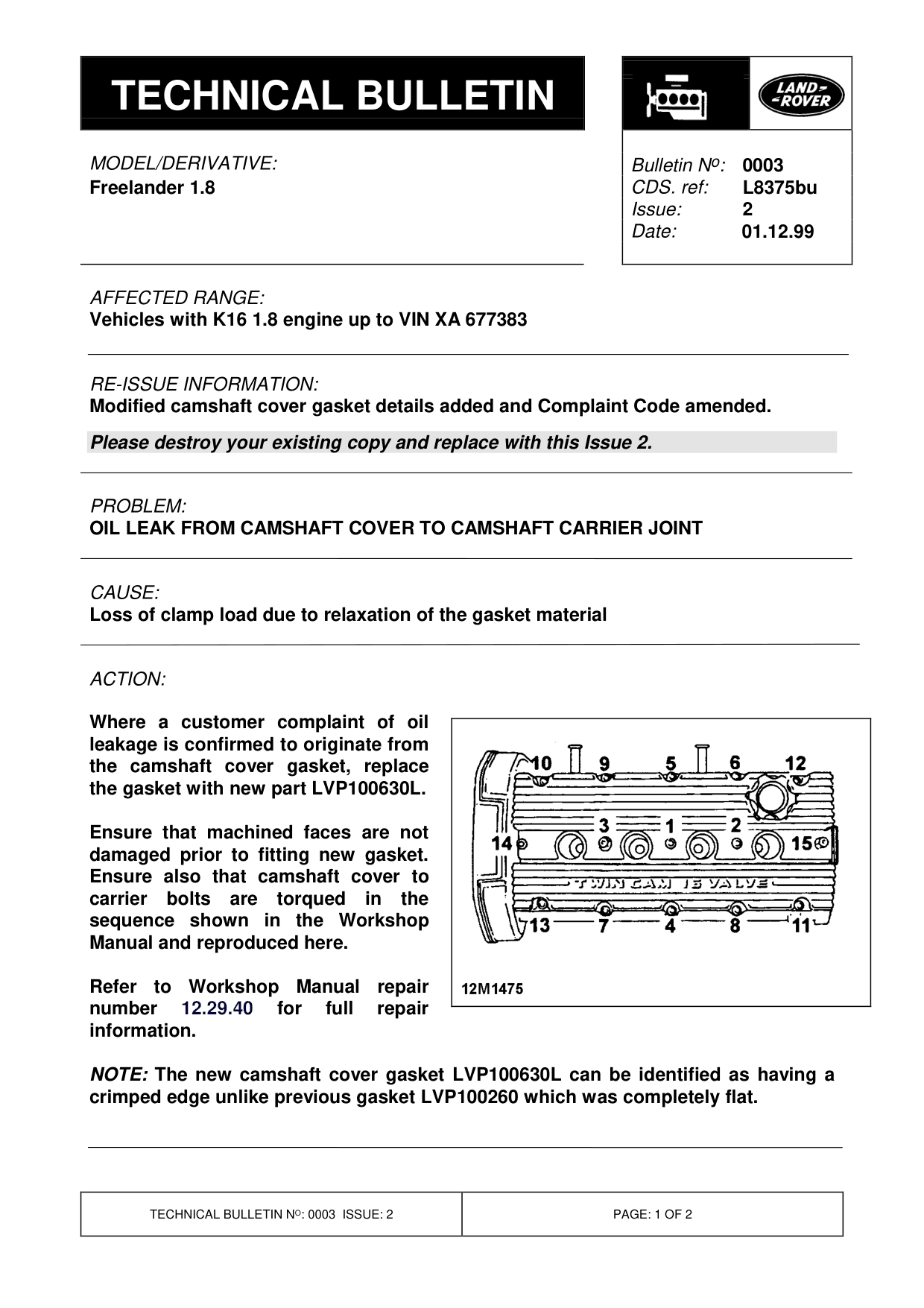

Freelander 1.8

AFFECTED RANGE:

Vehicles with K16 1.8 engine up to VIN XA 677383

RE-ISSUE INFORMATION: Modified camshaft cover gasket details added and Complaint Code amended. Please destroy your existing copy and replace with this Issue 2.

PROBLEM:

OIL LEAK FROM CAMSHAFT COVER TO CAMSHAFT CARRIER JOINT

CAUSE:

Loss of clamp load due to relaxation of the gasket material

ACTION:

Where a customer complaint of oil leakage is confirmed to originate from the camshaft cover gasket, replace the gasket with new part LVP100630L.

Ensure that machined faces are not damaged prior to fitting new gasket. Ensure also that camshaft cover to carrier bolts are torqued in the sequence shown in the Manual and reproduced here.

Refer to Manual repair number 12.29.40 for full repair information.

NOTE: The new camshaft cover gasket LVP100630L can be identified as having a crimped edge unlike previous gasket LVP100260 which was completely flat.

Bulletin N o : 0003 L8375bu 2 01.12.99

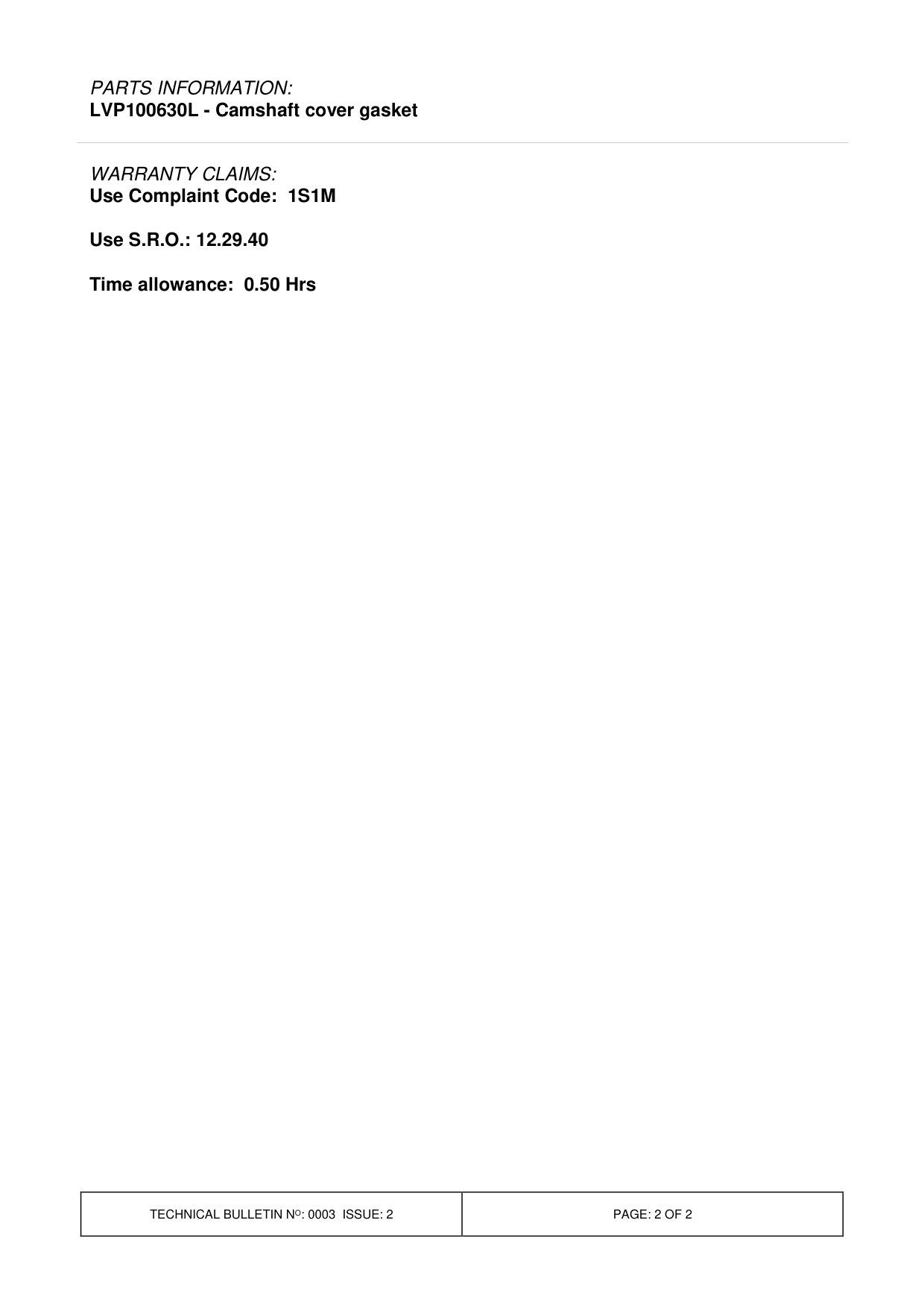

PARTS INFORMATION:

LVP100630L - Camshaft cover gasket

WARRANTY CLAIMS: Use Complaint Code: 1S1M

Use S.R.O.: 12.29.40

Time allowance: 0.50 Hrs
