Inlet manifold gasket - coolant leak

INLET MANIFOLD GASKET - COOLANT LEAK

Model

Freelander

Reference

Service action AD246

Bulletin text

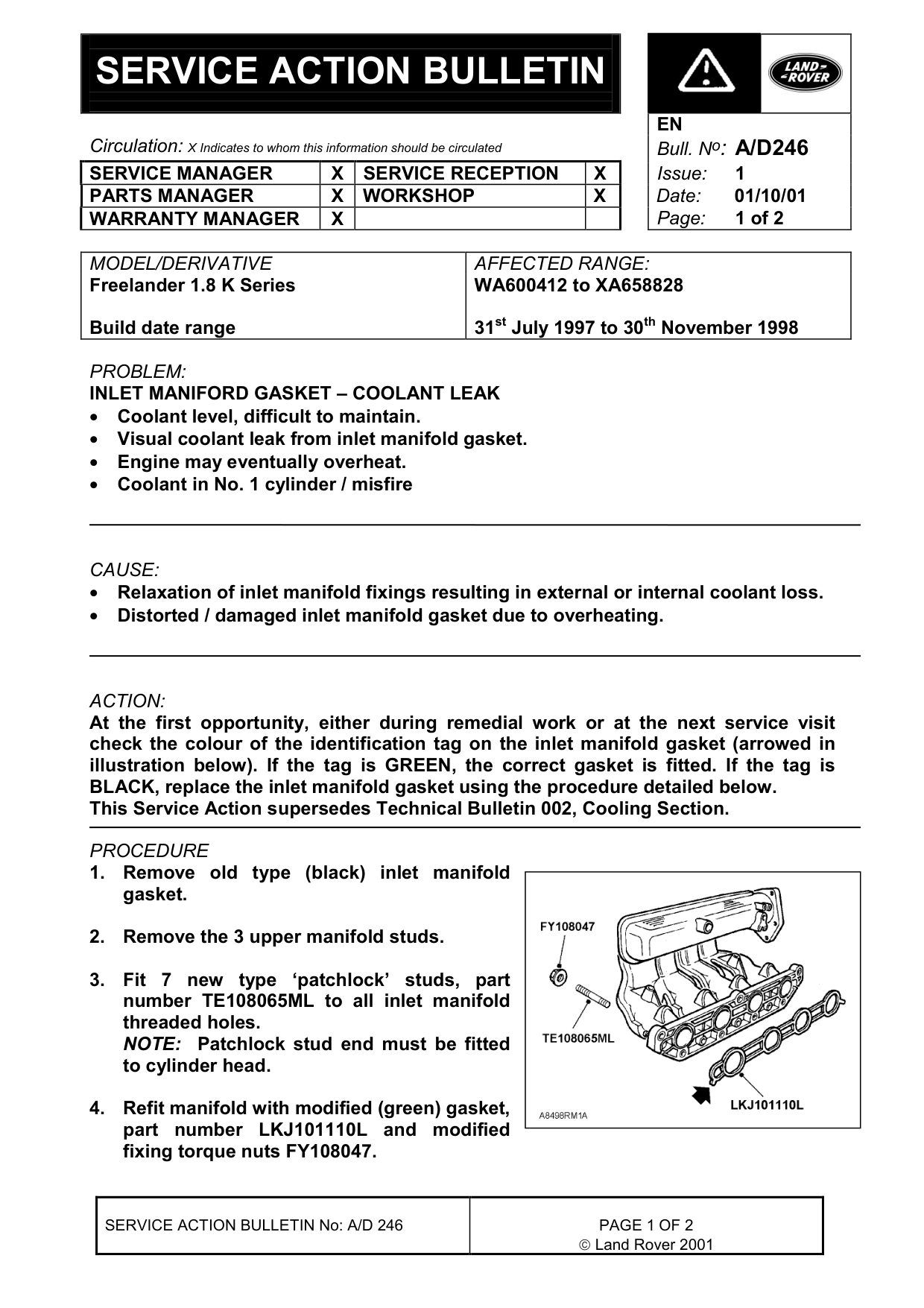

SERVICE ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

Freelander 1.8 K Series

Build date range

PROBLEM:

INLET MANIFORD GASKET - COOLANT LEAK • Coolant level, difficult to maintain. • Visual coolant leak from inlet manifold gasket. • Engine may eventually overheat. • Coolant in No. 1 cylinder / misfire

CAUSE:

• Relaxation of inlet manifold fixings resulting in external or internal coolant loss. • Distorted / damaged inlet manifold gasket due to overheating.

ACTION:

At the first opportunity, either during remedial work or at the next service visit check the colour of the identification tag on the inlet manifold gasket (arrowed in illustration below). If the tag is GREEN, the correct gasket is fitted. If the tag is BLACK, replace the inlet manifold gasket using the procedure detailed below. This Service Action supersedes Technical Bulletin 002, Cooling Section.

PROCEDURE

1. Remove old type (black) inlet manifold gasket.

2. Remove the 3 upper manifold studs.

3. Fit 7 new type ‘patchlock’ studs, part number TE108065ML to all inlet manifold threaded holes. NOTE: Patchlock stud end must be fitted to cylinder head.

4. Refit manifold with modified (green) gasket, part number LKJ101110L and modified fixing torque nuts FY108047.

SERVICE ACTION BULLETIN No: A/D 246

EN Bull. N o : A/D246

AFFECTED RANGE:

WA600412 to XA658828

31 st July 1997 to 30 th November 1998

 Land Rover 2001

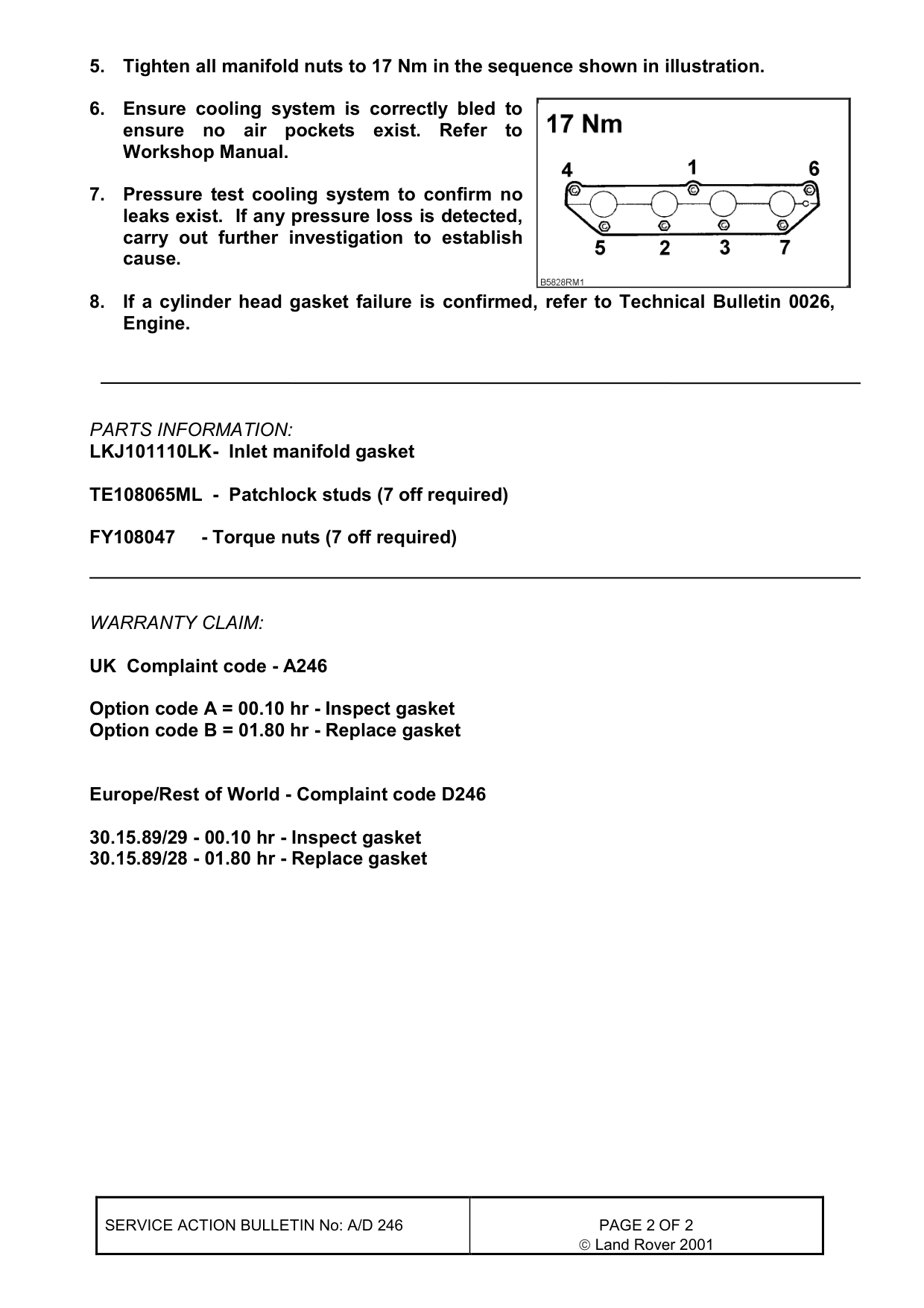

5. Tighten all manifold nuts to 17 Nm in the sequence shown in illustration.

6. Ensure cooling system is correctly bled to ensure no air pockets exist. Refer to Workshop Manual.

7. Pressure test cooling system to confirm no leaks exist. If any pressure loss is detected, carry out further investigation to establish cause.

8. If a cylinder head gasket failure is confirmed, refer to Technical Bulletin 0026, Engine.

PARTS INFORMATION:

LKJ101110LK - Inlet manifold gasket

TE108065ML - Patchlock studs (7 off required)

FY108047 - Torque nuts (7 off required)

WARRANTY CLAIM:

UK Complaint code - A246

Option code A = 00.10 hr - Inspect gasket Option code B = 01.80 hr - Replace gasket

Europe/Rest of World - Complaint code D246

30.15.89/29 - 00.10 hr - Inspect gasket 30.15.89/28 - 01.80 hr - Replace gasket

SERVICE ACTION BULLETIN No: A/D 246  Land Rover 2001
