Land Rover Freelander Technical Bulletins06 · Transmission and axles
06 · Transmission

Front drive shafts - change to part fitted

Make
Land Rover
Model
Freelander Technical Bulletins
Section
Front drive shafts - change to part fitted › Front drive shafts - change to part fitted
Transmission and axlesFront drive shafts - change to part fitted

FRONT DRIVE SHAFTS - CHANGE TO PART FITTED

Model
Freelander
Affected vehicles
All derivatives from VIN WA 610540 onwards
Date
1998-05-20
Reference
Bulletin 0002, CDS ref L8441bu

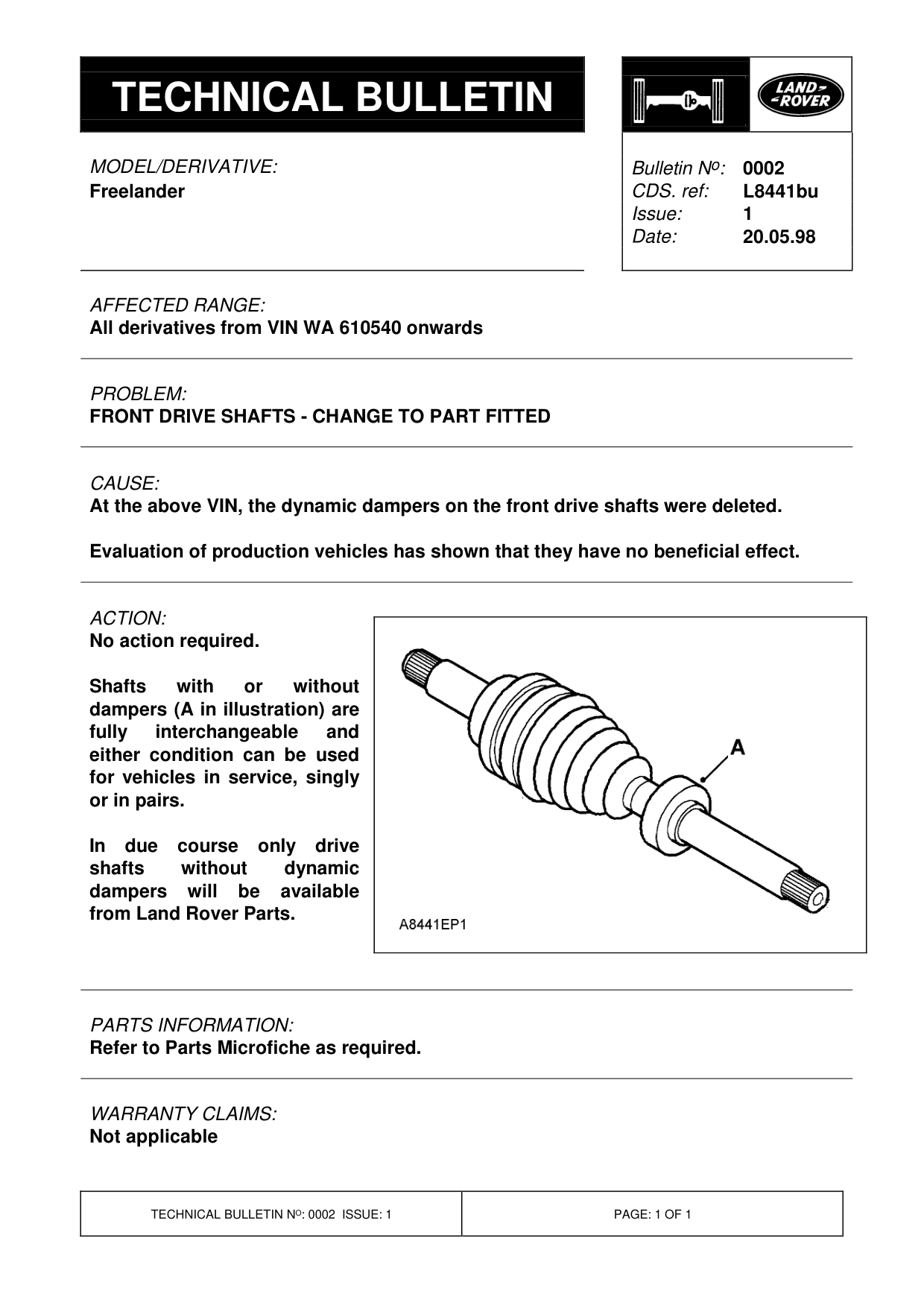

Front Drive Shafts - Change To Part Fitted – bulletin page 1

Bulletin text

Freelander

AFFECTED RANGE:

All derivatives from VIN WA 610540 onwards

PROBLEM:

FRONT DRIVE SHAFTS - CHANGE TO PART FITTED

CAUSE:

At the above VIN, the dynamic dampers on the front drive shafts were deleted.

Evaluation of production vehicles has shown that they have no beneficial effect.

ACTION:

No action required.

Shafts with or without dampers (A in illustration) are fully interchangeable and either condition can be used for vehicles in service, singly or in pairs.

In due course only drive shafts without dynamic dampers will be available from Land Rover Parts.

PARTS INFORMATION:

Refer to Parts Microfiche as required.

WARRANTY CLAIMS: Not applicable

Bulletin N o : 0002 L8441bu 1 20.05.98
