AIR CONDITIONING

DESCRIPTION AND OPERATION

82-11

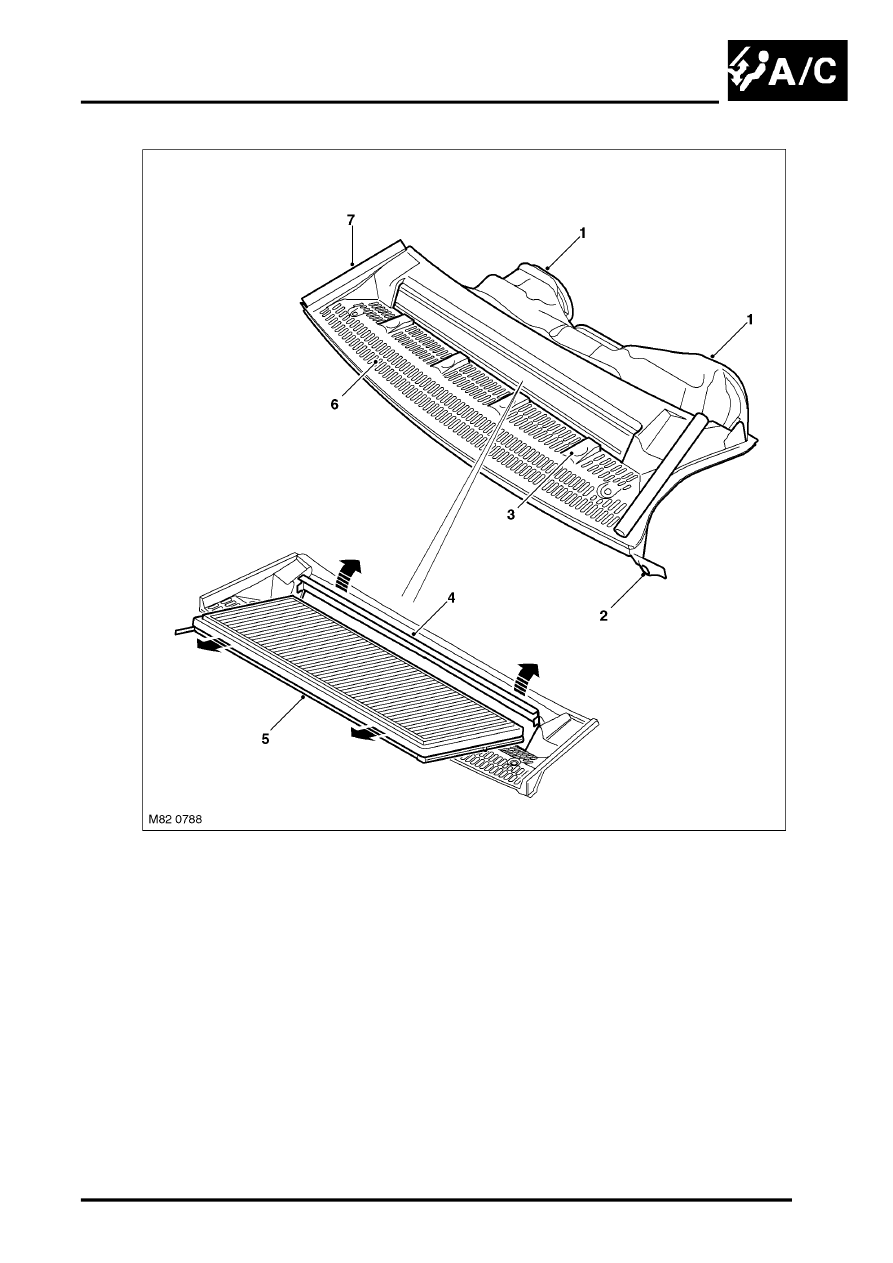

Air inlet Housing

1 Air outlet to heater assembly
2 Fixing lug
3 Filter flap catch
4 Filter flap

5 Particle/carbon filter
6 Inlet grille
7 Seal
