L322 Range Rover System Description and Operation
AUTOMATIC TRANSMISSION – ZF 5HP24
44-2-24 DESCRIPTION AND OPERATION

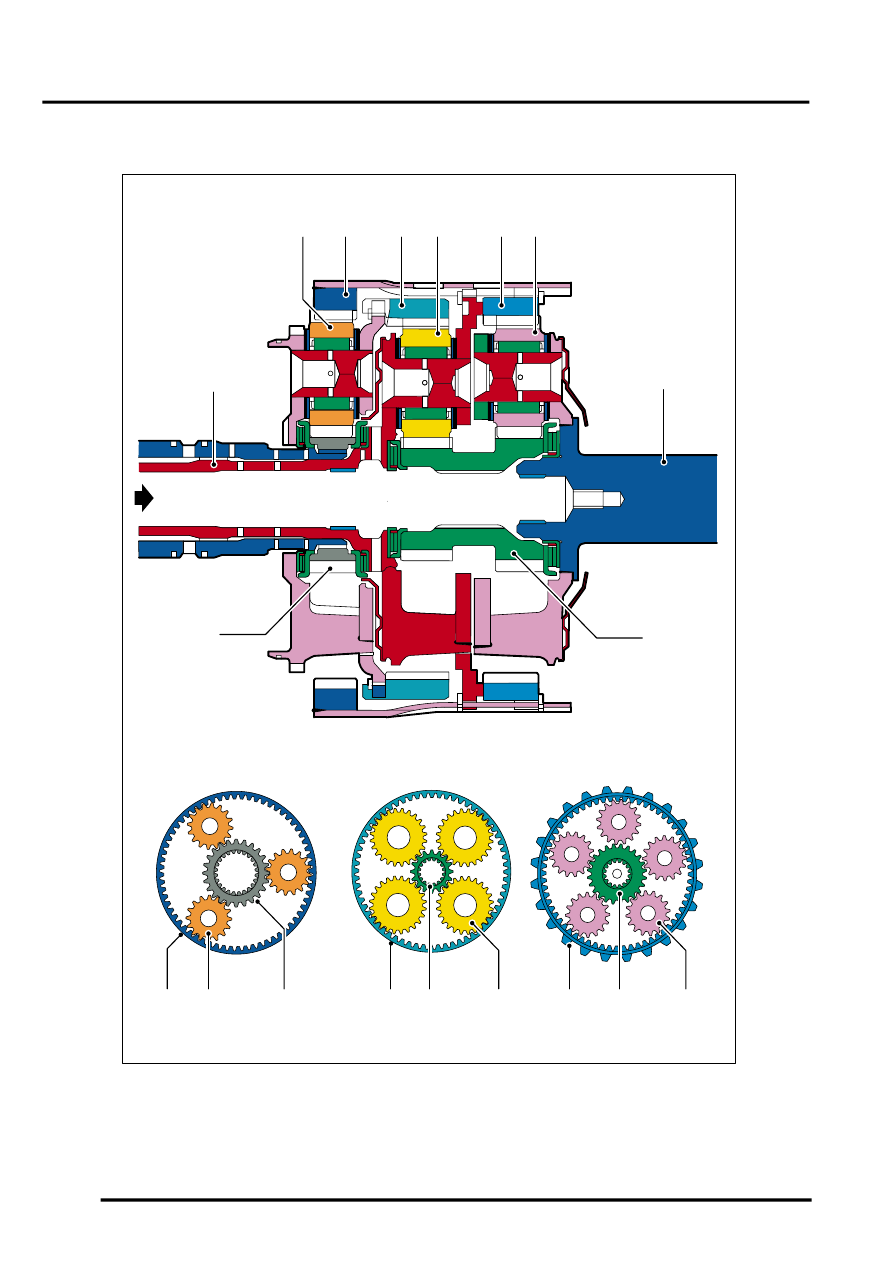

Planetary Gearset – Exploded View
1 Ring gear 1
2 O-ring
3 Snap ring
4 Planetary gearset 1
5 Planetary gearset 2
6 Planetary gearset 3
7 Snap ring
8 Ring gear 3
9 Intermediate shaft gear
10 Ring gear 2
11 Input shaft gear
12 Needle roller bearing
13 Snap ring
