L322 Range Rover System Description and Operation
AUTOMATIC TRANSMISSION – ZF 5HP24
DESCRIPTION AND OPERATION
44-2-7

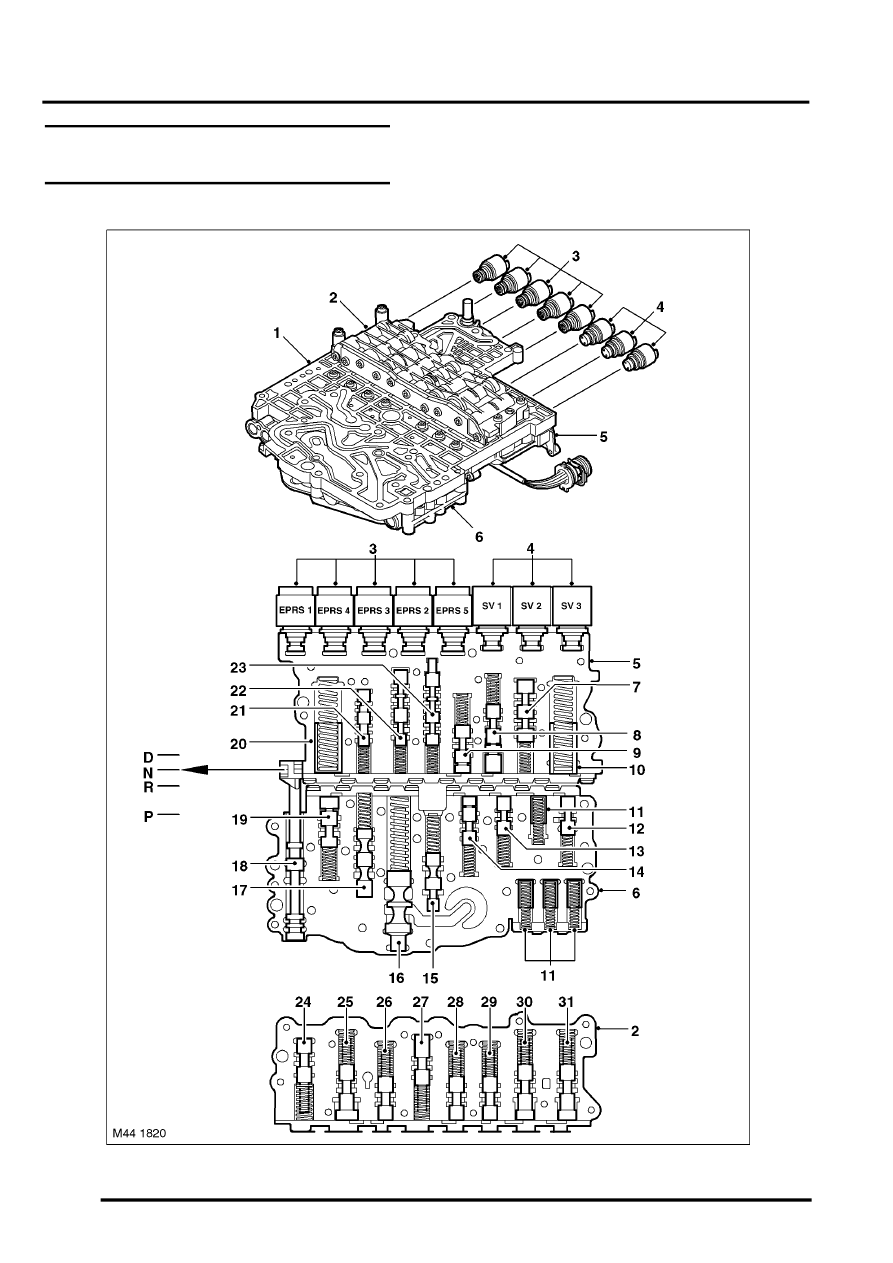

1 Valve body channel plate
2 Upper valve body
3 Pressure regulator solenoids
4 Shift control solenoids
5 Rear lower valve body
6 Forward lower valve body
7 Reverse gear valve (reverse protection)
8 Clutch 'D' valve
9 Clutch 'D' holding valve
10 Clutch 'C' damper
11 Pressure regulation dampers
12 Clutch 'D' holding valve
13 Clutch 'B' holding valve
14 Modulation pressure valve
15 Lubrication pressure valve
16 Main pressure valve
17 Torque converter pressure valve
18 Selector valve spool (manually operated)
19 Valve torque converter lock-up clutch
20 Clutch 'A' damper
21 Shift valve 1
22 Shift valve 2
23 Shift valve 3
24 Clutch 'A' valve
25 Cut-off valve 'A'
26 Holding valve 'E'
27 Clutch 'B' valve
28 Pressure reducing valve 2
29 Pressure reducing valve 1
30 Clutch 'E' valve
31 Clutch 'F' valve
