L322 Range Rover System Description and Operation
CHARGING AND STARTING
86-1-4
DESCRIPTION AND OPERATION

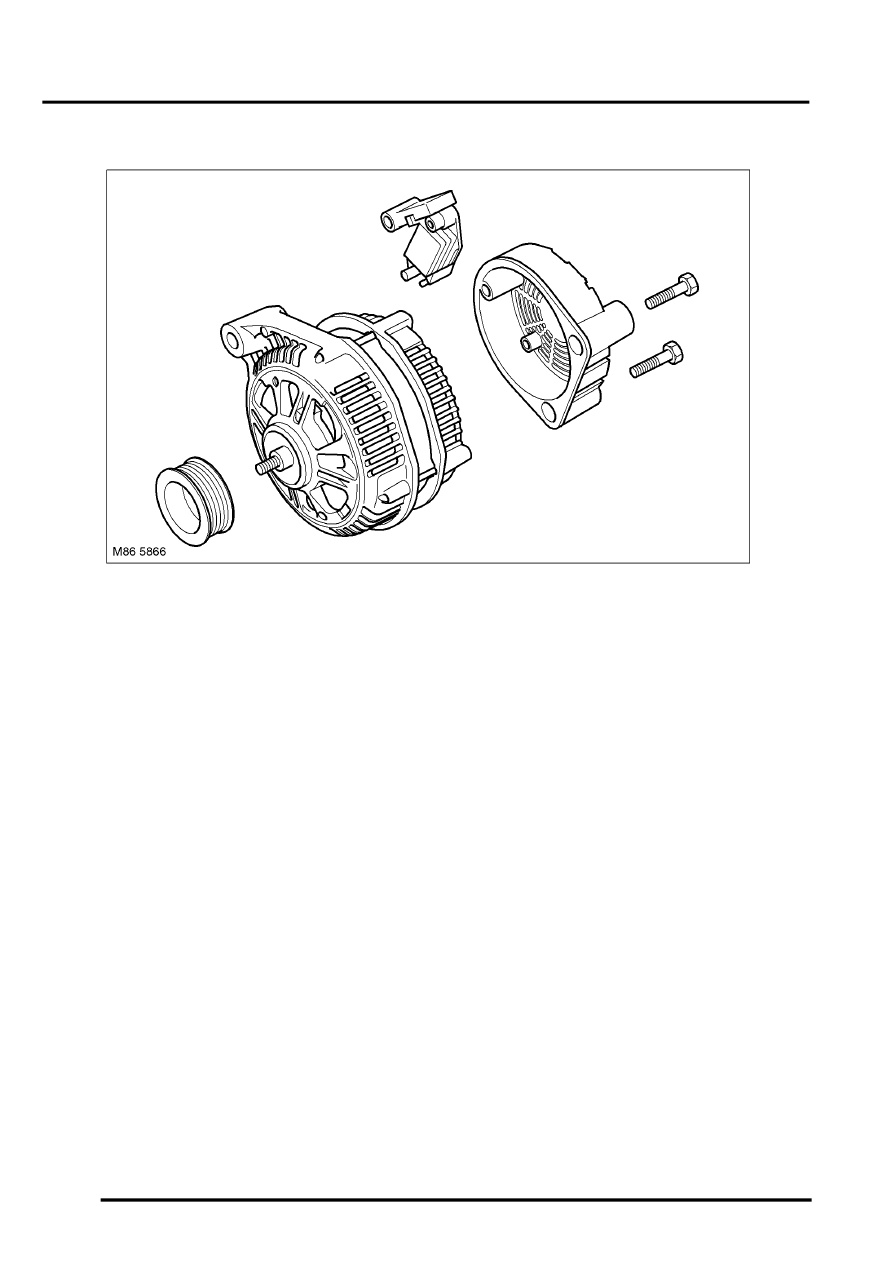

Td6 Alternator
The alternator is located at the front LH side of the engine, below the steering pump. The alternator has an output of
90/150 Amps and is manufactured by Valeo. A polyvee belt drives the alternator pulley, which in turn is driven from
the engine crankshaft pulley.
