L322 Range Rover System Description and Operation
DRIVE AND PROPELLER SHAFTS
DESCRIPTION AND OPERATION
47-7

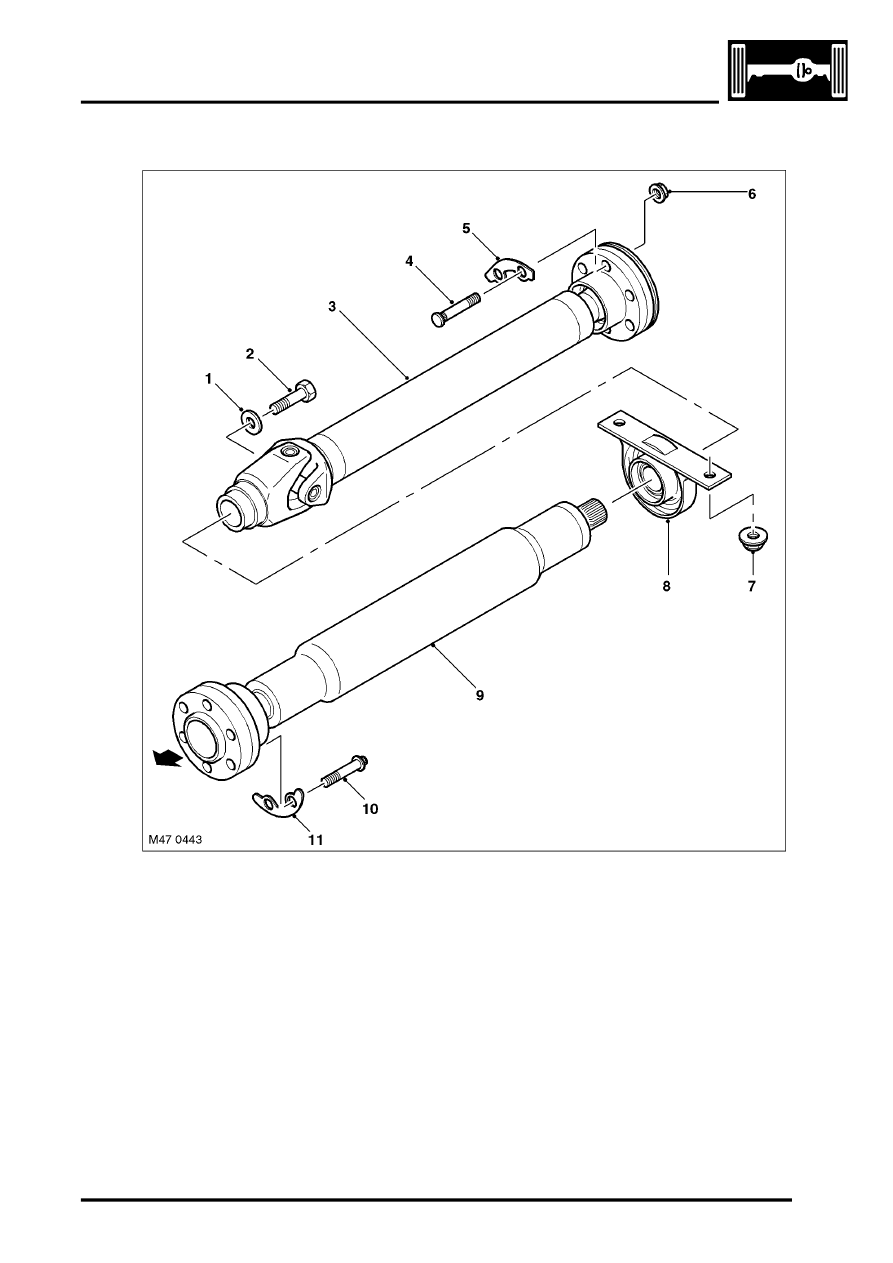

Rear Propeller Shaft
1 Washer
2 Bolt M12
3 Propeller shaft - Front
4 Stud (6 off)
5 Shim (3 off)
6 Nut (6 off)
7 Nut (2 off)
8 Shaft bearing assembly
9 Propeller shaft - Rear
10 Bolt M12 (6 off)
11 Shim (3 off).
The rear propeller shaft assembly comprises front and rear shaft assemblies and a centrally mounted shaft bearing.
The rear propeller shaft assembly has an overall length of 1280 mm.
