L322 Range Rover System Description and Operation
DRIVING AIDS
86-10-14 DESCRIPTION AND OPERATION

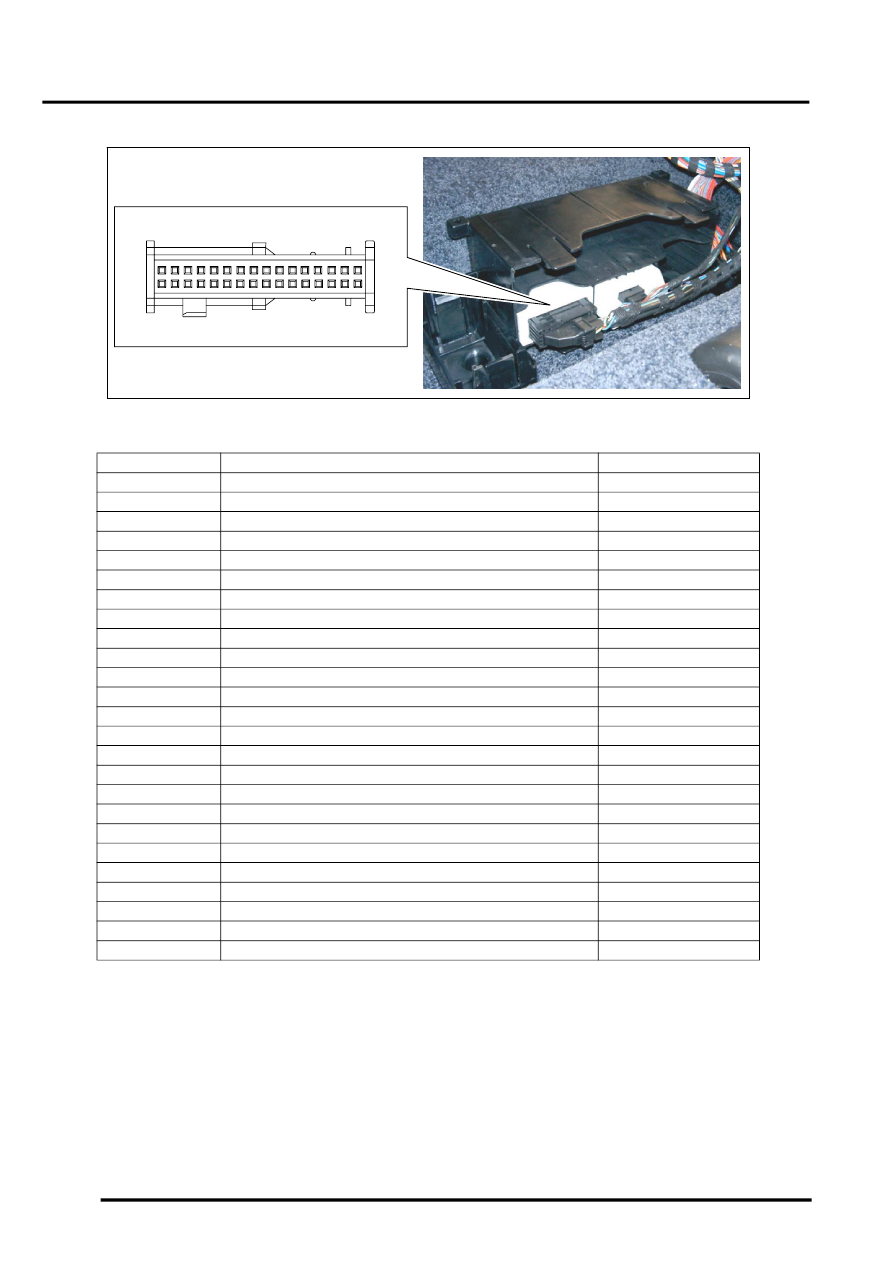

TPM ECU Harness Connector
TPM ECU Harness Connector C1537 Pin Details
Pin No.
Description
Input/Output
1
K bus
Input/Output
2
Not used
–
3
TPM switch
Input
4
Not used
–
5
Front LH TPM antenna
6
Front LH TPM antenna screen
–
7
Front RH TPM antenna
8
Rear LH TPM antenna
9
Rear LH TPM antenna screen
–
10
Rear RH TPM antenna
11 to 13
Not used
–
14
TPM switch
Output
15
Battery power supply
Input
16
Ground
–
17
Rapid tyre deflation signal
Output
18 to 20
Not used
–
21
Front LH TPM antenna
22
Front RH TPM antenna screen
–
23
Front RH TPM antenna
24
Rear LH TPM antenna
25
Rear RH TPM antenna screen
–
26
Rear RH TPM antenna
27 to 30
Not used
–
31
Ignition power supply
Input
32
Not used
–
M86 6095
17
1
32
16
C1537
