L322 Range Rover System Description and Operation
ENGINE - V8
12-2-8
DESCRIPTION AND OPERATION

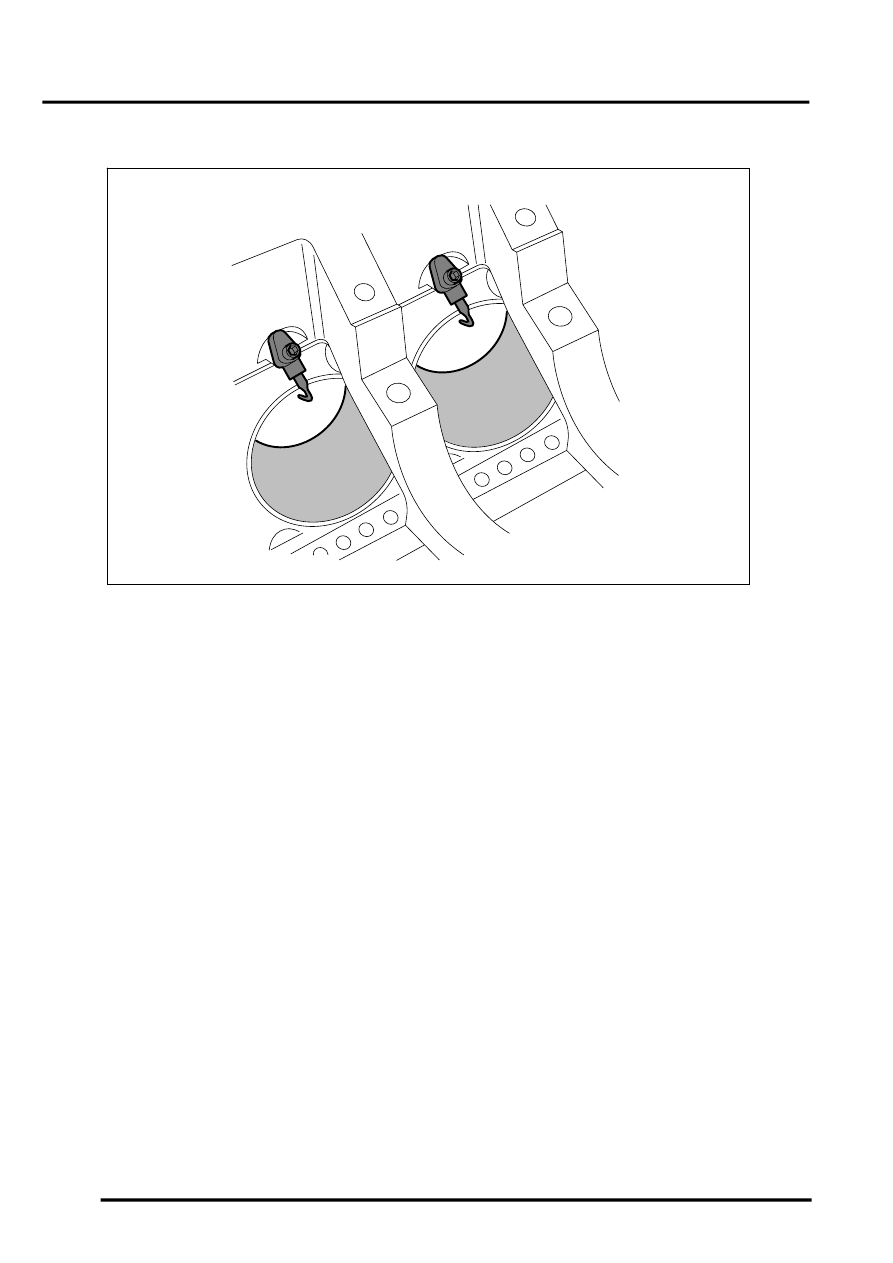

Piston Lubrication Jets
Hook-type nozzles are connected directly into an oil gallery in the crankcase and secured by two screws.
The jets provide lubrication to the cylinder walls, and to the piston underskirt for cooling the pistons and lubricating
the gudgeon pins and small-end bearings.
M12 7843
