L322 Range Rover System Description and Operation
ENTERTAINMENT AND INFORMATION SYSTEMS
DESCRIPTION AND OPERATION 86-8-23

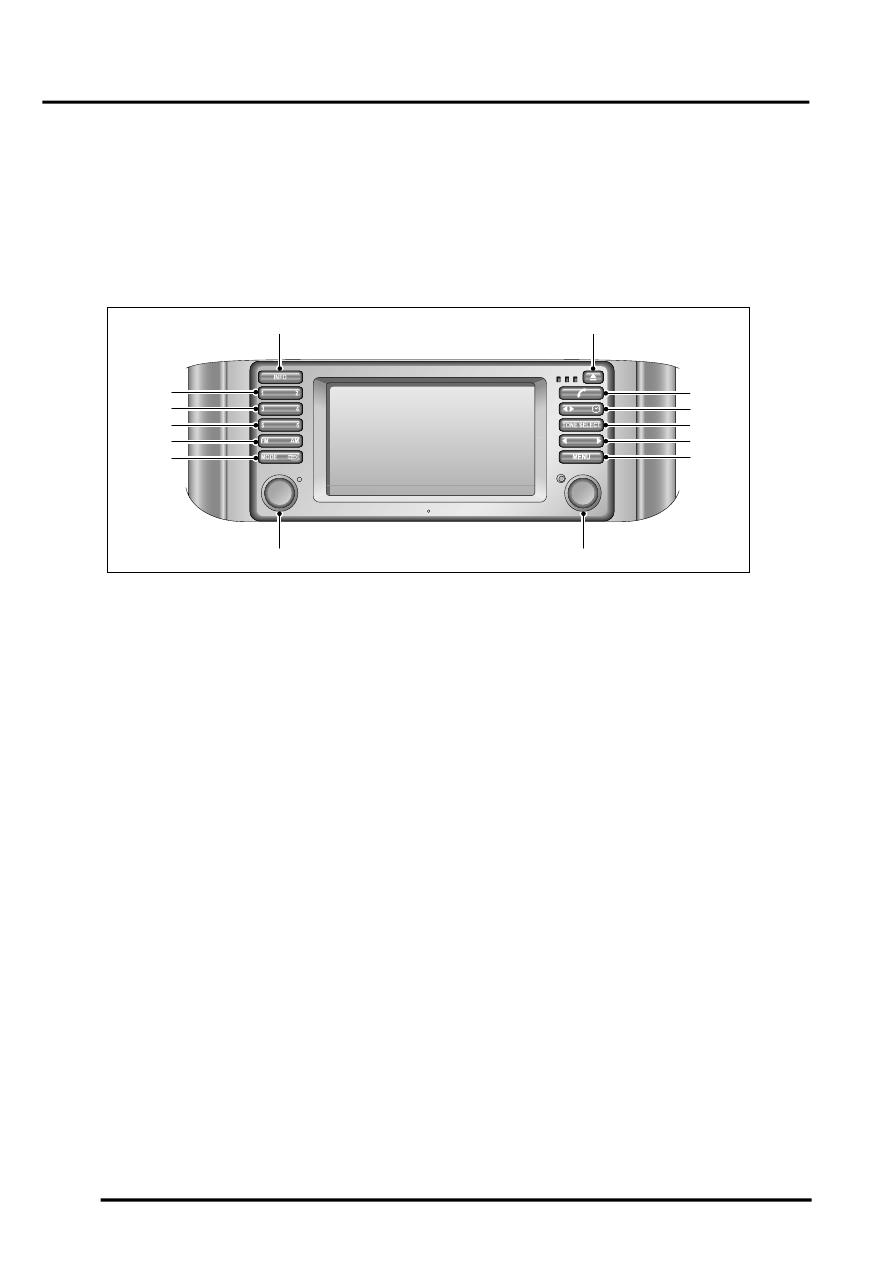

MFD Harness Connector C0815 Pin Details
MFD Harness Connector C0816 Pin Details
Pin No.
Description
Input/Output
1
Red video signal
Input
2
Red video ground
–
3
Green video signal
Input
4
Green video ground
–
5
Blue video signal
Input
6
Blue video ground
–
8
Permanent power supply from battery
Input
Pin No.
Description
Input/Output
1
Interior illumination
Input
2
Ground
–
3
LH audio positive
Output
4
LH audio negative
Output
5
Not used
–
6
I bus
Input/Output
7
Permanent power supply from battery
Input
8
Not used
–
9
RH audio negative
Output
10
RH audio positive
Output
11 and 12
Not used
–
