LIGHTING

DESCRIPTION AND OPERATION 86-2-15

The halogen headlamps use a complex surface reflector for both the dip and main beam lighting units. This type of
reflector is divided into separate parabolic segments, with each segment having a different focal length. The reflector
segments differ between the dip and main beam lamps to produce the correct beam 'throw' for each lamp.

Both the dip and main beam bulbs are quartz halogen, with a rating of 55W. The bulbs are retained in the headlamp
unit with conventional wire retaining clips.

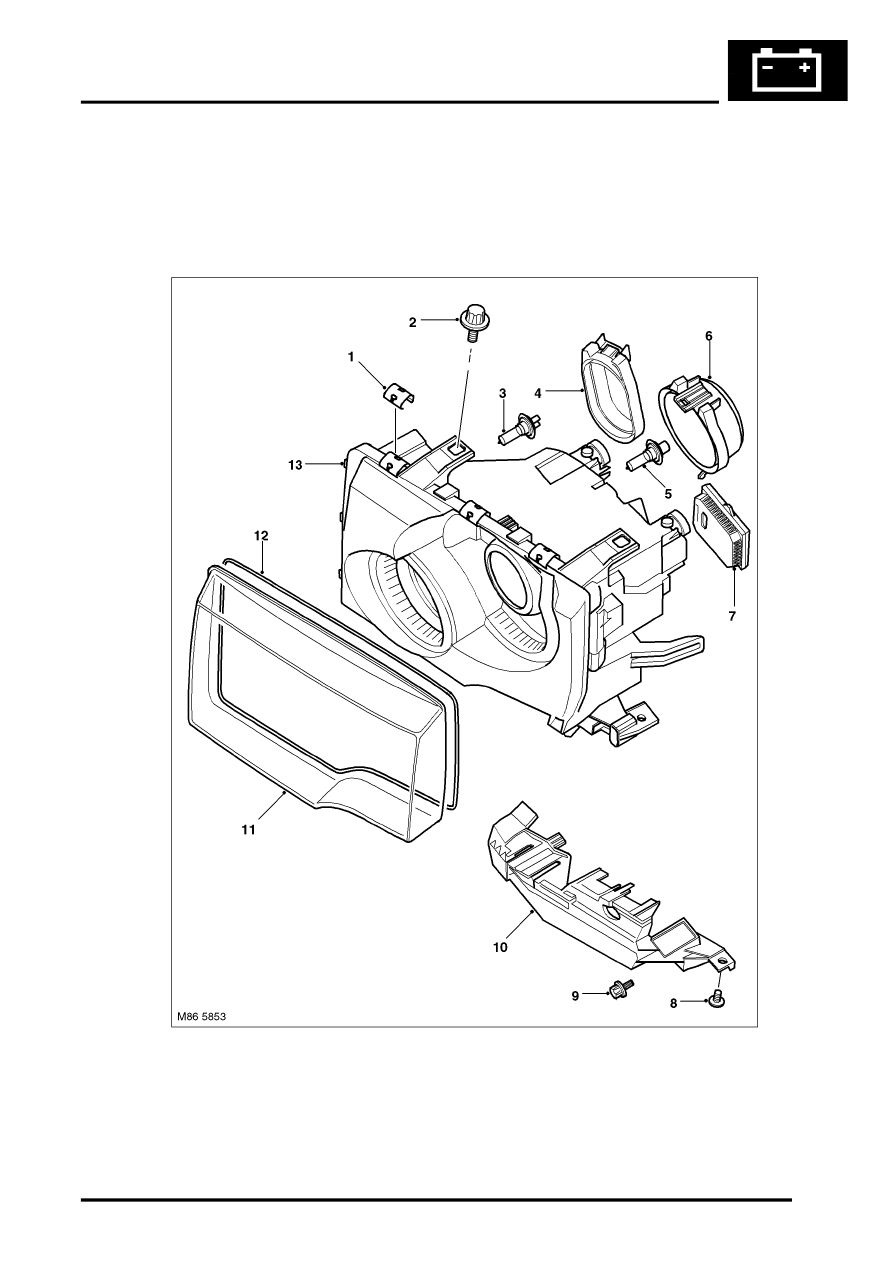

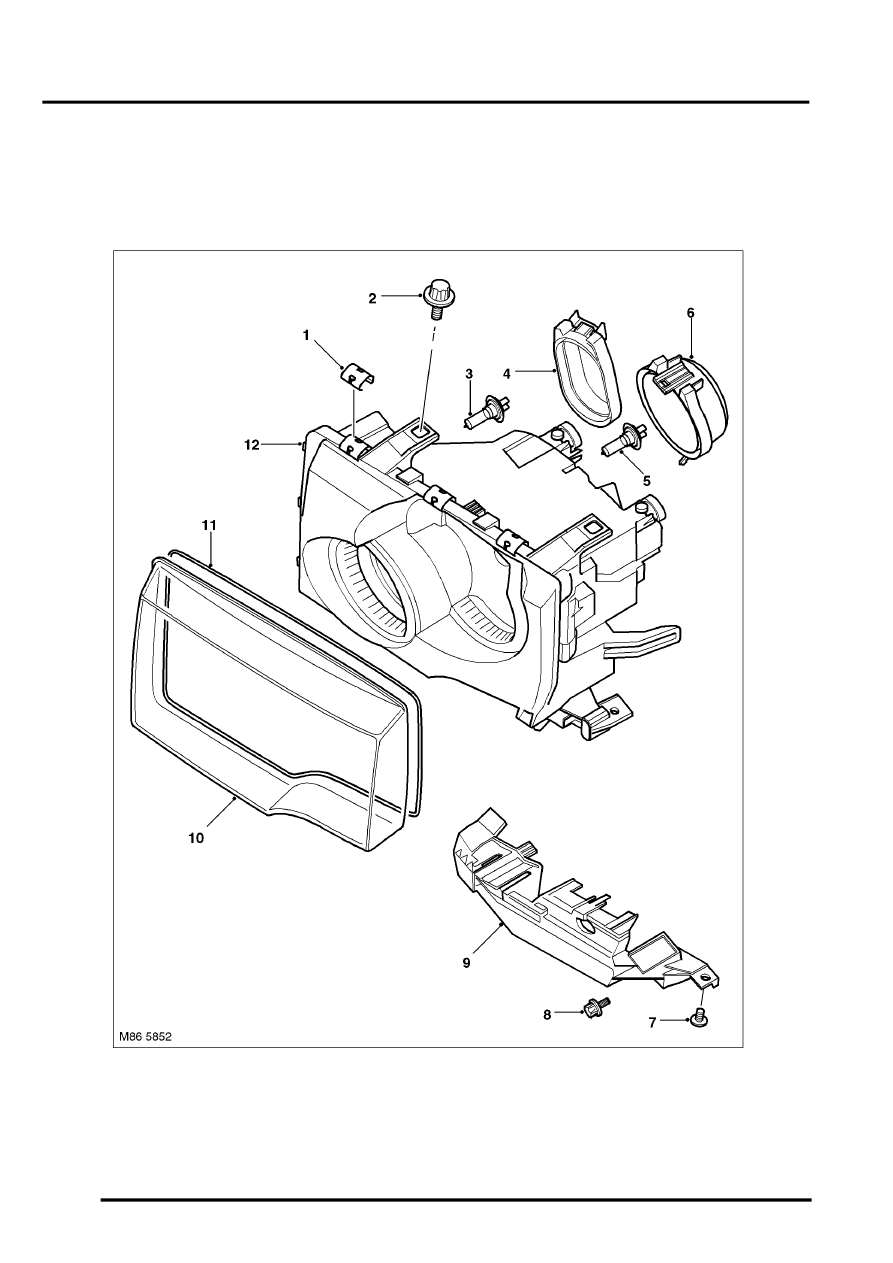

Bi-xenon Headlamps

Lens retaining clip
Bolt – headlamp assembly to front panel
Halogen bulb 55W – main beam
Main beam bulb access cover
Xenon bulb – dip/main beam
Xenon bulb access cover
Xenon control unit

Bolts – headlamp mounting bracket
Screw

10 Headlamp mounting bracket
11 Lens
12 Gasket
13 Headlamp assembly
