L322 Range Rover System Description and Operation
RESTRAINT SYSTEMS
DESCRIPTION AND OPERATION
75-11

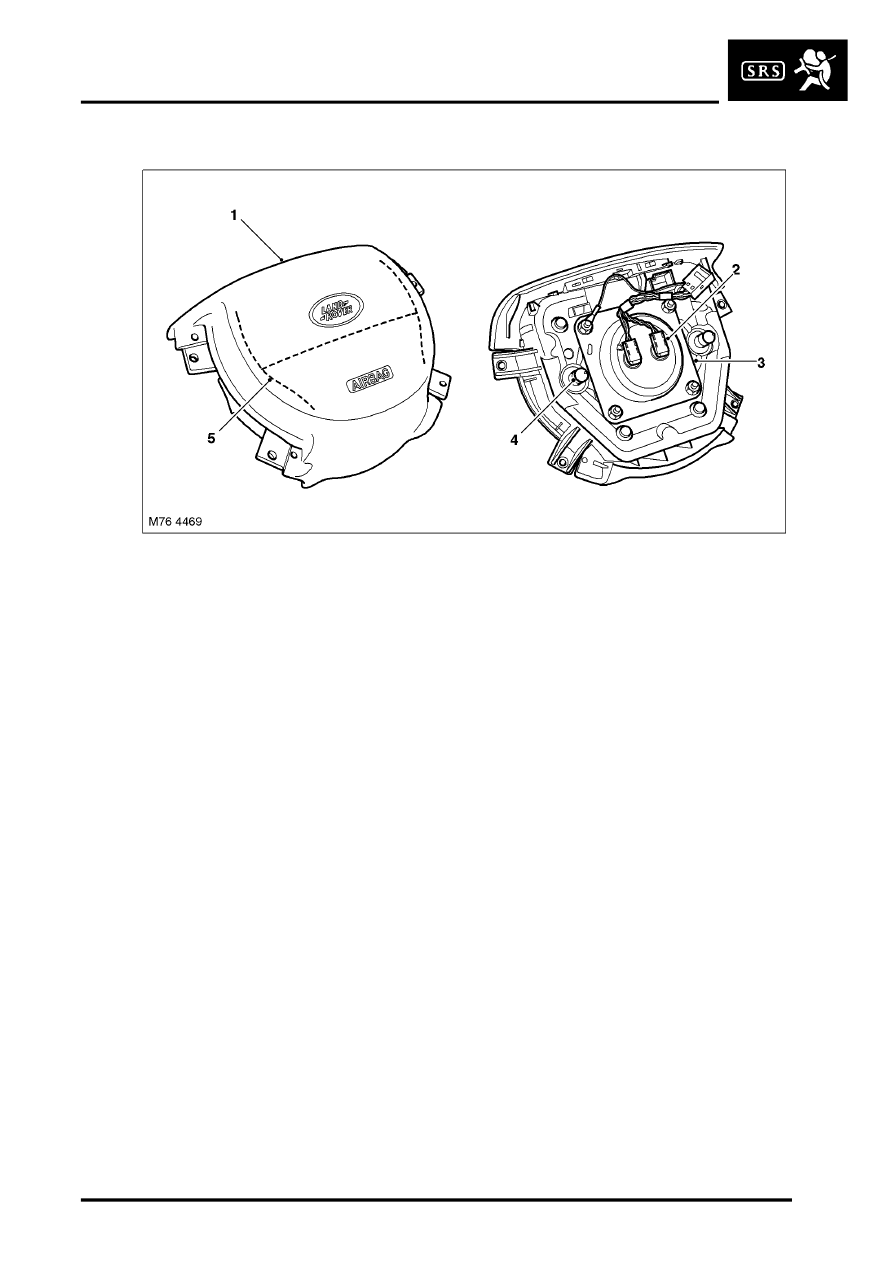

Driver Airbag
1 Cover
2 Electrical connector
3 Housing
4 Securing pins
5 Etched lines
The driver airbag is integrated into the centre pad of the steering wheel and held in place by two securing pins that
locate in latches on the steering wheel boss.
The airbag unit has two gas generators installed side by side, with separate electrical connectors attached to the squib
of each gas generator.
Lines etched into the inner surface of the cover provide weak points that split open in a controlled manner when the
airbag deploys.
