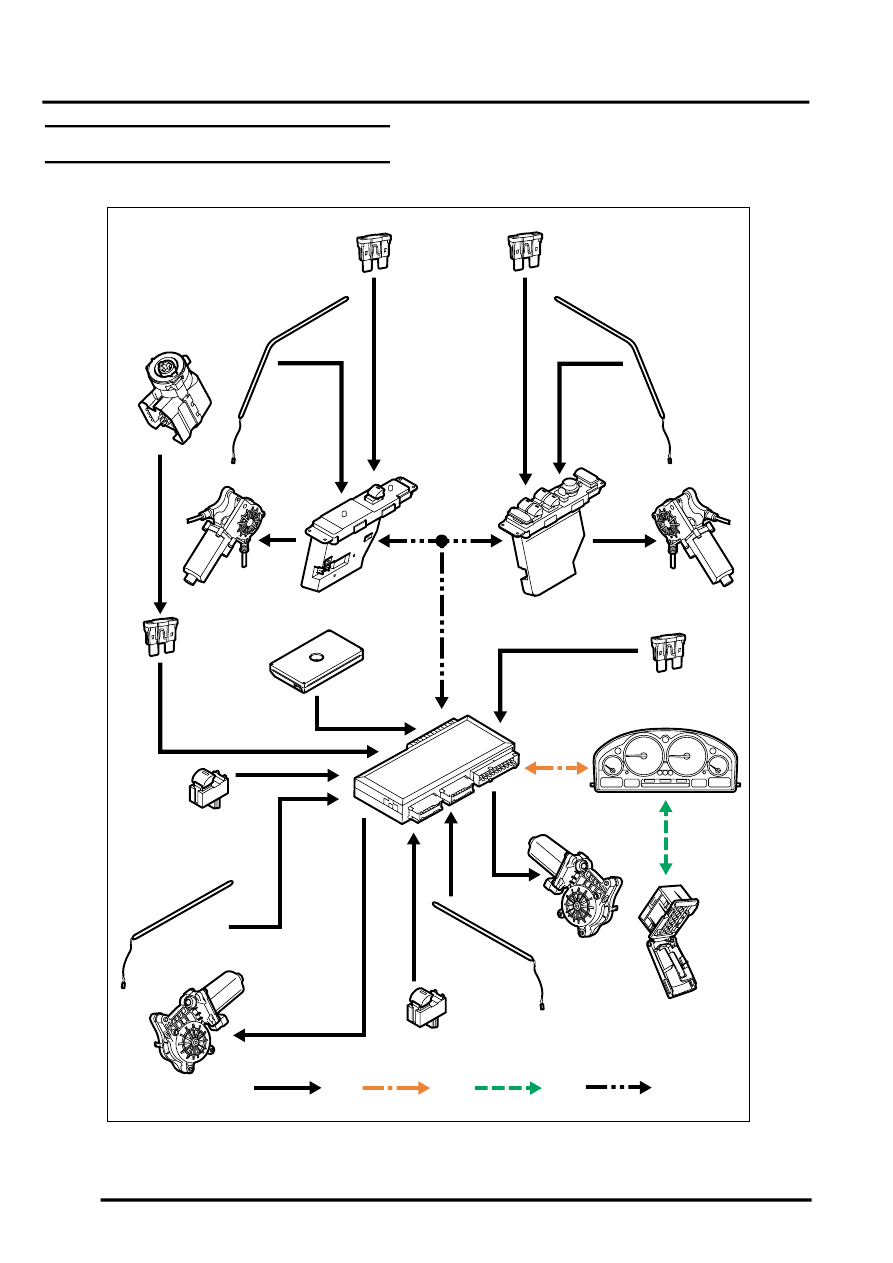

WINDOWS

DESCRIPTION AND OPERATION

86-6-7

Ignition switch
Front passenger window anti-trap sensor
Fuse 24, passenger compartment fusebox
Fuse 11, passenger compartment fusebox
Driver window anti-trap sensor
Driver door
Driver window motor
Fuse 60, passenger compartment fusebox
Instrument pack

10 Diagnostic socket
11 RH rear window motor
12 RH rear window anti-trap sensor
13 RH rear window switch
14 LH rear window motor
15 LH rear window anti-trap sensor
16 LH rear window switch
17 BCU
18 RF receiver
19 Fuse 41, passenger compartment fusebox
20 Front passenger door
21 Front passenger window motor
