L322 Range Rover Service Procedures
ENGINE - V8
12-2-86 OVERHAUL

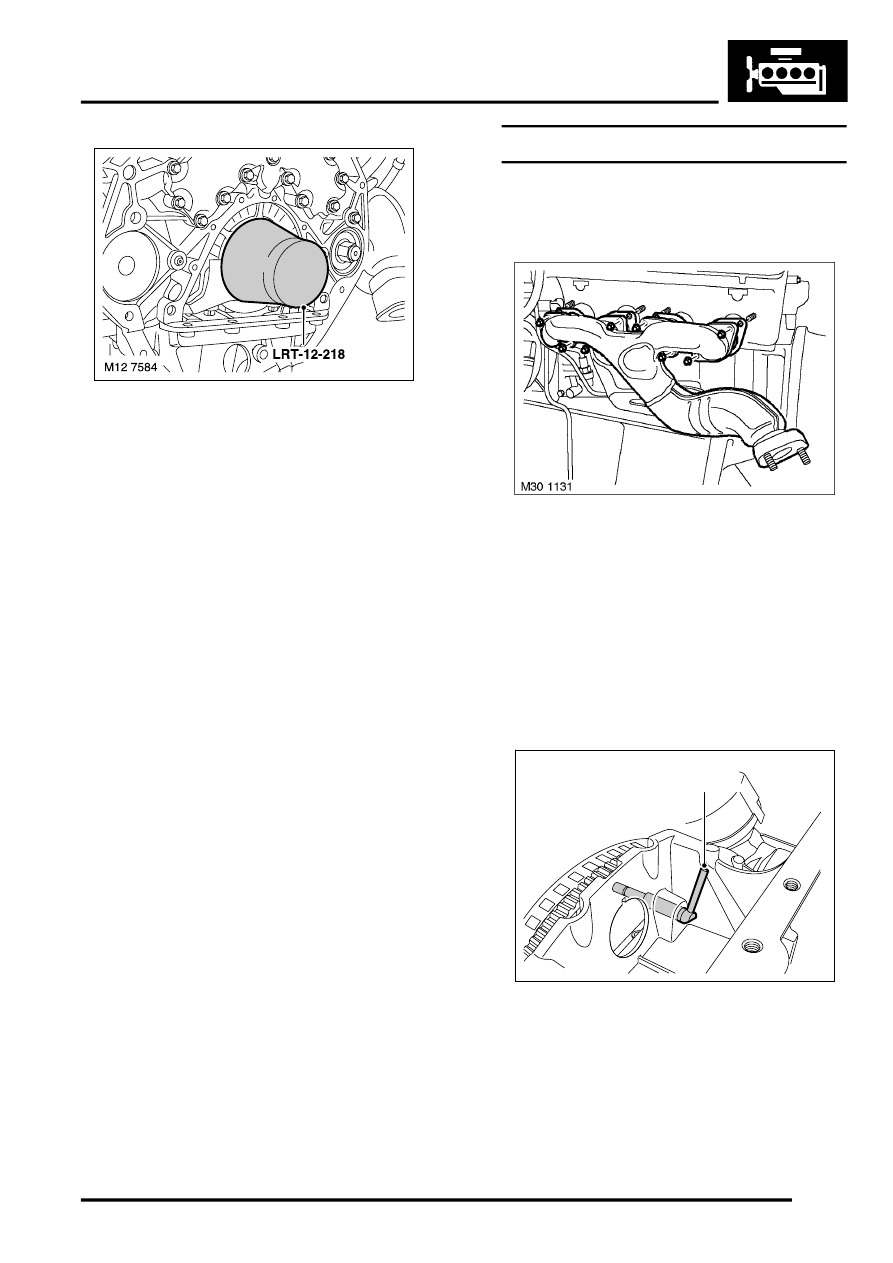

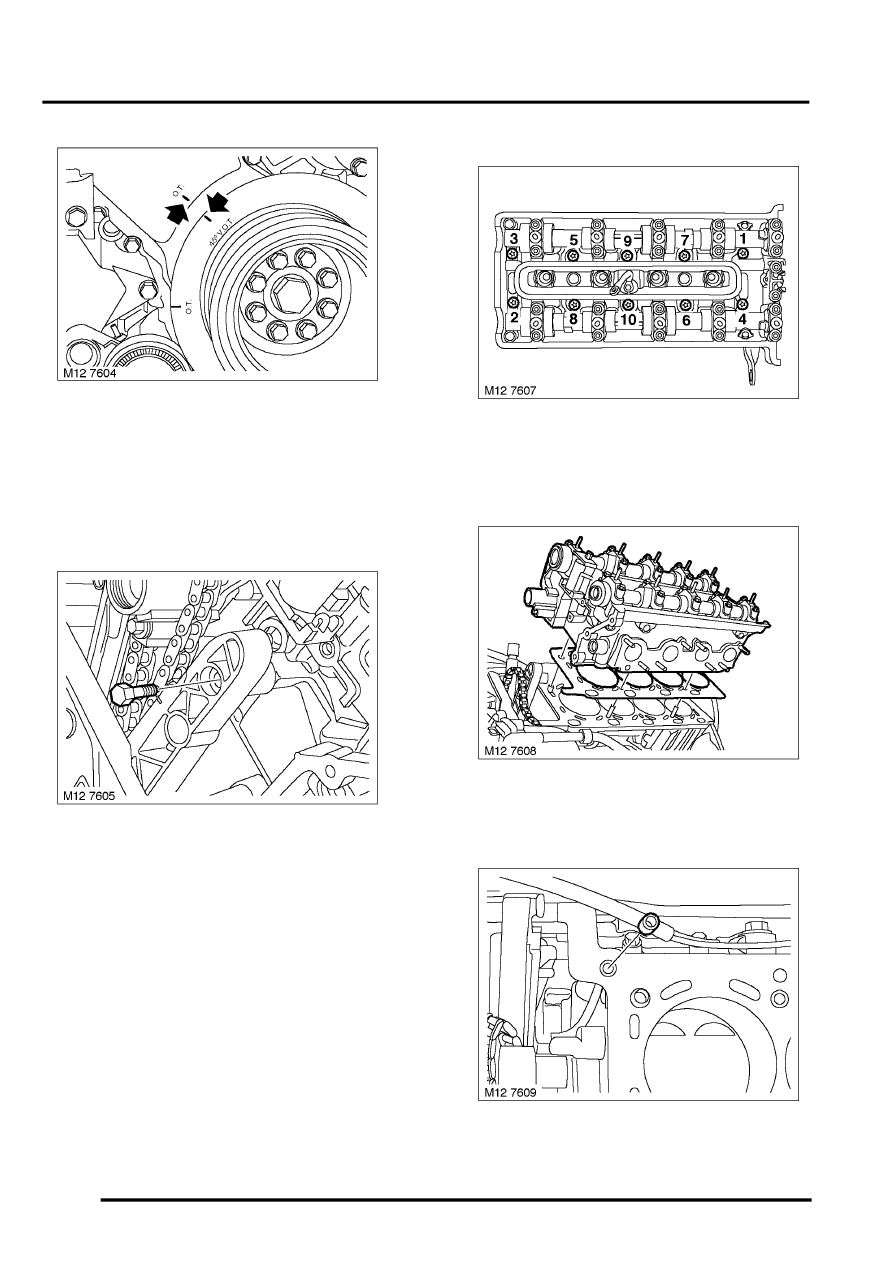

5. Rotate engine crankshaft pulley anti-clockwise
to align the 45
°
before TDC timing mark.
NOTE: Raise timing chain and hold under
tension while turning crankshaft pulley.
6. Remove LRT-12-223/6, LRT-12-223/5, LRT-
12-223/3 and LRT-12-223/4 from LH cylinder
head camshafts.
7. Remove bolt securing LH timing chain guide
rail to LH cylinder head.
Disassembly
1. Working in the sequence shown, progressively
loosen 10 cylinder head bolts.
2. Discard 10 cylinder head bolts and remove 10
cylinder head bolt washers.
3. With assistance, remove cylinder head
assembly.
4. Discard cylinder head gasket.
5. Discard 'O' ring from cylinder block to LH
cylinder head mating face.
