L322 Range Rover Service Procedures
ENGINE - V8
12-2-16 REPAIRS
7. Remove 7 nuts securing ignition coils to
camshaft cover. Remove 4 ignition coils.
8. Discard ignition coil cover gasket.
9. Remove dipstick tube.
10. Remove 6 nuts and 3 bolts securing camshaft
cover to cylinder head. Remove camshaft
cover, discard 2 gaskets and 11 sealing
washers.
Refit
1. Clean camshaft cover and mating face of
cylinder head.
2. Apply sealant , Part No. STC 50550 to areas
illustrated.
3. Fit 2 new gaskets and 11 new sealing washers
to camshaft cover and fit to cylinder head.
4. Fit dipstick tube.

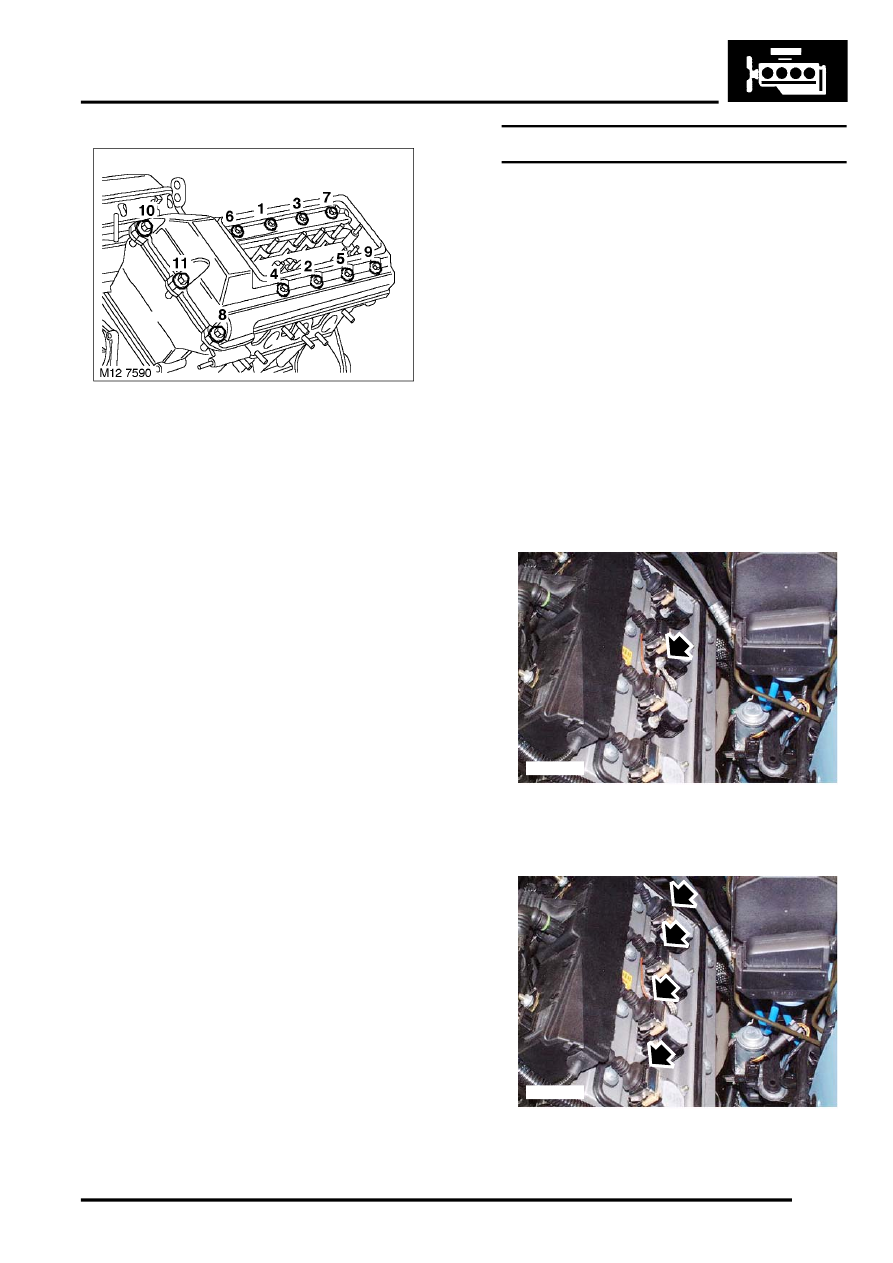

5. Fit 6 nuts and 3 bolts securing camshaft cover
and progressively tighten in sequence shown to
10 Nm (7 lbf.ft).
6. Fit 4 ignition coils.
7. Fit 7 nuts securing ignition coils to camshaft
cover and tighten to 4 Nm (3 lbf.ft).
8. Fit new ignition coil cover gasket.
9. Connect multiplugs to ignition coils.
10. Connect earth lead to camshaft cover and
tighten nut to 4 Nm (3 lbf.ft).
11. Fit RH ignition coil cover.
