L322 Range Rover Service Procedures
ENGINE - V8
12-2-28 REPAIRS

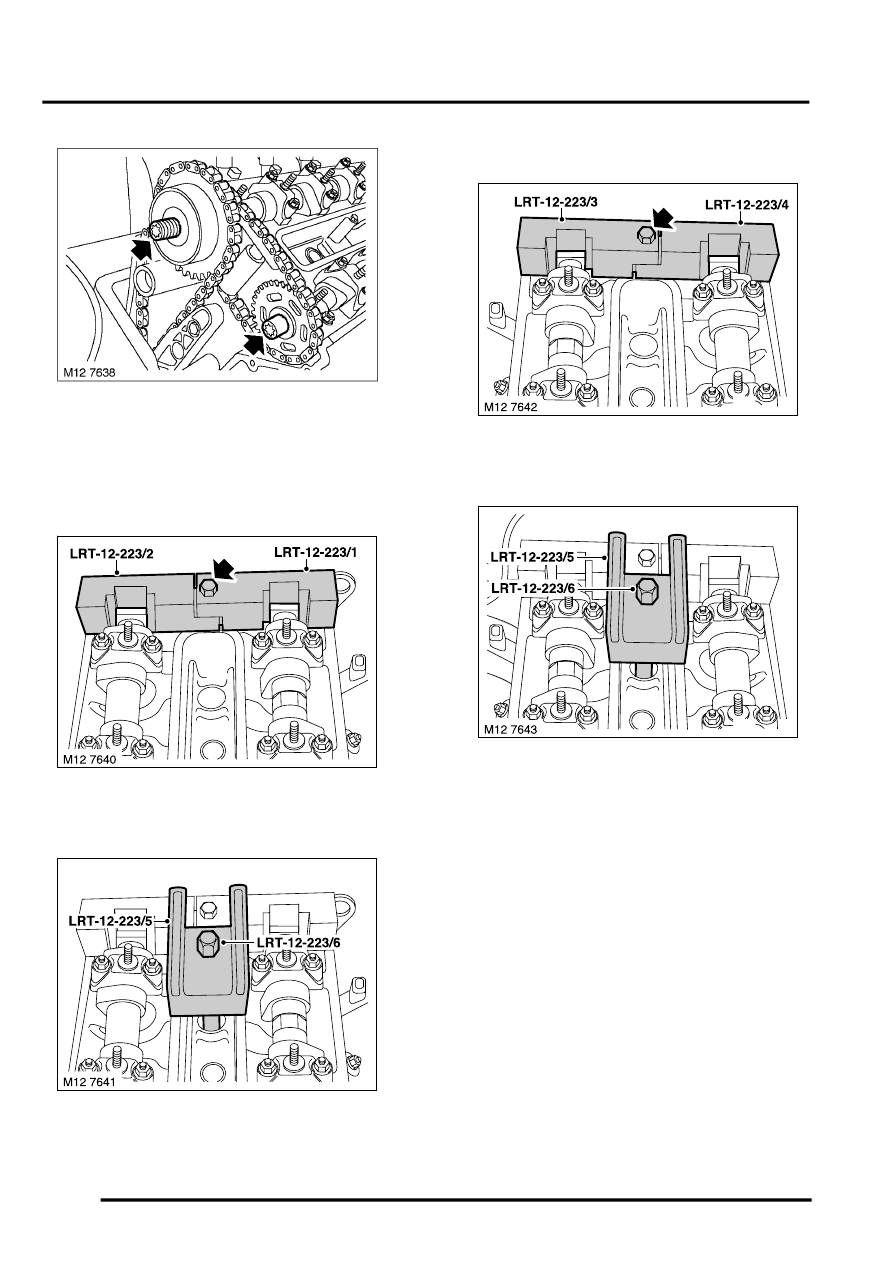

18. Loosen 2 Torx bolts securing LH VCC unit and
LH exhaust camshaft sprocket 1/2 a turn.
NOTE: Thread is left handed.
19. Loosen bolt securing LRT-12-223/2 to LRT-12-
223/1.
20. Fit LRT-12-223/2 and LRT-12-223/1 to rear of
RH camshafts and tighten bolt securing tools.
21. Fit LRT-12-223/5, LRT-12-223/6 to RH cylinder
head and tighten LRT-12-223/6 into spark plug
thread.
22. Loosen bolt securing LRT-12-223/4 to LRT-12-
223/3.
23. Fit LRT-12-223/4 and LRT-12-223/3 to rear of
LH camshafts and tighten bolt securing tools.
24. Fit LRT-12-223/5, LRT-12-223/6 to LH cylinder
head and tighten LRT-12-223/6 into spark plug
thread.
