L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
REPAIRS
75-31
Airbag module - side impact - front door
- deployment - off vehicle
$% 76.74.34
These guidelines are written to aid authorised
personnel to carry out the safe disposal of airbag
modules.
Deploy
WARNING: It is imperative that before any
work is undertaken on the SRS system, the
appropriate information is read thoroughly.
1. Make the SRS system safe.
Supplementary Restraint System (SRS)
Precautions.
2. Remove airbag from vehicle.
Airbag module - side impact - front door.
3. Check condition of deployment tool LRT-86-
003 and associated fly leads.

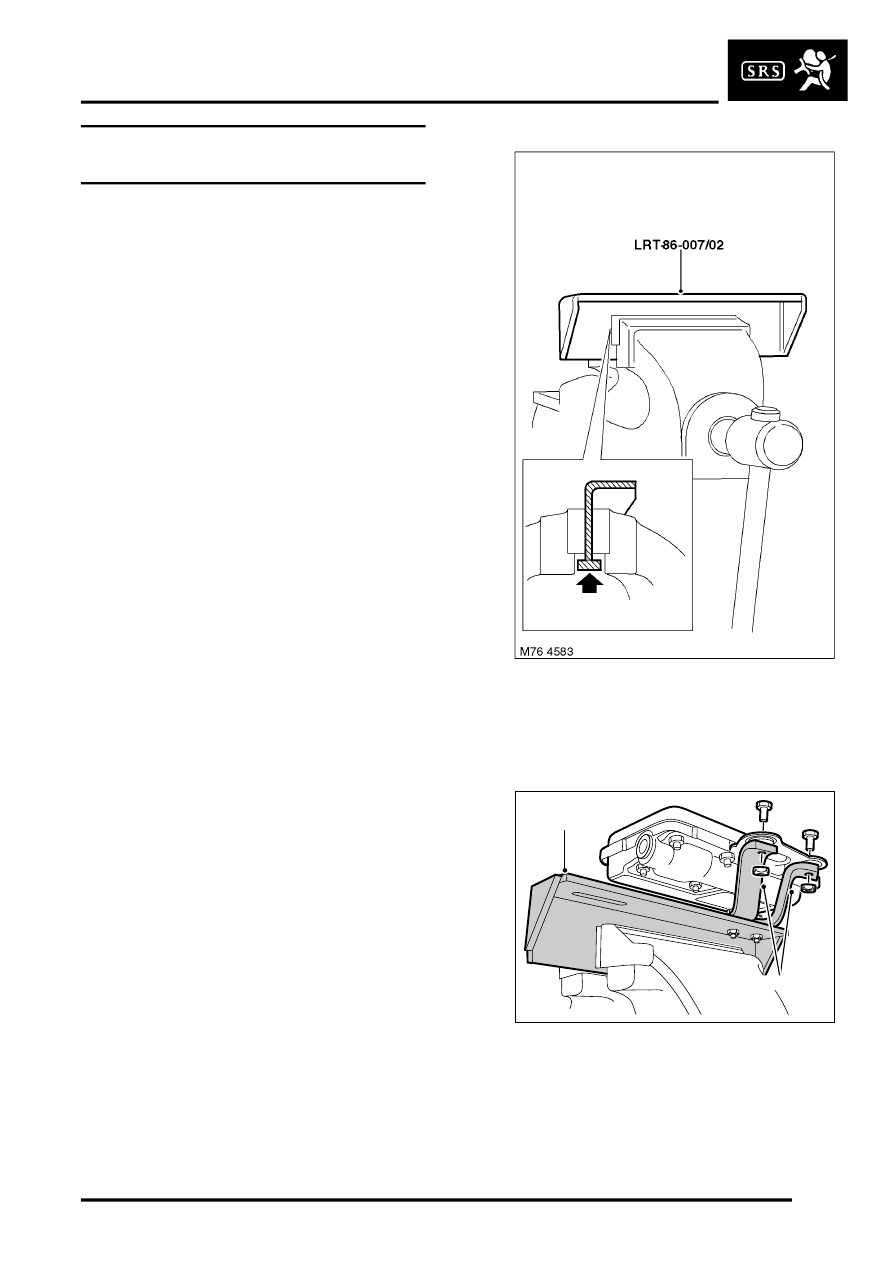

4. Position LRT-86-007/02 in vice, ensuring that
vice jaws grip tool above the bottom flange to
prevent possibility of tool being forced upwards
during detonation. Tighten vice.
5. Fit and secure 2 off LRT-86-007/05 to LRT-86-
007/02.
6. Fit and secure airbag to LRT-86-007/05.
LRT-86-007/05
LRT-86-007/02
M76 4595A
