The aluminium front cover assembly is secured to the engine block by five bolts and five studs and is sealed via a gasket.
The front cover also houses the crankshaft front seal.

The water pump is attached to the engine front cover assembly and is secured and sealed, to the front cover, by twelve
bolts and a gasket. A poly-vee belt drives the water pump via the crankshaft.


Oil Cooler (If Fitted) and Filter Assembly

NOTE :

Item  Part Number

Description

1

 -

Water pump assembly

2

 -

Engine front cover

3

 -

Gasket

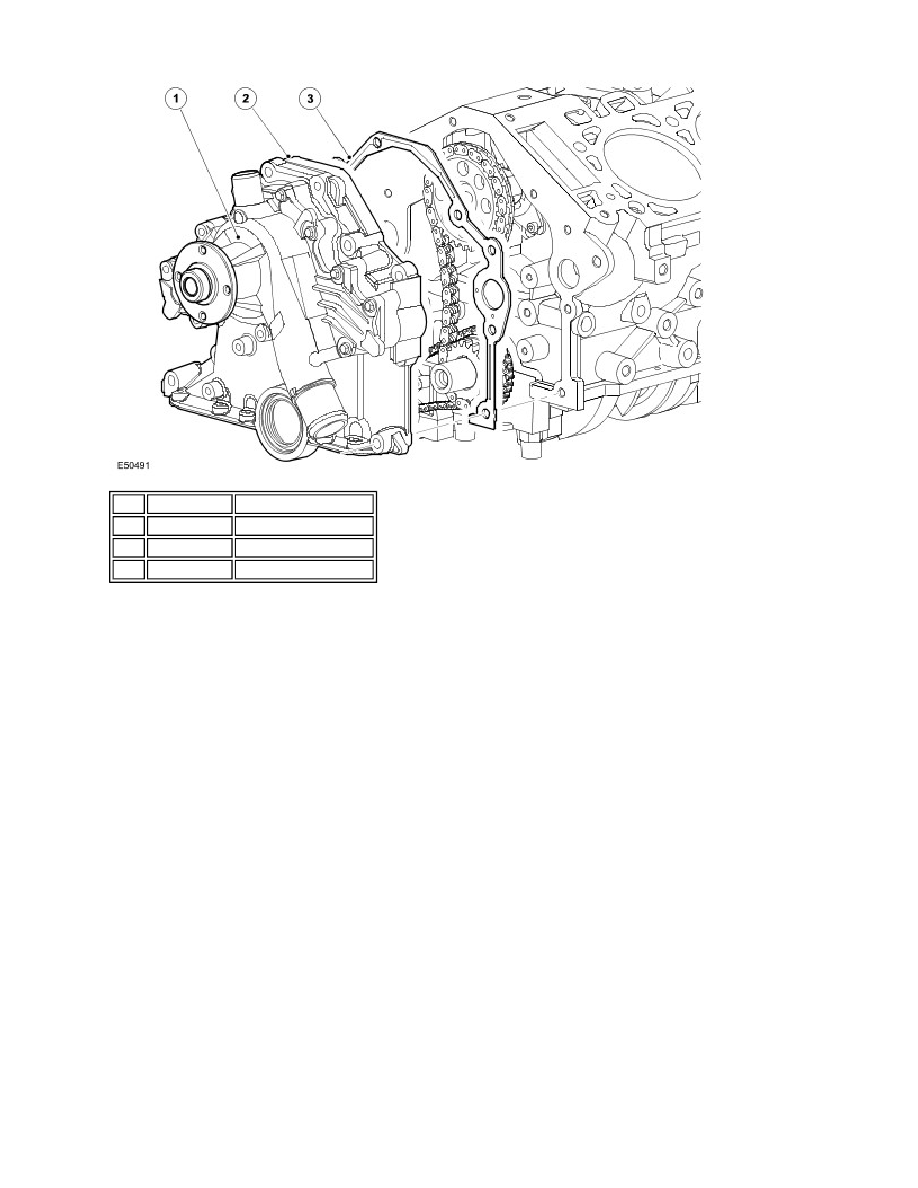

Variant with oil cooler shown.
