LR3/Disco 3
3 .

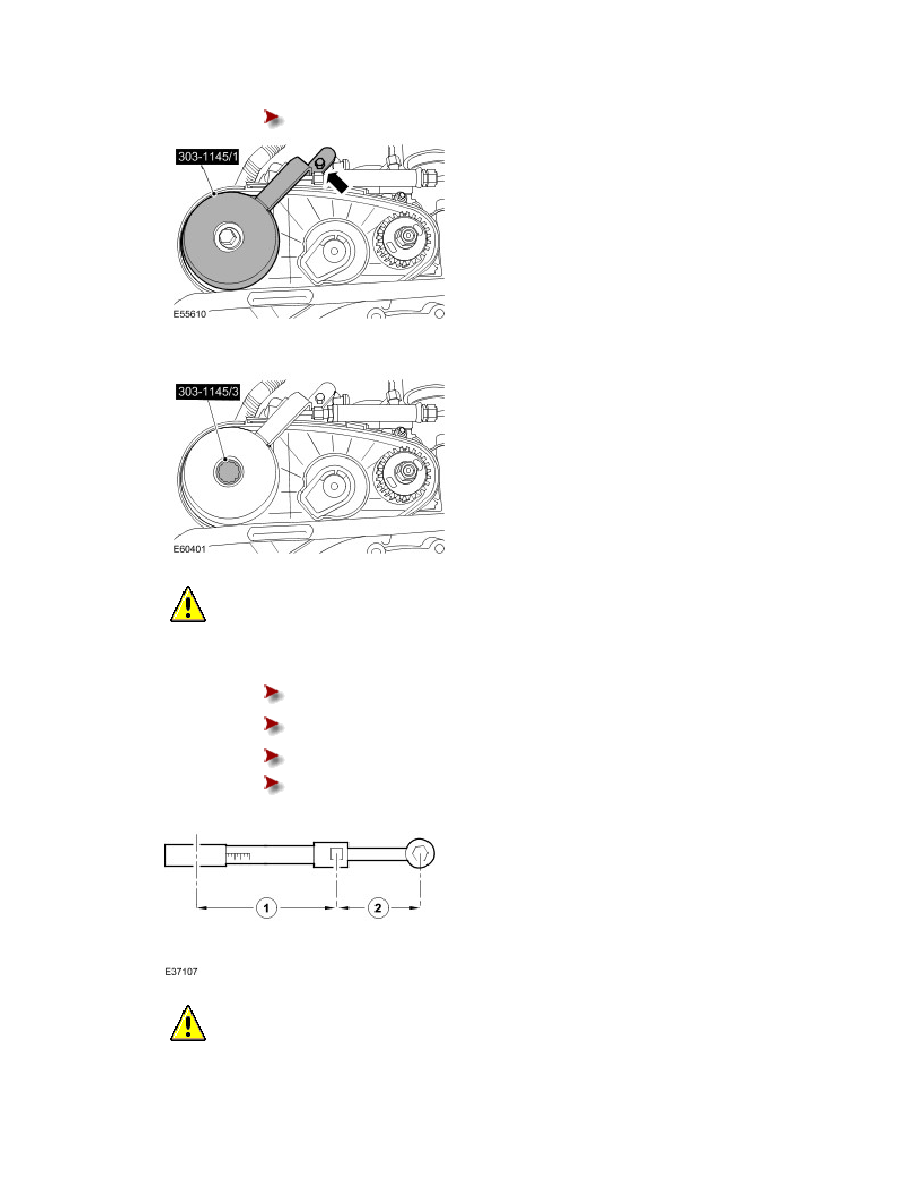

Install the special tool to the camshaft rear pulley.
Install the special tool retaining bolt.
4 .
Install the special tool to the camshaft rear pulley retaining bolt.
5 .
CAUTION: Make sure the torque wrench setting procedure is followed correctly. Failure to
follow this instruction may result in damage to the vehicle.
Calculate the setting for the torque wrench.
Stage 1: Multiply the required torque by the effective length of the torque wrench (1).
Stage 2: Add the effective length of the special tool (2) to the effective length of the torque
wrench.
Stage 3: Divide the total of stage 1 by the total of stage 2.
Stage 4: Set the torque wrench to the figure arrived at in stage 3.
6 .
CAUTION: Make sure the torque wrench setting procedure is followed correctly. Failure to
follow this instruction may result in damage to the vehicle.
Using the special tools, tighten the camshaft rear pulley retaining bolt to 40 Nm (30 lb.ft).
