LR3/Disco 3
AM (glass mounted)
FM (glass mounted)
FM diversity (glass mounted, where fitted)
TV (glass mounted, where fitted)
Multiband telephone antenna (roof mounted, where fitted)
GPS antenna (rear spoiler mounted, where fitted)
SDARS (roof mounted NAS only)
VICS antenna and beacon antenna (Japan only where fitted)

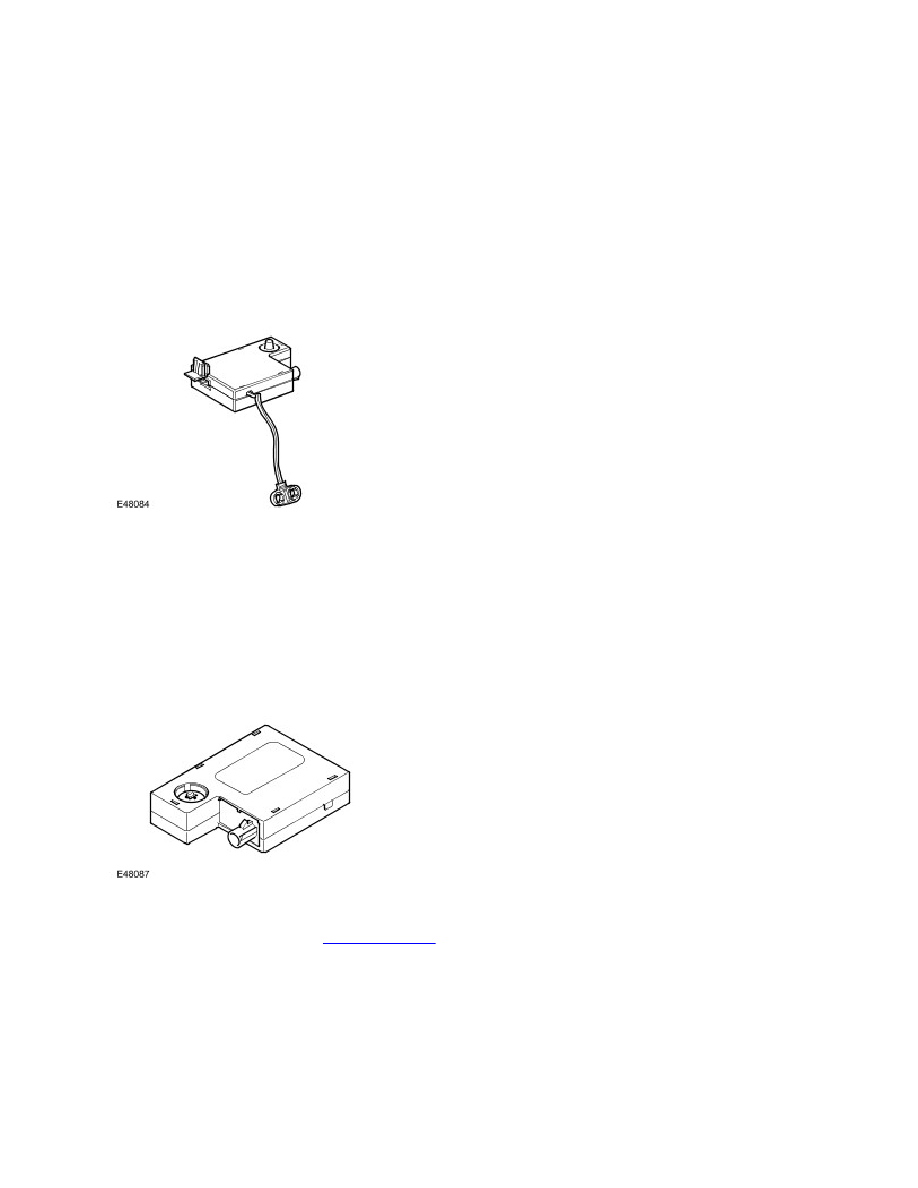

FM ANTENNAS
FM Antenna Amplifier
The AM/FM antennas are located in the side and rear widow. ON vehicles with the low line audio system the AM/FM
antenna is located in the RH rear side screen. On vehicles with a high line audio systems the system will be equipped
with FM diversity tuning. This system ensures that the strongest of two signals is used by the radio system to ensure the
best possible FM reception. The standard AM/FM antenna is screen mounted in the RH rear side window and is
connected to an antenna amplifier located above the screen. The diversity system uses the same side window antenna
and amplifier but also uses a rear heated screen element antenna and an FM antenna amplifier mounted at the top of the
rear screen in the tail gate.
TMC ANTENNA AMPLIFIER
The Traffic Message Channel (TMC) signals are received through the normal radio signals via the RDS network. The
signals are routed separately form the radio signals via a separate antenna amplifier located on the RH rear side window.
For additional information, refer to
Navigation System
(419-07 Navigation System)
GPS ANTENNA
