Installation

4 .

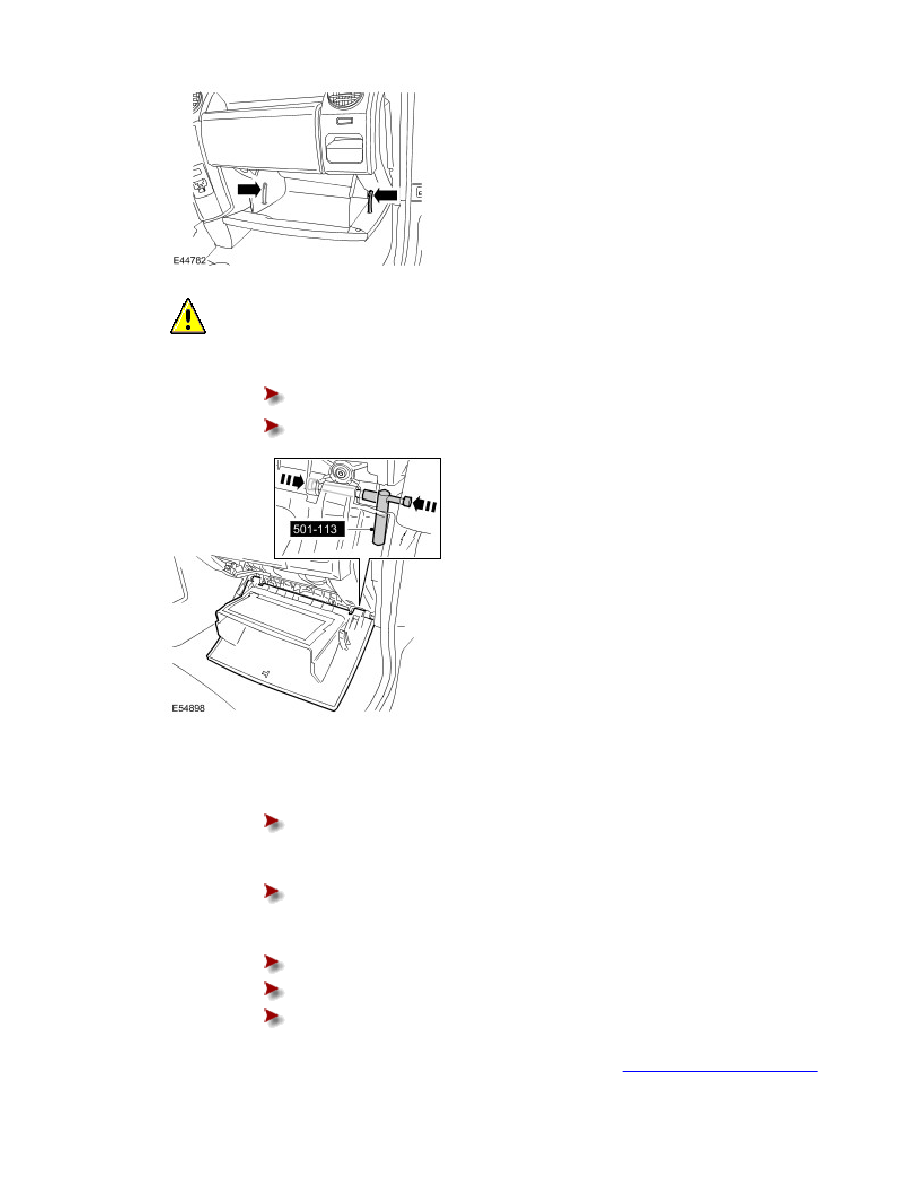

   CAUTION: If the hinge pin will not release, rotate the pin through 90 degrees to aid removal.

Using the special tool, remove the glove compartment.

Apply pressure to the head of the hinge pin and install the special tool. Remove the hinge
pin.

Repeat the above procedure for the remaining hinge pin.

1 .

  Install the glove compartment.

Install the hinge pins.

2 .

  Close the glove compartment.

Secure the latch stops.

3 .

  Install the closing trim panel.

Connect the electrical connector.

Secure the clip.

Tighten the screws.

4 .

Install the cowl side trim panel. For additional information, refer to

Cowl Side Trim Panel (76.13.27)

(Section 501-05)
