Drive Belt: Service and Repair

Accessory Drive Belt

Service Repair No - 86.10.03

Removal

1. Disconnect the battery ground cable.
2. Remove the viscous fan assembly.

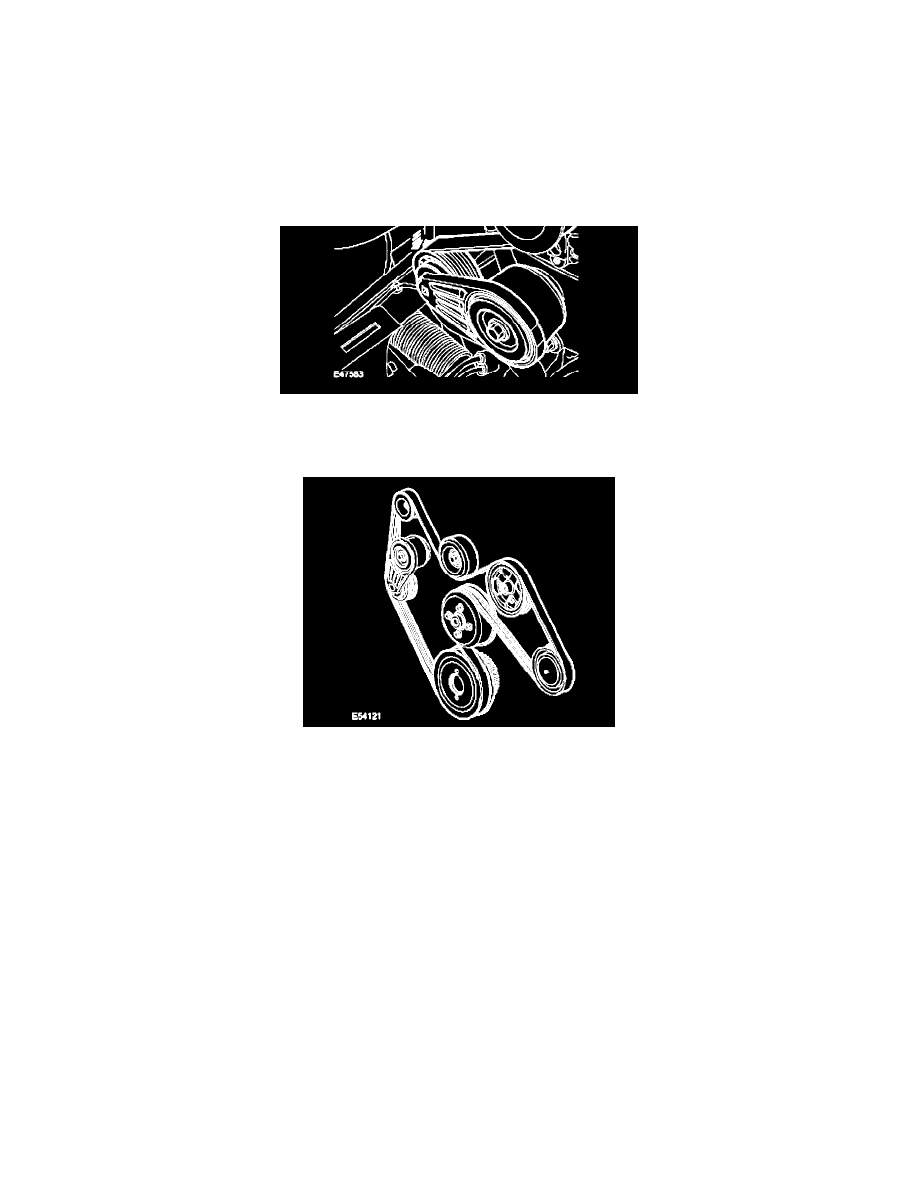

3. Release the accessory drive belt.

^

Rotate the accessory drive belt tensioner counterclockwise.

4. Remove the accessory drive belt.

Installation

1. To install, reverse the removal procedure.

^

Clean and inspect the drive pulleys for damage.

2. Connect the battery ground cable.
