LR3 (LA) V6-4.0L (2006)
Engine Oil: Service and Repair
Engine Oil Draining and Filling
Service Repair No - 12.60.05
1. Disconnect the battery ground cable.
Specifications
2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
3. Remove the engine undershield.
Engine Undershield

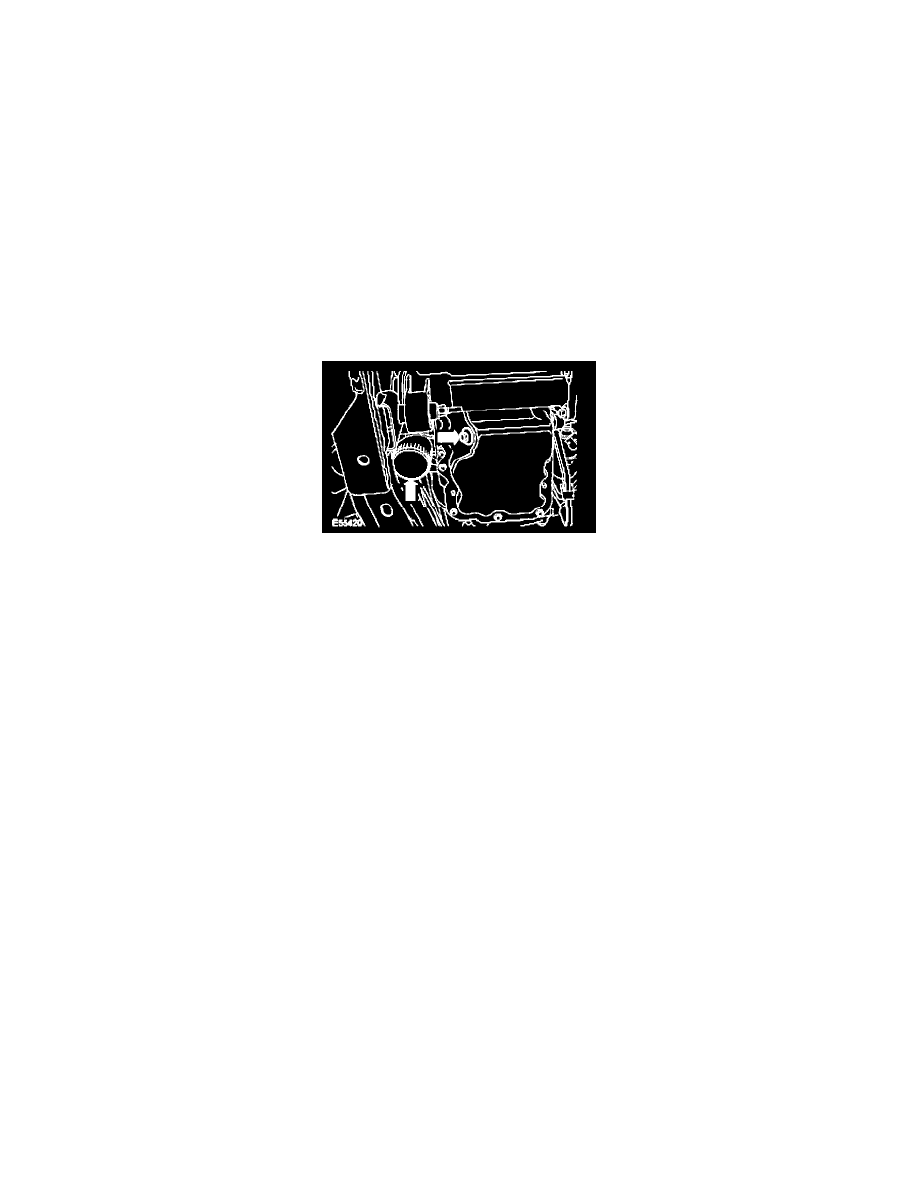

4. Remove the oil pan drain plug.
^
Position a container to collect the fluid.
^
Discard the oil drain plug seal.
5. Remove the oil filter.
^
Position a container to collect the fluid.
^
Discard the oil filter.
6. To install, reverse the removal procedure.
^
Lubricate the oil filter seal with clean engine oil and tighten to 18 Nm (13 ft. lbs.).
^
Install a new seal.
^
Tighten the drain plug to 25 Nm (18 ft. lbs.).
7. Fill the engine with oil.
8. Check and top-up the engine oil.
