LR3 (LA) V8-4.4L (2009)
/v8-4.4l/Page-1869001.png)
Trunk / Liftgate Interior Trim Panel: Service and Repair
Liftgate Trim Panel
Service Repair No - 76.34.11
Removal

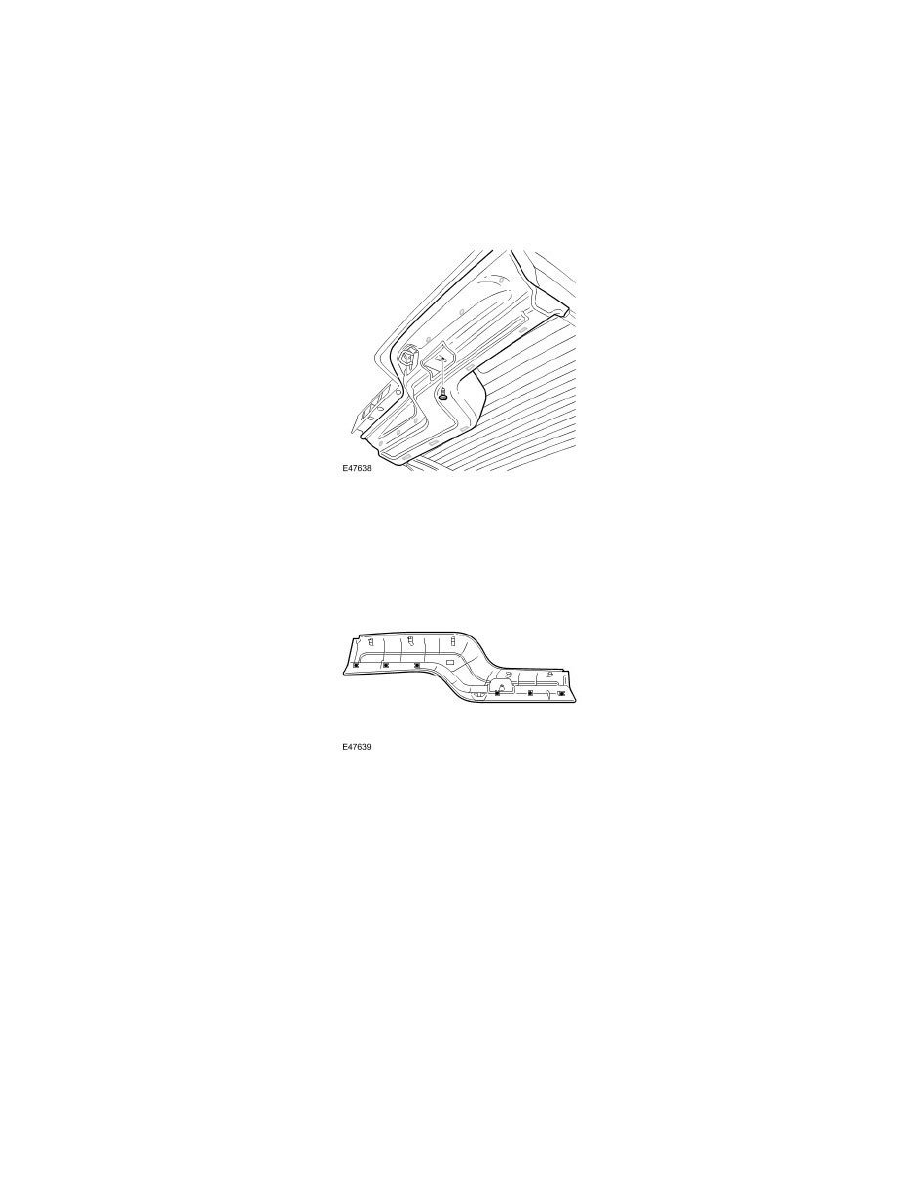

1. Remove the liftgate trim panel.
^
Remove the screw.
^
Release the 11 clips.
2. Remove the liftgate striker trim panel.
3. NOTE: Do not disassemble further if the component is removed for access only.
Remove 6 clips from the liftgate trim panel.
Installation
1. To install, reverse the removal procedure.
