Power Interrupt Connector/Switch|Locations|Page 4664 > < Central Junction Box (CJB)|Page 4659

LR3 (LA) V8-4.4L (2009)

  • Power and Ground Distribution
  • Sensors and Switches - Power and Ground Distribution
  • Power Interrupt Connector/Switch
  • Component Information
  • Locations

Page 1
background image

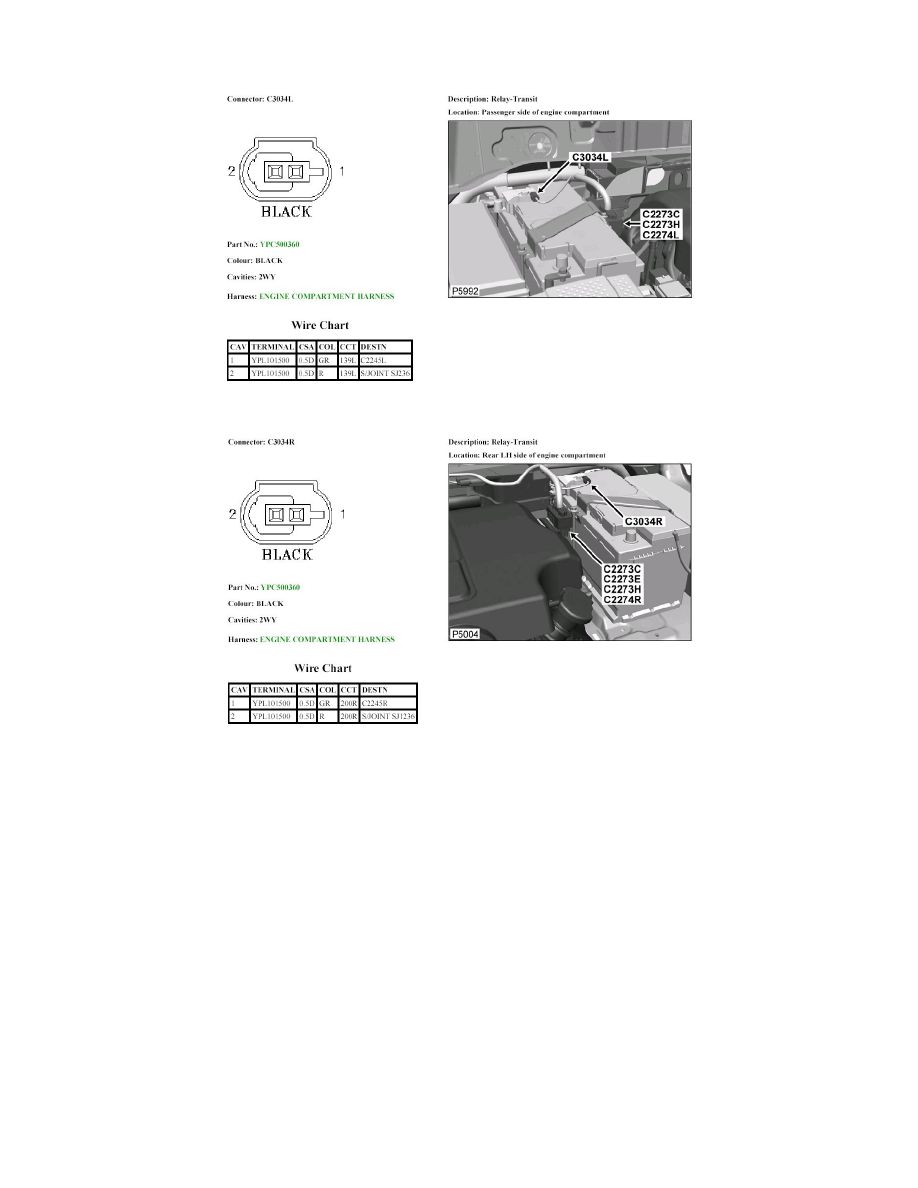

Power Interrupt Connector/Switch: Locations

Relay-Transit

C3034L

C3034R

  • Power and Ground Distribution
  • Sensors and Switches - Power and Ground Distribution
  • Power Interrupt Connector/Switch
  • Component Information
  • Locations

Power Interrupt Connector/Switch|Locations|Page 4664 > < Central Junction Box (CJB)|Page 4659
