LR3 (LA) V8-4394cc 4.4L (2005)
/v8-4394cc_4.4l/Page-2735001.png)
Splash Guard: Service and Repair
Engine Undershield
Service Repair No - 76.10.50
Removal
1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2. CAUTION: Note the special washer.

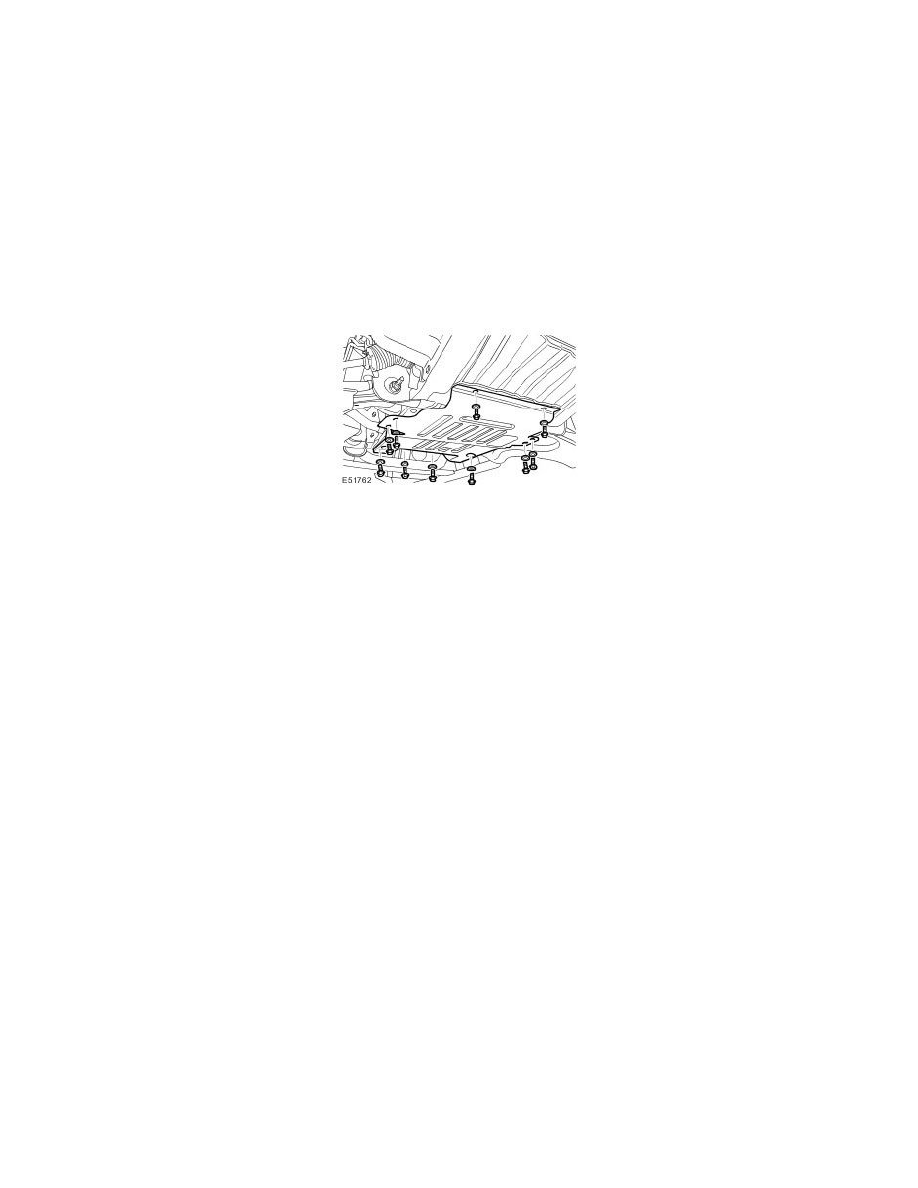

Remove the engine undershield.
^
Remove the 10 bolts.
Installation
1. To install, reverse the removal procedure.
^
Tighten the bolts to 62 Nm (46 lb.ft).
